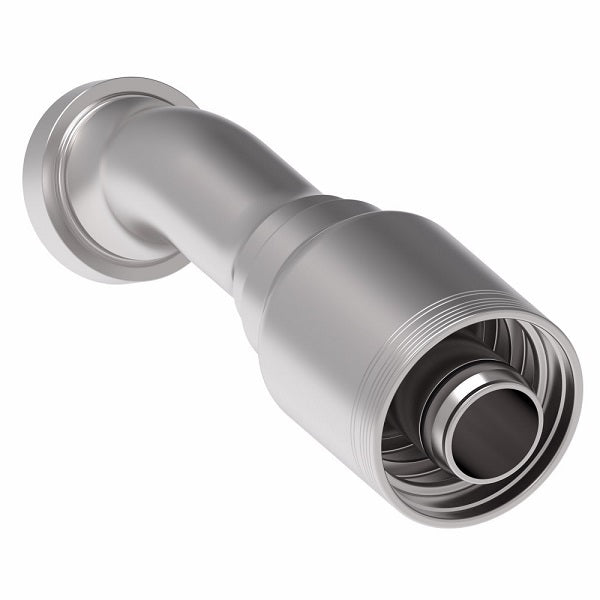

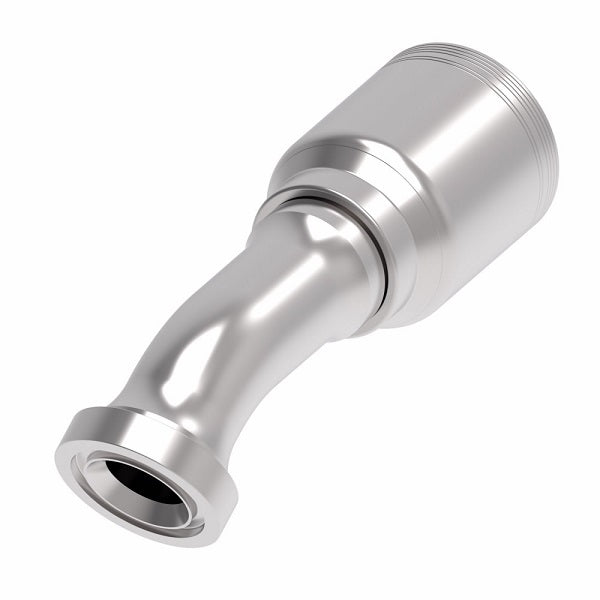

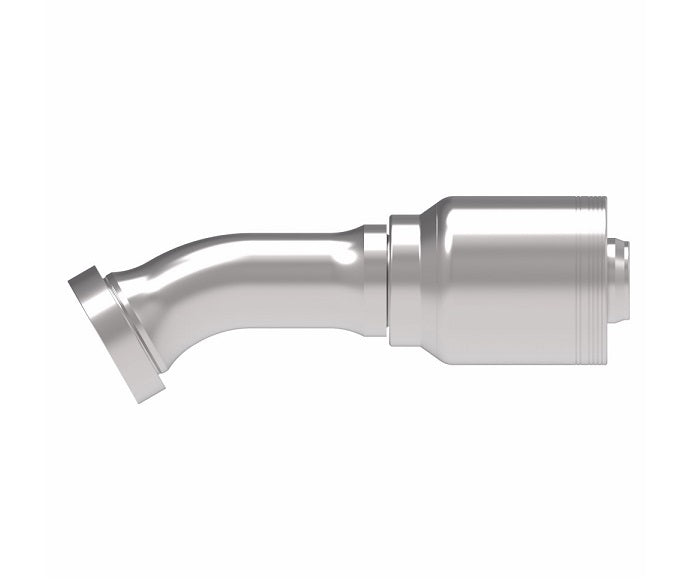

6S24CTF24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 30° Elbow (CTF) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTF) - 30° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 5–14 | $286.08 |
| 15–29 | $271.03 |
| 30+ | $240.91 |
Discounts applied in cart/checkout.
Product Data:
Shape:
30 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16CTF16 | -16 | 25 | -16 | 1.87" | 5.58" | 4.02" | 0.76" | 0.85" |
| 6S20CTF16 | -20 | 25 | -16 | 2.13" | 6.37" | 4.80" | 0.76" | 1.00" |
| 6S20CTF20 | -20 | 31 | -20 | 2.13" | 7.05" | 4.85" | 0.99" | 1.00" |
| 6S24CTF20 | -24 | 31 | -20 | 2.50" | 7.67" | 5.47" | 0.99" | 1.09" |
| 6S24CTF24 | -24 | 38 | -24 | 2.50" | 8.85" | 5.78" | 1.22" | 1.09" |
| 6S32CTF24 | -32 | 38 | -24 | 3.13" | 10.41" | 7.34" | 1.22" | 1.37" |
| 6S32CTF32 | -32 | 51 | -32 | 3.13" | 10.52" | 7.45" | 1.66" | 1.37" |
