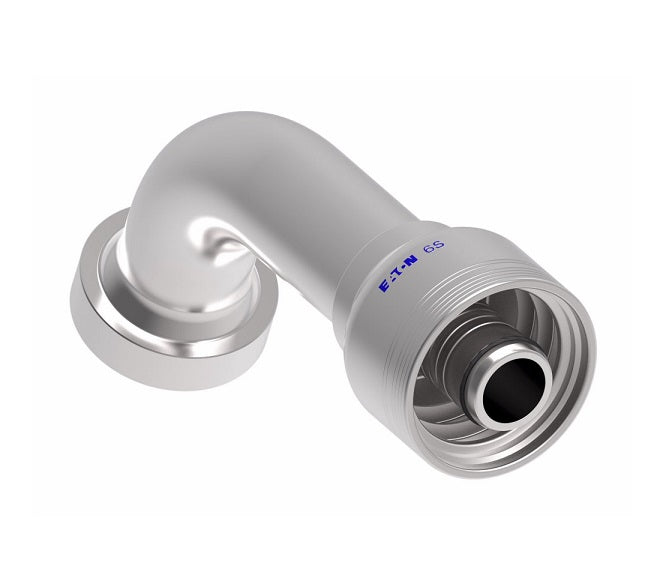

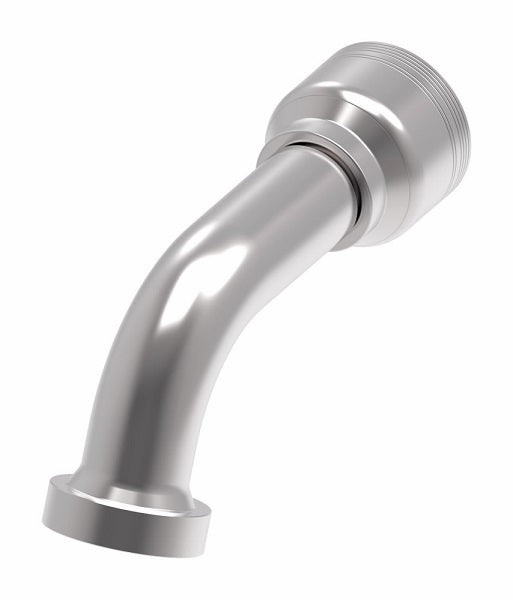

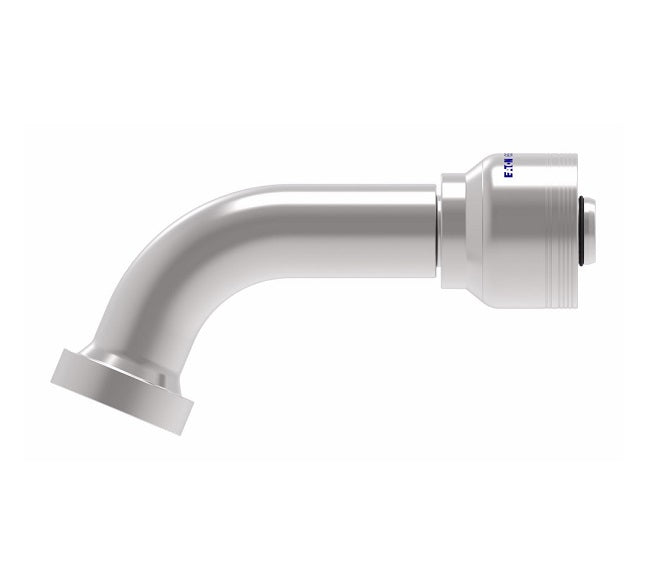

6S20CTE16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel
| Quantity | Price Each |
| 15–29 | $162.30 |
| 30–59 | $153.76 |
| 60+ | $136.67 |
Discounts applied at checkout.
Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTE) - 67.5° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
Product Data:
Shape:
67.5 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16CTE16 | -16 | 25 | -16 | 1.87" | 5.98" | 4.42" | 0.76" | 2.20" |
| 6S20CTE16 | -20 | 25 | -16 | 2.13" | 6.96" | 5.40" | 0.76" | 2.68" |
| 6S20CTE20 | -20 | 31 | -20 | 2.13" | 7.65" | 5.44" | 0.99" | 2.68" |
| 6S24CTE20 | -24 | 31 | -20 | 2.50" | 8.46" | 6.26" | 0.99" | 3.02" |
| 6S24CTE24 | -24 | 38 | -24 | 2.50" | 9.64" | 6.57" | 1.22" | 3.02" |
| 6S32CTE32 | -32 | 51 | -32 | 3.13" | 11.72" | 8.65" | 1.66" | 3.97" |
