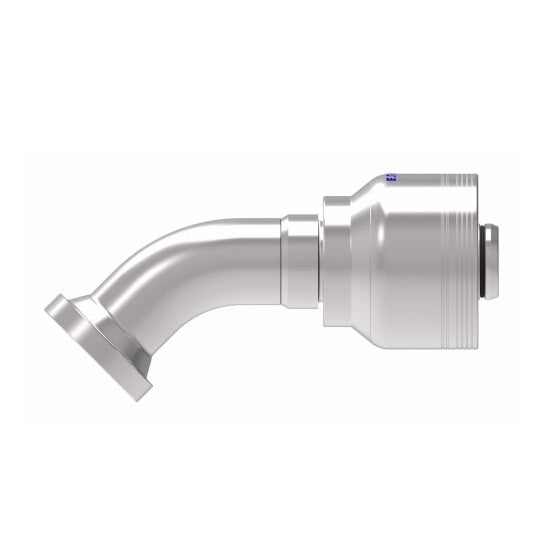

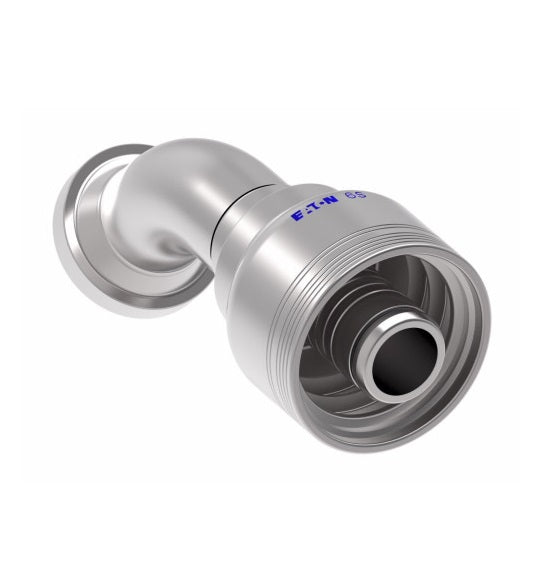

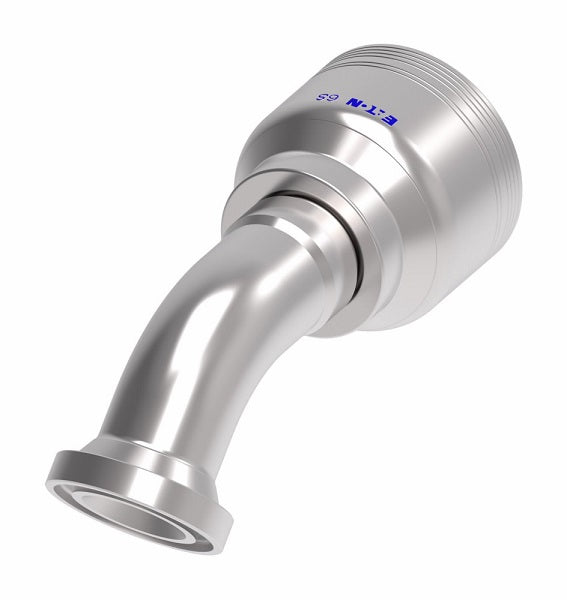

6S16FLA16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel
Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FLA) - 45° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $95.27 |
| 30–59 | $86.15 |
| 60+ | $76.01 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 6S16FLA16 | -16 | 25 | -16 | 1.75" | 5.16" | 3.59" | 0.76" | 1.26" |
| 6S20FLA16 | -20 | 25 | -16 | 2.00" | 5.91" | 4.35" | 0.76" | 1.54" |
| 6S20FLA20 | -20 | 31 | -20 | 2.00" | 6.60" | 4.39" | 0.99" | 1.54" |
| 6S24FLA24 | -24 | 38 | -24 | 2.37" | 8.44" | 5.37" | 1.22" | 1.77" |
| 6S32FLA24 | -32 | 38 | -24 | 2.81" | 9.88" | 6.81" | 1.22" | 2.26" |
| 6S32FLA32 | -32 | 51 | -32 | 2.81" | 10.00" | 6.92" | 1.66" | 2.26" |
