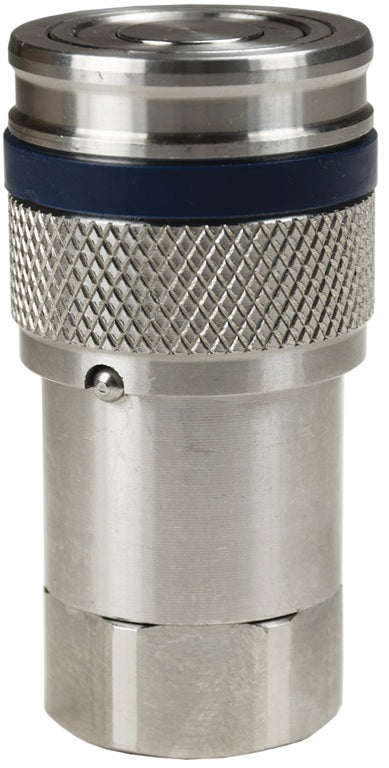

6HTF6-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | HT-Series | 3/4" Female NPTF x 3/4" ISO16028 Flushface Interchange | Socket | Nitrile Seal | 316 Stainless Steel
6HTF6-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | HT-Series | 3/4" Female NPTF x 3/4" ISO16028 Flushface Interchange | Socket | Nitrile Seal | 316 Stainless Steel

6HTF6-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | HT-Series | 3/4" Female NPTF x 3/4" ISO16028 Flushface Interchange | Socket | Nitrile Seal | 316 Stainless Steel

Sale price$358.13

Dixon Valve & Coupling
Hydraulic Coupling: HT-Series ISO16028 Flushface Interchange Coupler (Female Threads)

Used in equipment for oilfield, industrial hydraulic, and construction.
Buy More, Save More!
Quantity Price Each
5–14 $336.64
15–29 $304.41
30+ $268.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • HT-Series
Shape:

Straight

Ends Configuration:
  • 3/4in Female ISO-16028 Flush Face QD Interchange
  • 3/4in Female NPTF
Compatibility & Interchange:
  • Interchangeable to ISO16028.
  • Conforms to ISO16028 interchange standard interchangeable with Danfoss/Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC.
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
Seal Components:
  • 1/4", 3/8", 1/2", 3/4", and 1" plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • 5/8", 1-1/2", and 2" plugs have Nitrile-energized PTFE valve seals, with a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Couplers have a polyurethane valve stem O-ring, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • Ancillary coupler and plug seals are Nitrile (Nitrile-N), with a temperature range of -40°F to 250°F (-40°C to 121°C).
  • PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Features:
  • High flow performance, compact profile.
  • Easily rebuildable!.
  • DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions.
  • Polyurethane color bands are available to help color code couplers and plugs. (Blue bands standard, color bands sold separately).
  • No special tools required.
Additional Information:
HT-Series | ISO16028 Flushface Rated Pressure Chart
Body Size Steel Coupler/Plug Coupled 316 SS Coupler/Plug Coupled Steel Coupler Uncoupled Steel Plug Uncoupled
Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst
1/4" 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar		 - - 5,000 PSI
345 Bar		 20,000 PSI
1379 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar
3/8" 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar		 3,500 PSI
241 Bar		 17,500 PSI
1,207 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1379 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar
1/2" 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar		 3,400 PSI
234 Bar		 17,000 PSI
1,172 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1379 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar
5/8" 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar		 2,920 PSI
201 Bar		 14,600 PSI
1,007 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1379 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar
3/4" 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar		 2,920 PSI
201 Bar		 14,600 PSI
1,007 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1379 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar
1" 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar		 2,920 PSI
201 Bar		 14,600 PSI
1,007 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1379 Bar		 5,000 PSI
345 Bar		 20,000 PSI
1,379 Bar
1-1/2" 3,000 PSI
207 Bar		 12,000 PSI
828 Bar		 - - 3,000 PSI
207 Bar		 12,000 PSI
828 Bar		 3,000 PSI
207 Bar		 12,000 PSI
828 Bar
2" 3,000 PSI
207 Bar		 12,000 PSI
828 Bar		 - - 3,000 PSI
207 Bar		 12,000 PSI
828 Bar		 3,000 PSI
207 Bar		 12,000 PSI
828 Bar
HT-Series | ISO16028 Flushface Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2HTF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 1.98"
(50.3mm)		 1.11"
(28.3mm)		 7/8"
2HTBF2 Socket/Female 1/4" 1/4" - 19 Female BSPP Steel 1.98"
(50.3mm)		 1.11"
(28.3mm)		 7/8"
2HTOF3 Socket/Female 1/4" 9/16" - 18 Female ORB Steel 1.98"
(50.3mm)		 1.11"
(28.3mm)		 7/8"
3HTF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.50"
(63.5mm)		 1.24"
(31.5mm)		 1"
3HTF3-SS Socket/Female 3/8" 3/8" - 18 Female NPTF 316 Stainless 2.50"
(63.5mm)		 1.24"
(31.5mm)		 1"
3HTBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.50"
(63.5mm)		 1.24"
(31.5mm)		 1"
3HTBF3-SS Socket/Female 3/8" 3/8" - 19 Female BSPP 316 Stainless 2.50"
(63.5mm)		 1.24"
(31.5mm)		 1"
3HTOF3 Socket/Female 3/8" 9/16" - 18 Female ORB Steel 2.50"
(63.5mm)		 1.24"
(31.5mm)		 1"
3HTF4 Socket/Female 3/8" 1/2" - 14 Female NPTF Steel 2.72"
(69.1mm)		 1.24"
(31.5mm)		 1-1/8"
3HTF4-SS Socket/Female 3/8" 1/2" - 14 Female NPTF 316 Stainless 2.72"
(69.1mm)		 1.24"
(31.5mm)		 1-1/8"
3HTBF4 Socket/Female 3/8" 1/2" - 14 Female BSPP Steel 2.72"
(69.1mm)		 1.24"
(31.5mm)		 1-1/8"
3HTBF4-SS Socket/Female 3/8" 1/2" - 14 Female BSPP 316 Stainless 2.72"
(69.1mm)		 1.24"
(31.5mm)		 1-1/8"
3HTOF4 Socket/Female 3/8" 3/4" - 16 Female ORB Steel 2.72"
(69.1mm)		 1.24"
(31.5mm)		 1-1/8"
4HTF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 3.02"
(76.7mm)		 1.54"
(39.1mm)		 1-3/16"
4HTF4-SS Socket/Female 1/2" 1/2" - 14 Female NPTF 316 Stainless 3.02"
(76.7mm)		 1.54"
(39.1mm)		 1-3/16"
4HTBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 3.02"
(76.7mm)		 1.54"
(39.1mm)		 1-3/16"
4HTBF4-SS Socket/Female 1/2" 1/2" - 14 Female BSPP 316 Stainless 3.02"
(76.7mm)		 1.54"
(39.1mm)		 1-3/16"
4HTOF4 Socket/Female 1/2" 3/4" - 16 Female ORB Steel 3.02"
(76.7mm)		 1.54"
(39.1mm)		 1-3/16"
4HTOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 3.12"
(79.2mm)		 1.54"
(39.1mm)		 1-5/16"
4HTF6 Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 3.22"
(81.8mm)		 1.54"
(39.1mm)		 1-5/16"
4HTF6-SS Socket/Female 1/2" 3/4" - 14 Female NPTF 316 Stainless 3.22"
(81.8mm)		 1.54"
(39.1mm)		 1-5/16"
4HTBF6 Socket/Female 1/2" 3/4" - 14 Female BSPP Steel 3.22"
(81.8mm)		 1.54"
(39.1mm)		 1-5/16"
4HTBF6-SS Socket/Female 1/2" 3/4" - 14 Female BSPP 316 Stainless 3.22"
(81.8mm)		 1.54"
(39.1mm)		 1-5/16"
4HTOF6 Socket/Female 1/2" 1-1/16" - 12 Female ORB Steel 3.42"
(86.9mm)		 1.54"
(39.1mm)		 1-5/16"
5HTOF5 Socket/Female 5/8" 7/8" - 14 Female ORB Steel 3.32"
(84.3mm)		 1.67"
(42.4mm)		 1-1/2"
5HTF6 Socket/Female 5/8" 3/4" - 14 Female NPTF Steel 3.32"
(84.3mm)		 1.67"
(42.4mm)		 1-1/2"
5HTF6-SS Socket/Female 5/8" 3/4" - 14 Female NPTF 316 Stainless 3.32"
(84.3mm)		 1.67"
(42.4mm)		 1-1/2"
5HTBF6 Socket/Female 5/8" 3/4" - 14 Female BSPP Steel 3.32"
(84.3mm)		 1.67"
(42.4mm)		 1-1/2"
5HTBF6-SS Socket/Female 5/8" 3/4" - 14 Female BSPP 316 Stainless 3.32"
(84.3mm)		 1.67"
(42.4mm)		 1-1/2"
5HTOF6 Socket/Female 5/8" 1-1/16" - 12 Female ORB Steel 3.32"
(84.3mm)		 1.67"
(42.4mm)		 1-1/2"
6HTOF5 Socket/Female 3/4" 7/8" - 14 Female ORB Steel 3.70"
(94.0mm)		 1.85"
(47.0mm)		 1-1/2"
6HTF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.70"
(94.0mm)		 1.85"
(47.0mm)		 1-1/2"
6HTF6-SS Socket/Female 3/4" 3/4" - 14 Female NPTF 316 Stainless 3.70"
(94.0mm)		 1.85"
(47.0mm)		 1-1/2"
6HTBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 3.70"
(94.0mm)		 1.85"
(47.0mm)		 1-1/2"
6HTBF6-SS Socket/Female 3/4" 3/4" - 14 Female BSPP 316 stainless 3.70"
(94.0mm)		 1.85"
(47.0mm)		 1-1/2"
6HTOF6 Socket/Female 3/4" 1-1/16" - 12 Female ORB Steel 3.70"
(94.0mm)		 1.85"
(47.0mm)		 1-1/2"
6HTF8 Socket/Female 3/4" 1" - 11-1/2 Female NPTF Steel 3.82"
(97.0mm)		 1.92"
(48.8mm)		 1-3/4"
6HTF8-SS Socket/Female 3/4" 1" - 11-1/2 Female NPTF 316 Stainless 3.82"
(97.0mm)		 1.92"
(48.8mm)		 1-3/4"
6HTBF8 Socket/Female 3/4" 1" - 11 Female BSPP Steel 3.82"
(97.0mm)		 1.92"
(48.8mm)		 1-3/4"
6HTBF8-SS Socket/Female 3/4" 1" - 11 Female BSPP 316 Stainless 3.82"
(97.0mm)		 1.92"
(48.8mm)		 1-3/4"
6HTOF8 Socket/Female 3/4" 1-5/16" - 12 Female ORB Steel 3.82"
(97.0mm)		 1.92"
(48.8mm)		 1-3/4"
8HTF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 4.24"
(107.7mm)		 2.29"
(58.2mm)		 1-3/4"
6HTF8 Socket/Female 1" 1" - 11-1/2 Female NPTF 316 Stainless 4.24"
(107.7mm)		 2.29"
(58.2mm)		 1-3/4"
8HTBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 4.24"
(107.7mm)		 2.29"
(58.2mm)		 1-3/4"
8HTBF8-SS Socket/Female 1" 1" - 11 Female BSPP 316 Stainless 4.24"
(107.7mm)		 2.29"
(58.2mm)		 1-3/4"
8HTOF8 Socket/Female 1" 1-5/16" - 12 Female ORB Steel 4.24"
(107.7mm)		 2.29"
(58.2mm)		 1-3/4"
8HTF10 Socket/Female 1" 1-1/4" - 11-1/2 Female NPTF Steel 4.34"
(110.2mm)		 2.29"
(58.2mm)		 2"
8HTF10-SS Socket/Female 1" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 4.34"
(110.2mm)		 2.29"
(58.2mm)		 2"
8HTBF10 Socket/Female 1" 1-1/4" - 11 Female BSPP Steel 4.29"
(109.0mm)		 2.29"
(58.2mm)		 2"
8HTBF10-SS Socket/Female 1" 1-1/4" - 11 Female BSPP 316 Stainless 4.29"
(109.0mm)		 2.29"
(58.2mm)		 2"
8HTOF10 Socket/Female 1" 1-5/8" - 12 Female ORB Steel 4.24"
(107.7mm)		 2.29"
(58.2mm)		 2"
HT-Series | ISO16028 Flushface Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
HT2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.89"
(48.0mm)		 0.97"
(24.6mm)		 7/8"
HT2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 1.89"
(48.0mm)		 0.97"
(24.6mm)		 7/8"
HT2OF3 Plug/Male 1/4" 9/16" - 18 Female ORB Steel 1.89"
(48.0mm)		 0.97"
(24.6mm)		 7/8"
HT3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 2.48"
(63.0mm)		 1.10"
(27.9mm)		 1"
HT3F3-SS Plug/Male 3/8" 3/8" - 18 Female NPTF 316 Stainless 2.48"
(63.0mm)		 1.10"
(27.9mm)		 1"
HT3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 2.48"
(63.0mm)		 1.10"
(27.9mm)		 1"
HT3BF3-SS Plug/Male 3/8" 3/8" - 19 Female BSPP 316 Stainless 2.48"
(63.0mm)		 1.10"
(27.9mm)		 1"
HT3OF3 Plug/Male 3/8" 9/16" - 18 Female ORB Steel 2.48"
(63.0mm)		 1.10"
(27.9mm)		 1"
HT3F4 Plug/Male 3/8" 1/2" - 14 Female NPTF Steel 2.70"
(68.6mm)		 1.24"
(31.5mm)		 1-1/8"
HT3F4-SS Plug/Male 3/8" 1/2" - 14 Female NPTF 316 Stainless 2.70"
(68.6mm)		 1.24"
(31.5mm)		 1-1/8"
HT3BF4 Plug/Male 3/8" 1/2" - 14 Female BSPP Steel 2.70"
(68.6mm)		 1.24"
(31.5mm)		 1-1/8"
HT3BF4-SS Plug/Male 3/8" 1/2" - 14 Female BSPP 316 Stainless 2.70"
(68.6mm)		 1.24"
(31.5mm)		 1-1/8"
HT3OF4 Plug/Male 3/8" 3/4" - 16 Female ORB Steel 2.70"
(68.6mm)		 1.24"
(31.5mm)		 1-1/8"
HT4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 2.63"
(66.8mm)		 1.31"
(33.3mm)		 1-3/16"
HT4F4-SS Plug/Male 1/2" 1/2" - 14 Female NPTF 316 Stainless 2.63"
(66.8mm)		 1.31"
(33.3mm)		 1-3/16"
HT4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 2.63"
(66.8mm)		 1.31"
(33.3mm)		 1-3/16"
HT4BF4-SS Plug/Male 1/2" 1/2" - 14 Female BSPP 316 Stainless 2.63"
(66.8mm)		 1.31"
(33.3mm)		 1-3/16"
HT4OF4 Plug/Male 1/2" 3/4" - 16 Female ORB Steel 2.63"
(66.8mm)		 1.31"
(33.3mm)		 1-3/16"
HT4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 2.63"
(69.3mm)		 1.31"
(33.3mm)		 1-5/16"
HT4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 2.73"
(71.9mm)		 1.44"
(36.6mm)		 1-5/16"
HT4F6-SS Plug/Male 1/2" 3/4" - 14 Female NPTF 316 Stainless 2.83"
(71.9mm)		 1.44"
(36.6mm)		 1-5/16"
HT4BF6 Plug/Male 1/2" 3/4" - 14 Female BSPP Steel 2.83"
(71.9mm)		 1.44"
(36.6mm)		 1-5/16"
HT4BF6-SS Plug/Male 1/2" 3/4" - 14 Female BSPP 316 Stainless 2.83"
(71.9mm)		 1.44"
(36.6mm)		 1-5/16"
HT4OF6 Plug/Male 1/2" 1-1/16" - 12 Female ORB Steel 3.03"
(77.0mm)		 1.44"
(36.6mm)		 1-5/16"
HT5OF5 Plug/Male 5/8" 7/8" - 14 Female ORB Steel 2.88"
(73.3mm)		 1.65"
(41.9mm)		 1-1/2"
HT5F6 Plug/Male 5/8" 3/4" - 14 Female NPTF Steel 2.88"
(73.3mm)		 1.65"
(41.9mm)		 1-1/2"
HT5F6-SS Plug/Male 5/8" 3/4" - 14 Female NPTF 316 Stainless 2.88"
(73.3mm)		 1.65"
(41.9mm)		 1-1/2"
HT5BF6 Plug/Male 5/8" 3/4" - 14 Female BSPP Steel 2.88"
(73.3mm)		 1.65"
(41.9mm)		 1-1/2"
HT5BF6-SS Plug/Male 5/8" 3/4" - 14 Female BSPP 316 Stainless 2.88"
(73.3mm)		 1.65"
(41.9mm)		 1-1/2"
HT5OF6 Plug/Male 5/8" 1-1/16" - 12 Female ORB Steel 2.88"
(73.3mm)		 1.65"
(41.9mm)		 1-1/2"
HT6OF5 Plug/Male 3/4" 7/8" - 14 Female ORB Steel 3.42"
(86.9mm)		 1.65"
(41.9mm)		 1-1/2"
HT6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 3.42"
(86.9mm)		 1.65"
(41.9mm)		 1-1/2"
HT6F6-SS Plug/Male 3/4" 3/4" - 14 Female NPTF 316 Stainless 3.42"
(86.9mm)		 1.65"
(41.9mm)		 1-1/2"
HT6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 3.42"
(86.9mm)		 1.65"
(41.9mm)		 1-1/2"
HT6BF6-SS Plug/Male 3/4" 3/4" - 14 Female BSPP 316 Stainless 3.42"
(86.9mm)		 1.65"
(41.9mm)		 1-1/2"
HT6OF6 Plug/Male 3/4" 1-1/16" - 12 Female ORB Steel 3.42"
(86.9mm)		 1.65"
(41.9mm)		 1-1/2"
HT6F8 Plug/Male 3/4" 1" - 11-1/2 Female NPTF Steel 3.54"
(89.9mm)		 1.92"
(48.8mm)		 1-3/4"
HT6F8-SS Plug/Male 3/4" 1" - 11-1/2 Female NPTF 316 Stainless 3.54"
(89.9mm)		 1.92"
(48.8mm)		 1-3/4"
HT6BF8 Plug/Male 3/4" 1" - 11 Female BSPP Steel 3.54"
(89.9mm)		 1.92"
(48.8mm)		 1-3/4"
HT6BF8-SS Plug/Male 3/4" 1" - 11 Female BSPP 316 Stainless 3.54"
(89.9mm)		 1.92"
(48.8mm)		 1-3/4"
HT6OF8 Plug/Male 3/4" 1-5/16" - 12 Female ORB Steel 3.54"
(89.9mm)		 1.92"
(48.8mm)		 1-3/4"
HT8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 3.50"
(88.9mm)		 1.96"
(49.8mm)		 1-3/4"
HT8F8-SS Plug/Male 1" 1" - 11-1/2 Female NPTF 316 Stainless 3.50"
(88.9mm)		 1.96"
(49.8mm)		 1-3/4"
HT8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 3.50"
(88.9mm)		 1.96"
(49.8mm)		 1-3/4"
HT8BF8-SS Plug/Male 1" 1" - 11 Female BSPP 316 Stainless 3.50"
(88.9mm)		 1.96"
(49.8mm)		 1-3/4"
HT8OF8 Plug/Male 1" 1-5/16" - 12 Female ORB Steel 3.50"
(88.9mm)		 1.96"
(49.8mm)		 1-3/4"
HT8F10 Plug/Male 1" 1-1/4" - 11-1/2 Female NPTF Steel 3.61"
(91.7mm)		 2.19"
(55.6mm)		 2"
HT8F10-SS Plug/Male 1" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 3.61"
(91.7mm)		 2.19"
(55.6mm)		 2"
HT8BF10 Plug/Male 1" 1-1/4" - 11 Female BSPP Steel 3.55"
(90.2mm)		 2.19"
(55.6mm)		 2"
HT8BF10-SS Plug/Male 1" 1-1/4" - 11 Female BSPP 316 Stainless 3.55"
(90.2mm)		 2.19"
(55.6mm)		 2"
HT8OF10 Plug/Male 1" 1-5/8" - 12 Female ORB Steel 3.51"
(89.2mm)		 2.19"
(55.6mm)		 2"
HT-Series | Correct Connect® Bands
Part NumberBlue Part Number Part NumberOrange Part Number Part NumberGreen Part Number Part NumberYellow Part Number Part NumberRed Part Number Description Body Size
2HTBAND-B 2HTBAND-O 2HTBAND-G 2HTBAND-Y 2HTBAND-R Coupler Band 1/4"
HT2BAND-B HT2BAND-O HT2BAND-G HT2BAND-Y HT2BAND-R Plug Band 1/4"

3HTBAND-B 3HTBAND-O 3HTBAND-G 3HTBAND-Y 3HTBAND-R Coupler Band 3/8"
HT3BAND-B HT3BAND-O HT3BAND-G HT3BAND-Y HT3BAND-R Plug Band 3/8"

4HTBAND-B 4HTBAND-O 4HTBAND-G 4HTBAND-Y 4HTBAND-R Coupler Band 1/2"
HT4BAND-B HT4BAND-O HT4BAND-G HT4BAND-Y HT4BAND-R Plug Band 1/2"

5HTBAND-B 5HTBAND-O 5HTBAND-G 5HTBAND-Y 5HTBAND-R Coupler Band 5/8"
HT5BAND-B HT5BAND-O HT5BAND-G HT5BAND-Y HT5BAND-R Plug Band 5/8"

6HTBAND-B 6HTBAND-O 6HTBAND-G 6HTBAND-Y 6HTBAND-R Coupler Band 3/4"
HT6BAND-B HT6BAND-O HT6BAND-G HT6BAND-Y HT6BAND-R Plug Band 3/4"

8HTBAND-B 8HTBAND-O 8HTBAND-G 8HTBAND-Y 8HTBAND-R Coupler Band 1"
HT8BAND-B HT8BAND-O HT8BAND-G HT8BAND-Y HT8BAND-R Plug Band 1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Explore Dixon Valve & Coupling

You may also like
