6GC82-12x12 by Couplamatic | Grip Crimp 6GC Series Coupling | Extra Heavy Duty Flange | 3/4" Hose ID x 3/4" Flange Size | for use on Caterpillar® Equipment | 90° Elbow | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
6GC Series — 4SH / R13 / R15 No-Skive
6GC82 Grip Crimp 6GC Series Coupling — 90° Elbow, for Caterpillar Equipment
6GC82 is the 90° Elbow, for Caterpillar Equipment configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.
1
What are the main product features?
- The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates six spiral hose without stripping the cover.
- Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2
Which sizes are available?

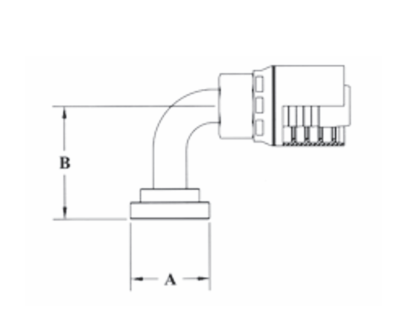

| Part Number | Hose ID | Flange Size | A-DiaInches | B-DropInches | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Parker 78 | Parker 79 | |||||
| 6GC82-12x12 | 3/4" | 3/4" | 1.62" | 2.50" | 1XN78-12-12 | 1XN79-12-12 |
| 6GC82-12x16 | 3/4" | 1" | 1.88" | 3.00" | — | — |
| 6GC82-16x16 | 1" | 1" | 1.88" | 3.00" | 1XN78-16-16 | 1XN79-16-16 |
| 6GC82-16x20 | 1" | 1-1/4" | 2.12" | 3.38" | — | — |
| 6GC82-20x20 | 1-1/4" | 1-1/4" | 2.12" | 3.38" | 1XN78-20-20 | 1XN79-20-20 |
| 6GC82-24x24 | 1-1/2" | 1-1/2" | 2.50" | 4.00" | 1XN78-24-24 | 1XN79-24-24 |
| 6GC82-32x32 | 2" | 2" | 3.12" | 5.50" | — | — |
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
