6GC81-24x24 by Couplamatic | Grip Crimp 6GC Series Coupling | Extra Heavy Duty Flange | 1-1/2" Hose ID x 1-1/2" Flange Size | for use on Caterpillar® Equipment | 45° Elbow | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Extra Heavy Duty Flange - 45° Bend (For use on Caterpillar® Equipment)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $131.32 |
| 20–59 | $118.75 |
| 60+ | $104.78 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

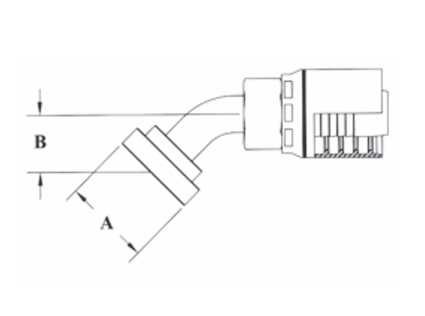

| Part Number | Hose ID | Flange Size | A-DiaInches | B-DropInches | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Parker 78 | Parker 79 | |||||
| 6GC81-12x12 | 3/4" | 3/4" | 1.62" | 1.25" | 1XF78-12-12 | 1XF79-12-12 |
| 6GC81-16x16 | 1" | 1" | 1.88" | 1.40" | 1XF78-16-16 | 1XF79-16-16 |
| 6GC81-20x20 | 1-1/4" | 1-1/4" | 2.12" | 1.50" | 1XF78-20-20 | 1XF79-20-20 |
| 6GC81-24x24 | 1-1/2" | 1-1/2" | 2.50" | 1.75" | 1XF78-24-24 | - |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
