6GC Series — 4SH / R13 / R15 No-Skive
6GC54 Grip Crimp 6GC Series Coupling — Code 61 Split Flange, 90° Long Elbow
6GC54 is the Code 61 Split Flange, 90° Long Elbow configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.
1
What are the main product features?
- The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates six spiral hose without stripping the cover.
- Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2
Which sizes are available?

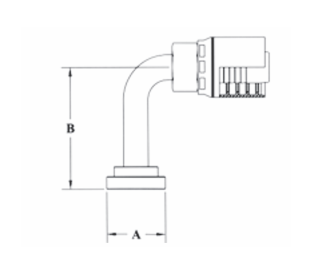

| Part Number | Hose ID | Flange Size | A-DiaInches | B-DropInches |
|---|---|---|---|---|
| 6GC54-12x12 | 3/4" | 3/4" | 1.50" | 5.25" |
| 6GC54-12x16 | 3/4" | 1" | 1.75" | 6.00" |
| 6GC54-16x16 | 1" | 1" | 1.75" | 6.00" |
| 6GC54-16x20 | 1" | 1-1/4" | 2.00" | 7.50" |
| 6GC54-20x20 | 1-1/4" | 1-1/4" | 2.00" | 7.50" |
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
