6GC25-16x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x 1-5/16x12 Thread Size JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
6GC Series — 4SH / R13 / R15 No-Skive
6GC25 Grip Crimp 6GC Series Coupling — JIC 37°, Female Swivel, 45° Elbow
6GC25 is the JIC 37°, Female Swivel, 45° Elbow configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.
1
What are the main product features?
- The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates six spiral hose without stripping the cover.
- Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2
Which sizes are available?

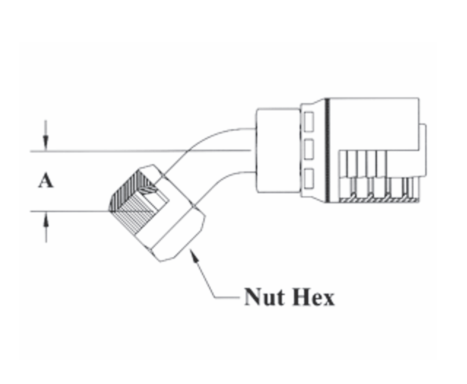

| Part Number | Hose ID | Tube Size | Thread Size | A-DropInches | Nut Hex |
|---|---|---|---|---|---|
| 6GC25-12x12 | 3/4" | 3/4" | 1-1/16x12 | 1.50" | 1-1/4" |
| 6GC25-16x16 | 1" | 1" | 1-5/16x12 | 1.75" | 1-1/2" |
Additional Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
