6GC01-24x24 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/2" Hose ID x 1-1/2-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

6GC01-24x24 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/2" Hose ID x 1-1/2-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Sale price$76.25

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - NPTF - Male Solid
Quantity Price Each
15–29 $72.44
30–59 $68.63
60+ $61.00
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6GC Series
Shape:

Straight

Ends Configuration:
  • 1-1/2in Male NPTF
  • 1-1/2in Hose Barb
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

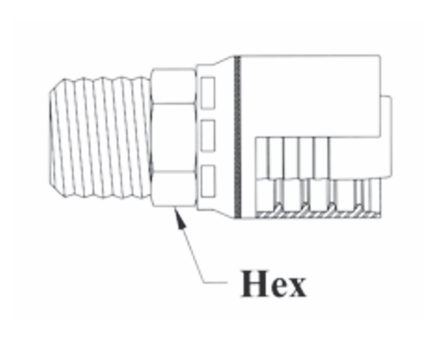

    Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
    Parker 78
    6GC01-12x12 3/4" 3/4" 3/4-14 1-1/8" 10178-12-12
    6GC01-16x16 1" 1" 1-11-1/2 1-3/8" 10178-16-16
    6GC01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 10178-20-20
    6GC01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" 10178-24-24
    6GC01-32x32 2" 2" 2-11-1/2 2-1/2" 101S6-32-32

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
