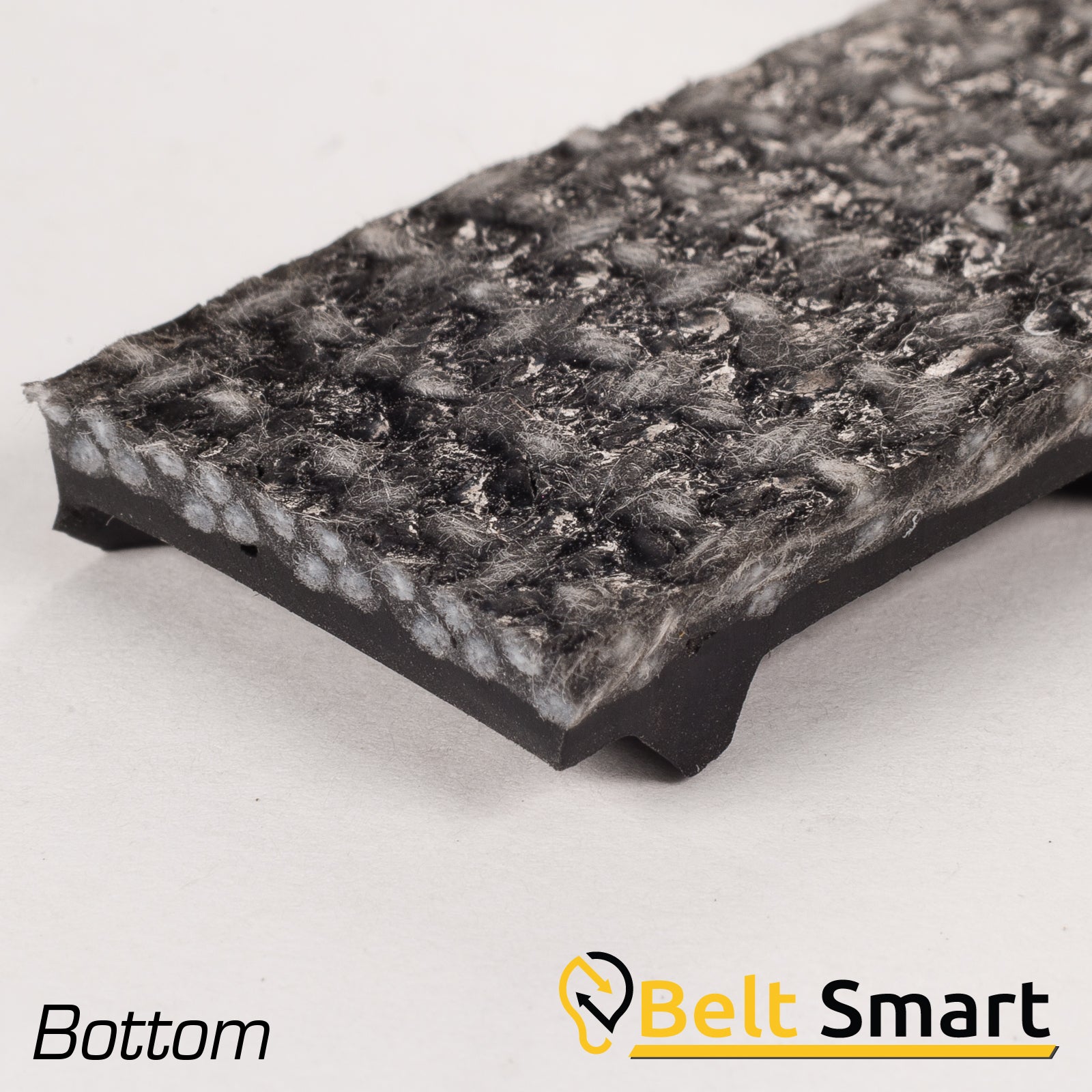

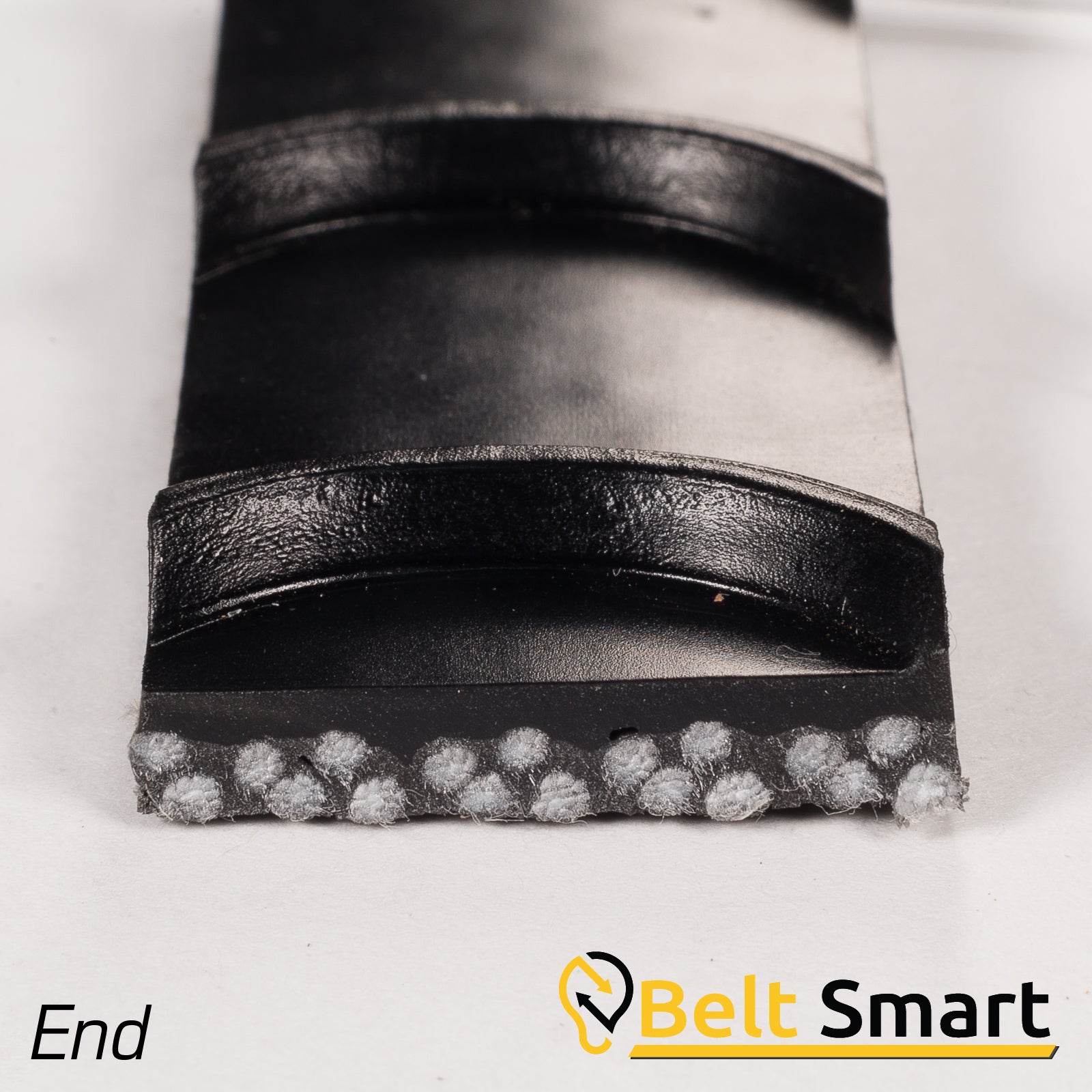

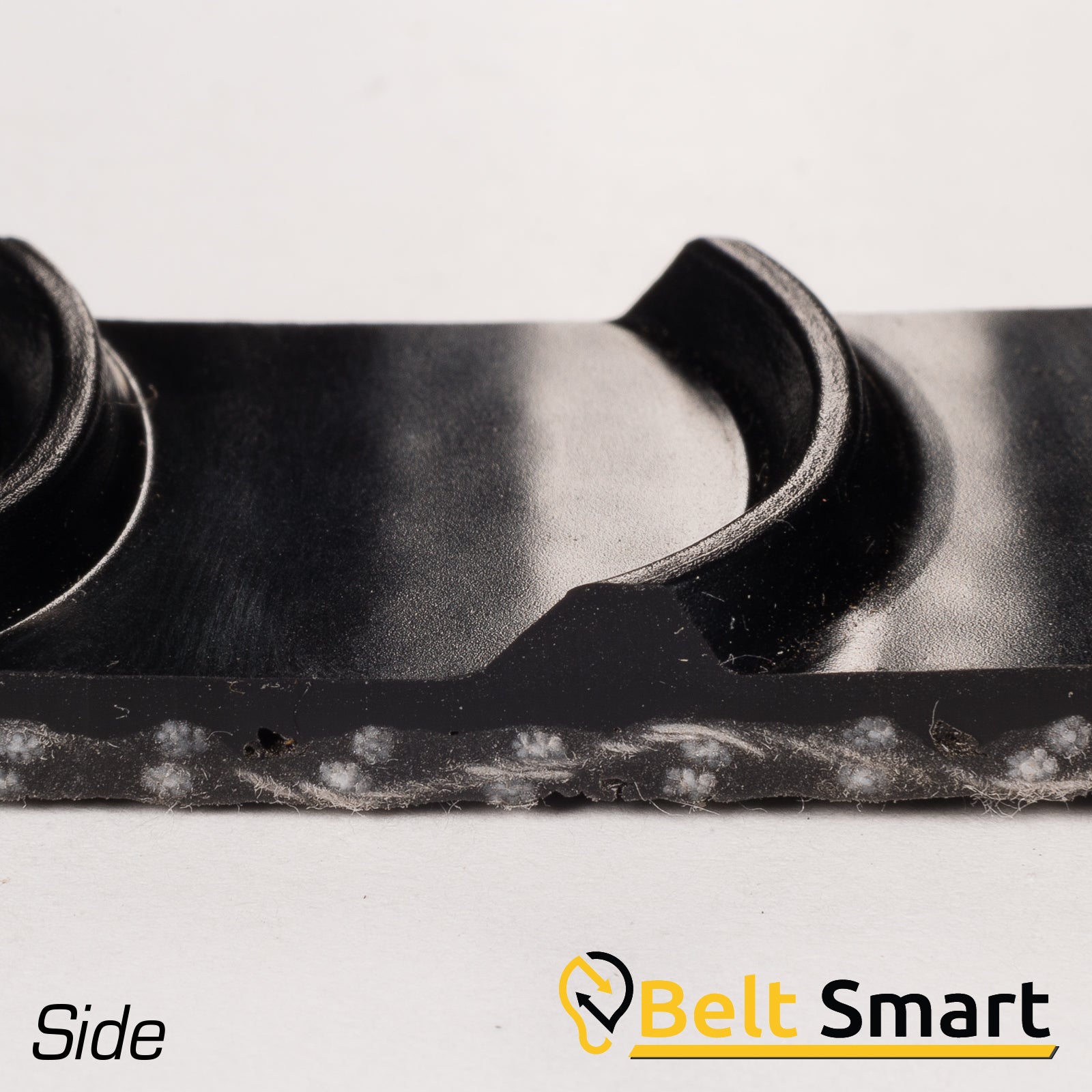

BS069A - #69a Beltservice PVC - 120 Black Crescent Top x FS Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Tubeveyor Belt
Features:

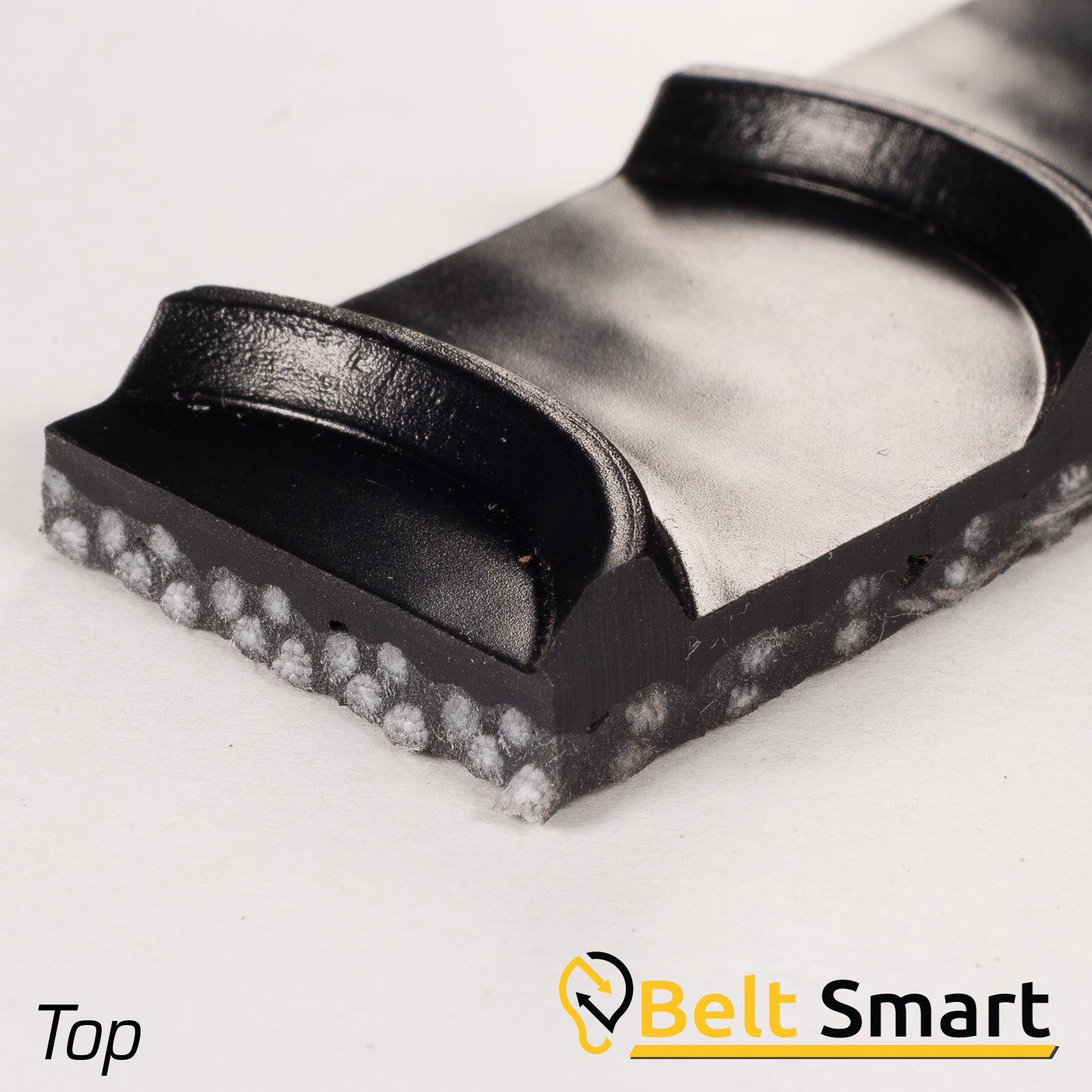

Aggressive scoop pattern for high incline conveying. Crescent pattern creates hundreds of tiny "buckets" capable of conveying liquids along with solids. Conversely, the belt can be run in the opposite direction, and the upside-down crescents convey solids while draining off liquids. Belt operates smoothly and quietly on the return.

	PVC - 120 Black Crescent Top x FS Pt No.: 69a	PVC - 200 Black Crescent Top x FS Pt No.: 69b
Thickness	1/4"	5/16"
Covers	1/8" Crescent Shapes x FS
Carcass	120 lb. Polyester	200 lb. Polyester
Working Tension per Inch Width	120 lbs.	200 lbs.
Approx. Weight Lbs. Per Inch Width	.089 lbs.	.130 lbs.
Min. Pulley Diameter	3"	4"
Temperature Range	0 deg. F / 180 deg. F
Clipper Lace	#1	#4
Alligator Lace	#7	#27
Flexco Hinged	#125	#187

FS = Friction Surface
