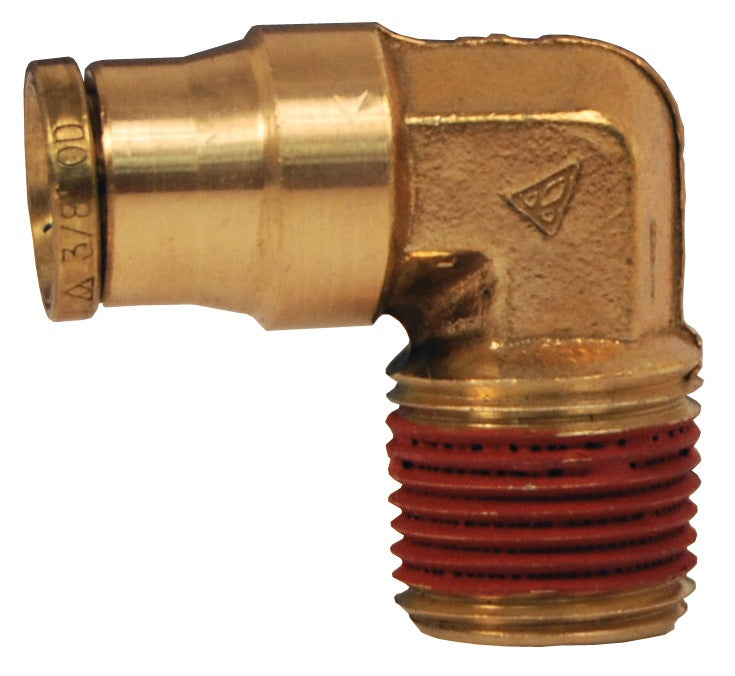

698X8 by Dixon Valve | Push-In Fitting | Male 90° Elbow | 1/4" Tube OD x 1/4" Male NPTF | Forged Brass

698X8 by Dixon Valve | Push-In Fitting | Male 90° Elbow | 1/4" Tube OD x 1/4" Male NPTF | Forged Brass

Sale price$9.79

Dixon Valve & Coupling
Push-In Fitting | Male 90° Elbow | Tube End x Male NPTF
Buy More, Save More!
Quantity Price Each
10–39 $9.20
40–79 $8.32
80+ $7.34
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Male NPTF
Material(s):
  • Brass
Use:
  • Suitable for vacuum service.
  • Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
  • Positive seal: no leaks, after tubing is inserted, seal is made.
  • Secure tube retention: pulling on tubing only serves to tighten the connection.
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
  • Supplied with gasket.
Construction:
  • Forged Brass
Specifications:
  • Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
  • Saves up to 75% of assembly time versus the standard compression fittings.
  • Quick connect: simply push tubing in, no tools required.
  • Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
  • Reusable: connect and disconnect numerous times.
Part Number Tube O.D. Male NPTF
694X4 1/8" 1/8"
695X4 5/32" 1/8"
696X4 3/16" 1/8"
698X4 1/4" 1/8"
698X8 1/4" 1/4"
698X12 1/4" 3/8"
6912X4 3/8" 1/8"
6912X8 3/8" 1/4"
6912X12 3/8" 3/8"
6916X8 1/2" 1/4"
6916X12 1/2" 3/8"
