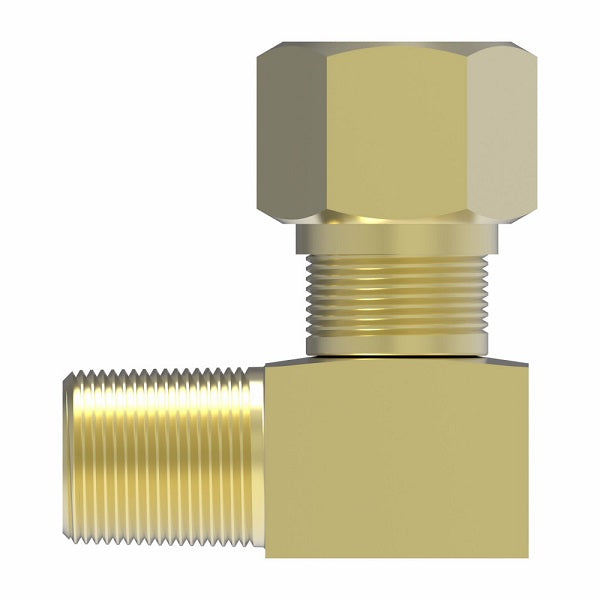

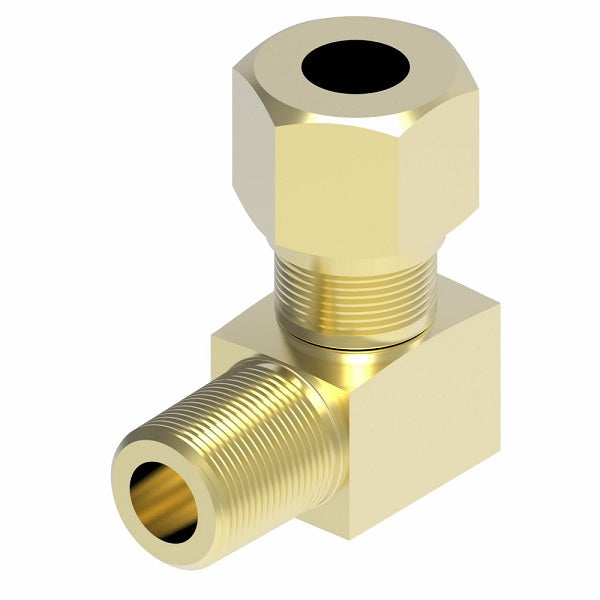

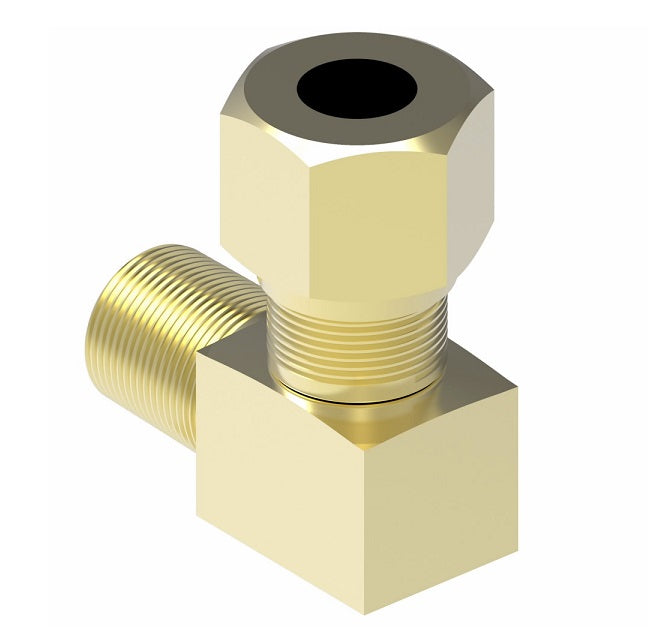

691X3 by Danfoss | SelfAlign Adapter | Male 90° Elbow | 3/16" Tube OD x 1/8" Male NPTF | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
SelfAlign Adapter - Male Elbow
SelfAlign End x Male NPTF End
90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $4.12 |
| 40–79 | $3.72 |
| 80+ | $3.29 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Brass Part Number |
Tube O.D. | Male Pipe Thread | D | D1 | M | N |
| 691X2X1 | 1/8" | 1/16" | 0.109" | 0.125" | 0.54" | 0.66" |
| 691X2 | 1/8" | 1/8" | 0.094" | 0.219" | 0.60" | 0.67" |
| 691X3 | 3/16" | 1/8" | 0.125" | 0.188" | 0.62" | 0.69" |
| 691X4 | 1/4" | 1/8" | 0.188" | 0.219" | 0.62" | 0.75" |
| 691X4X4 | 1/4" | 1/4" | 0.188" | 0.219" | 0.63" | 0.84" |
| 691X5 | 5/16" | 1/8" | 0.250" | 0.250" | 0.62" | 0.75" |
| 691X5X4 | 5/16" | 1/4" | 0.250" | 0.344" | 0.69" | 0.84" |
| 691X6X2 | 3/8" | 1/8" | 0.312" | 0.235" | 0.69" | 0.69" |
| 691X6 | 3/8" | 1/4" | 0.312" | 0.344" | 0.75" | 0.93" |
| 691X6X6 | 3/8" | 3/8" | 0.312" | 0.437" | 0.85" | 0.94" |
| 691X6X8 | 3/8" | 1/2" | 0.312" | 0.562" | 1.04" | 1.14" |
| 691X8X4 | 1/2" | 1/4" | 0.406" | 0.312" | 0.84" | 0.94" |
| 691X8 | 1/2" | 3/8" | 0.406" | 0.407" | 0.94" | 1.12" |
| 691X8X8 | 1/2" | 1/2" | 0.406" | 0.531" | 0.94" | 1.31" |
| 691X10 | 5/8" | 1/2" | 0.500" | 0.564" | 1.06" | 1.31" |
