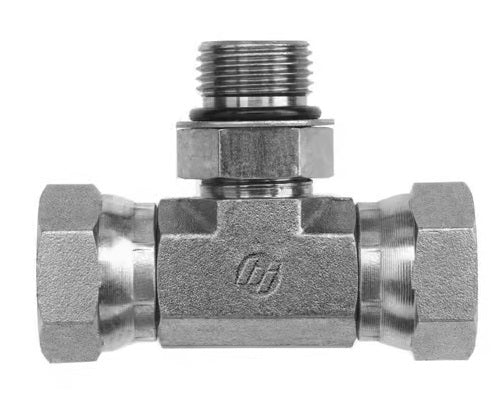

6911-08-08-08-NWO-FG by Brennan Inc. | -08 Male Adjustable O-Ring Boss x -08 Female Pipe Swivel x -08 Female Pipe Swivel | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6911-NWO - Male Adjustable O-Ring Boss x Female Pipe Swivel x Female Pipe Swivel Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $29.92 |
| 40–79 | $27.06 |
| 80+ | $23.87 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. |
A SAE ORB |
B NPSM |
B NPSM |
A Drill |
B Drill |
B Drill |
L1 Length |
L2 Length |
L3 Length |
C Hex |
C1 Hex |
Y Flats |
| 6911-08-08-08-NWO-FG | Forged Steel | 1/2" | 3/4-16" | 1/2-14" | 1/2-14" | 0.391" | 0.440" | 0.440" | 1.450" | 1.110" | 1.390" | 0.875" | 1.000" | 0.875" |
| 6911-10-12-12-NWO-FG | Forged Steel | 5/8" | 7/8-14" | 3/4-14" | 3/4-14" | 0.484" | 0.610" | 0.610" | 1.780" | 1.300" | 1.650" | 1.000" | 1.250" | 1.062" |
