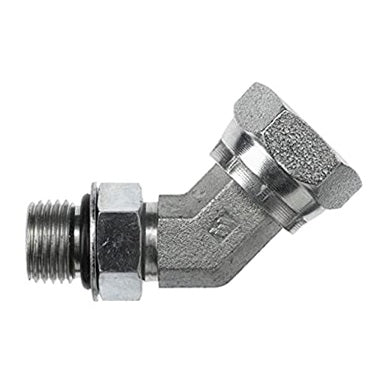

6902-12-16-NWO-FG by Brennan Inc. | -12 Male Adjustable O-Ring Boss x -16 Female Pipe Swivel | 45° Elbow | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6902-NWO - Male Adjustable O-Ring Boss x Female Pipe Swivel 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.61 |
| 40–79 | $33.11 |
| 80+ | $29.21 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B SAE ORB | A NPSM | B Drill | A Drill | M8 Length | M Length | M6 Length | C Hex | C1 Hex | Y Flats |
| 6902-04-04-NWO-FG | Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.220" | 1.050" | 0.610" | 0.800" | 0.563" | 0.688" | 0.438" |
| 6902-04-06-NWO-FG | Steel | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.340" | 1.080" | 0.830" | 1.040" | 0.563" | 0.875" | 0.562" |
| 6902-06-04-NWO-FG | Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.220" | 1.140" | 0.810" | 1.000" | 0.688" | 0.688" | 0.562" |
| 6902-06-04-NWO-FG | Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.220" | 1.140" | 0.810" | 1.000" | 0.688" | 0.688" | 0.562" |
| 6902-06-06-NWO-FG | Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.32/0.36" | 1.140" | 0.830" | 1.040" | 0.688" | 0.875" | 0.562" |
| 6902-06-08-NWO-FG | Steel | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.460" | 1.140" | 0.890" | 1.170" | 0.688" | 1.000" | 0.750" |
| 6902-08-04-NWO-FG | Steel | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.220" | 1.300" | 0.790" | 0.980" | 0.875" | 0.688" | 0.750" |
| 6902-08-06-NWO-FG | Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.320" | 1.300" | 0.810" | 1.020" | 0.875" | 0.875" | 0.750" |
| 6902-08-08-NWO-FG | Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.44/0.46" | 1.300" | 0.890" | 1.170" | 0.875" | 1.000" | 0.750" |
| 6902-08-12-NWO-FG | Steel | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.635" | 1.410" | 1.020" | 1.370" | 0.875" | 1.250" | 1.062" |
| 6902-10-06-NWO-FG | Steel | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.340" | 1.520" | 0.810" | 1.020" | 1.000" | 0.875" | 0.875" |
| 6902-10-08-NWO-FG | Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.460" | 1.520" | 0.880" | 1.160" | 1.000" | 1.000" | 0.875" |
| 6902-10-12-NWO-FG | Steel | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.635" | 1.570" | 1.020" | 1.370" | 1.000" | 1.250" | 1.062" |
| 6902-12-08-NWO-FG | Steel | 3/4" | 1-1/16-12" | 1/2-14" | 0.609" | 0.460" | 1.730" | 1.020" | 1.300" | 1.250" | 1.000" | 1.062" |
| 6902-12-12-NWO-FG | Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | .61/.63" | 1.730" | 1.020" | 1.370" | 1.250" | 1.250" | 1.062" |
| 6902-12-16-NWO-FG | Steel | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.780" | 1.860" | 1.150" | 1.500" | 1.250" | 1.500" | 1.312" |
| 6902-16-12-NWO-FG | Steel | 1" | 1-5/16-12" | 3/4-14" | 0.844" | 0.620" | 1.860" | 1.010" | 1.360" | 1.500" | 1.250" | 1.312" |
| 6902-16-16-NWO-FG | Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.780" | 1.860" | 1.150" | 1.500" | 1.500" | 1.500" | 1.312" |
| 6902-16-20-NWO-FG | Steel | 1" | 1-5/16-12" | 1-1/4-11-1/2" | 0.844" | 1.087" | 1.910" | 1.230" | 1.660" | 1.500" | 1.875" | 1.625" |
| 6902-20-16-NWO-FG | Steel | 1-1/4" | 1-5/8-12" | 1-11-1/2" | 1.078" | 0.78/0.80" | 1.910" | 1.200" | 1.550" | 1.875" | 1.500" | 1.625" |
| 6902-20-20-NWO-FG | Steel | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.010" | 1.910" | 1.230" | 1.650" | 1.875" | 1.875" | 1.625" |
| 6902-24-24-NWO-FG | Steel | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.250" | 1.910" | 1.350" | 1.770" | 2.125" | 2.125" | 1.875" |
