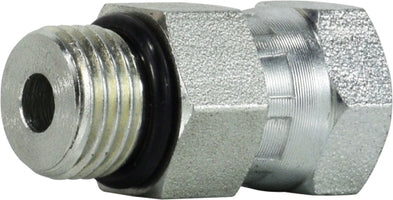

6900O126 by Midland | Hydraulic Male O-Ring Swivel | 3/4" Male O-Ring Boss x 3/8" Female NPSM | Adapter | Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | |||
|---|---|---|---|
| 6900 | 2066R | 1235 | 9315 |
 |
|||
|---|---|---|---|
| Part Number | Male O-Ring Boss Size |
Male O-Ring Boss Thread (1) |
Female NPSM (2) |
| 6900O42 (6900-O-42) |
1/4" | 7/16-20 | 1/8" |
| 6900O44 (6900-O-4-4) |
1/4" | 7/16-20 | 1/4" |
| 6900O46 (6900-O-4-6) |
1/4" | 7/16-20 | 3/8" |
| 6900O48 | 1/4" | 7/16-20" | 1/2" |
| 6900O54 | 5/16" | 1/2-20 | 1/4" |
| 6900O64 (6900-O-6-4) |
3/8" | 9/16-18 | 1/4" |
| 6900O66 (6900-O-6-6) |
3/8" | 9/16-18 | 3/8" |
| 6900O68 (6900-O-6-8) |
3/8" | 9/16-18 | 1/2" |
| 6900O86 (6900-O-8-6) |
1/2" | 3/4-16 | 3/8" |
| 6900O88 (6900-O-8-8) |
1/2" | 3/4-16 | 1/2" |
| 6900O812 (6900-O-8-12) |
1/2" | 3/4-16 | 3/4" |
| 6900O104 (6900-O-10-4) |
5/8" | 7/8-14 | 1/4" |
| 6900O106 | 5/8" | 7/8-14 | 3/8" |
| 6900O108 (6900-O-10-8) |
5/8" | 7/8-14 | 1/2" |
| 6900O1012 (6900-O-10-12) |
5/8" | 7/8-14 | 3/4" |
| 6900O126 | 3/4" | 1-1/16-12 | 3/8" |
| 6900O128 (6900-O-12-8) |
3/4" | 1-1/16-12 | 1/2" |
| 6900O1212 (6900-O-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 6900O1612 (6900-O-16-12) |
1" | 1-5/16-12 | 3/4" |
| 6900O1616 (6900-O-16-12) |
1" | 1-5/16-12 | 1" |
| 6900O1620 | 1" | 1-5/16-12 | 1-1/4" |
| 6900O2020 | 1-1/4" | 1-5/8-12" | 1-1/4" |
| 6900O3232 | 2" | 2-1/2-12 | 2" |
