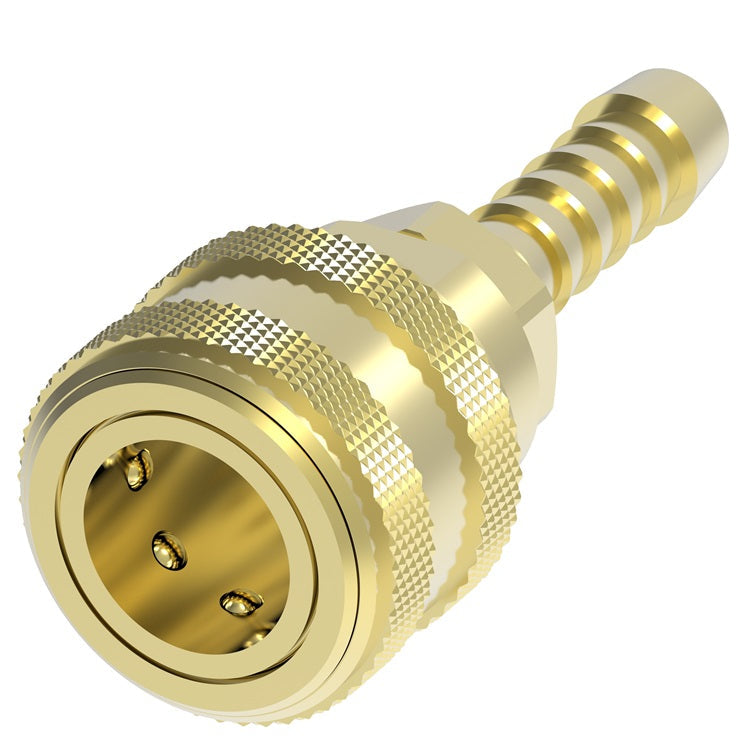

6900 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Socket | NBR Seal | Brass
6900 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Socket | NBR Seal | Brass
6900 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Socket | NBR Seal | Brass

6900 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Socket | NBR Seal | Brass

Sale price$90.10

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 6000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.
Buy More, Save More!
Quantity Price Each
10–39 $84.69
40–79 $76.59
80+ $67.58
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 6000 Series
Shape:

Straight
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
6000 3/4" 15 bar 220 psi 60 bar 880 psi 3,540 lpm 125 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
6000 Series | Sockets
Part Number Coupling Type Body Size Hose ID Material Figure Dimensions
A B
6800E Socket/Female 3/4" 1/2" Brass 1 3.21"
(81.53mm)		 1.88"
(47.75mm)
6900 Socket/Female 3/4" 3/4" Brass 1 4.06"
(103.12mm)		 1.88"
(47.75mm)
7000E Socket/Female 3/4" 1" Brass 1 4.07"
(103.38mm)		 1.88"
(47.75mm)
6000 Series | Plugs
Part Number Coupling Type Body Size Hose ID Material Figure Dimensions
A B
70A Plug/Male 3/4" 1/2" Steel 2 2.53"
(64.26mm)		 0.94"
(23.88mm)
70GA** Plug/Male 3/4" 1/2" Steel 2 3.53"
(89.66mm)		 1.12"
(28.45mm)
71A Plug/Male 3/4" 3/4" Steel 2 3.44"
(87.38mm)		 1.06"
(26.92mm)
71GA** Plug/Male 3/4" 3/4" Steel 2 4.38"
(111.25mm)		 1.12"
(28.45mm)
72A Plug/Male 3/4" 1" Steel 2 3.44"
(87.38mm)		 1.31"
(33.27mm)
B71A Plug/Male 3/4" 3/4" Steel 2 3.44"
(87.38mm)		 1.06"
(26.92mm)

** With Bleeder Ball Check - Reduces Hose Whip
