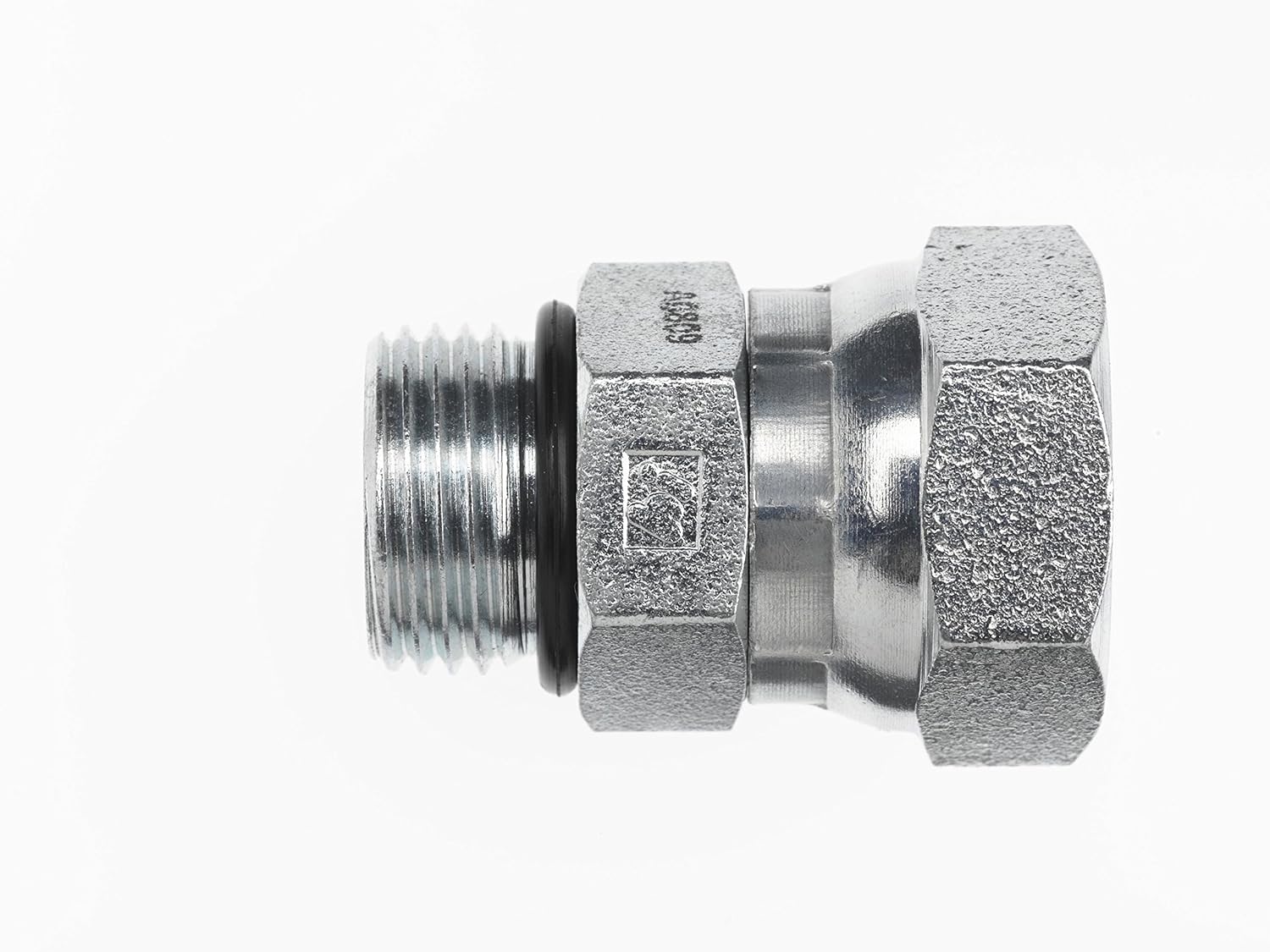

6900-04-08-O by Brennan Inc. | -04 Male O-Ring Boss x -08 Female Pipe Swivel | Straight | Steel
Brennan Inc.
Tube Fittings & Adapters: 6900 - Male O-Ring Boss x Female Pipe Swivel Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.21 |
| 40–79 | $11.94 |
| 80+ | $10.54 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAEORB | A2 NPSM | B1Drill | A2Drill | L1 Length | L Length | C Hex | C4 Hex |
| 6900-04-02-O | Steel | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.110" | 1.00" | 1.14" | 0.562" | 0.562" |
| 6900-04-04-O | Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.210" | 1.110" | 1.300" | 0.688" | 0.562" |
| 6900-04-06-O | Steel | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.340" | 1.15" | 1.36" | 0.875" | 0.688" |
| 6900-04-08-O | Steel | 1/4" | 7/16-20" | 1/2-14" | 0.172" | 0.440" | 1.210" | 1.490" | 1.000" | 0.812" |
| 6900-05-04-O | Steel | 5/16" | 1/2-20" | 1/4-18" | 0.210" | 0.210" | 1.090" | 1.280" | 0.688" | 0.625" |
| 6900-05-08-O | Steel | 5/16" | 1/2-20" | 1/2-14" | 0.234" | 0.460" | 1.30" | 1.58" | 1.000" | 0.812" |
| 6900-06-04-O | Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.210" | 1.14" | 1.26" | 0.688" | 0.688" |
| 6900-06-06-O | Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.320" | 1.17" | 1.46" | 0.875" | 0.688" |
| 6900-06-08-O | Steel | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.440" | 1.290" | 1.570" | 1.000" | 0.812" |
| 6900-08-04-O | Steel | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.210" | 1.170" | 1.360" | 0.688" | 0.875" |
| 6900-08-06-O | Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.320" | 1.23" | 1.40" | 0.875" | 0.875" |
| 6900-08-08-O | Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.460" | 1.30" | 1.55" | 1.000" | 0.875" |
| 6900-08-12-O | Steel | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.610" | 1.41" | 1.76" | 1.250" | 1.000" |
| 6900-10-06-O | Steel | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.340" | 1.26" | 1.47" | 0.875" | 1.000" |
| 6900-10-08-O | Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.440" | 1.40" | 1.61" | 1.000" | 1.000" |
| 6900-10-12-O | Steel | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.635" | 1.37" | 1.72" | 1.250" | 1.000" |
| 6900-12-06-O | Steel | 3/4" | 1-1/16-12" | 3/8-18" | 0.609" | 0.320" | 1.410" | 1.620" | 0.875" | 1.250" |
| 6900-12-08-O | Steel | 3/4" | 1-1/16-12" | 1/2-14" | 0.609" | 0.440" | 1.45" | 1.73" | 1.000" | 1.250" |
| 6900-12-12-O | Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 0.609" | 1.60" | 1.95" | 1.250" | 1.250" |
| 6900-12-16-O | Steel | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.780" | 1.700" | 2.050" | 1.500" | 1.500" |
| 6900-14-12-O | Steel | 7/8" | 1-3/16-12" | 3/4-14" | 0.719" | 0.610" | 1.610" | 1.960" | 1.250" | 1.375" |
| 6900-16-08-O | Steel | 1" | 1-5/16-12" | 1/2-14" | 0.844" | 0.440" | 1.620" | 1.900" | 1.000" | 1.500" |
| 6900-16-12-O | Steel | 1" | 1-5/16-12" | 3/4-14" | 0.844" | 0.610" | 1.73" | 2.08" | 1.250" | 1.500" |
| 6900-16-16-O | Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.780" | 1.71" | 2.06" | 1.500" | 1.500" |
| 6900-16-20-O | Steel | 1" | 1-5/16-12" | 1-1/4-11-1/2" | 0.844" | 1.085" | 1.900" | 2.320" | 1.875" | 1.875" |
| 6900-20-12-O | Steel | 1-1/4" | 1-5/8-12" | 3/4-14" | 1.078" | 0.610" | 1.66" | 2.01" | 1.250" | 1.875" |
| 6900-20-16-O | Steel | 1-1/4" | 1-5/8-12" | 1-11-1/2" | 1.078" | 0.780" | 1.79" | 2.14" | 1.500" | 1.875" |
| 6900-20-20-O | Steel | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.010" | 1.010" | 1.790" | 2.210" | 1.875" | 1.875" |
| 6900-24-20-O | Steel | 1-1/2" | 1-7/8-12" | 1-1/4-11-1/2" | 1.312" | 1.087" | 1.75" | 2.17" | 1.875" | 2.125" |
| 6900-24-24-O | Steel | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.250" | 1.95" | 2.370" | 2.125" | 2.125" |
| 6900-32-32-O | Steel | 2" | 2-1/2-12" | 2-11-1/2" | 1.781" | 1.781" | 2.000" | 2.420" | 2.625" | 2.750" |
| 6900-04-04-O-SS | Stainless Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.210" | 1.11" | 1.30" | 0.688" | 0.562" |
| 6900-06-06-O-SS | Stainless Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.320" | 1.17" | 1.46" | 0.875" | 0.688" |
