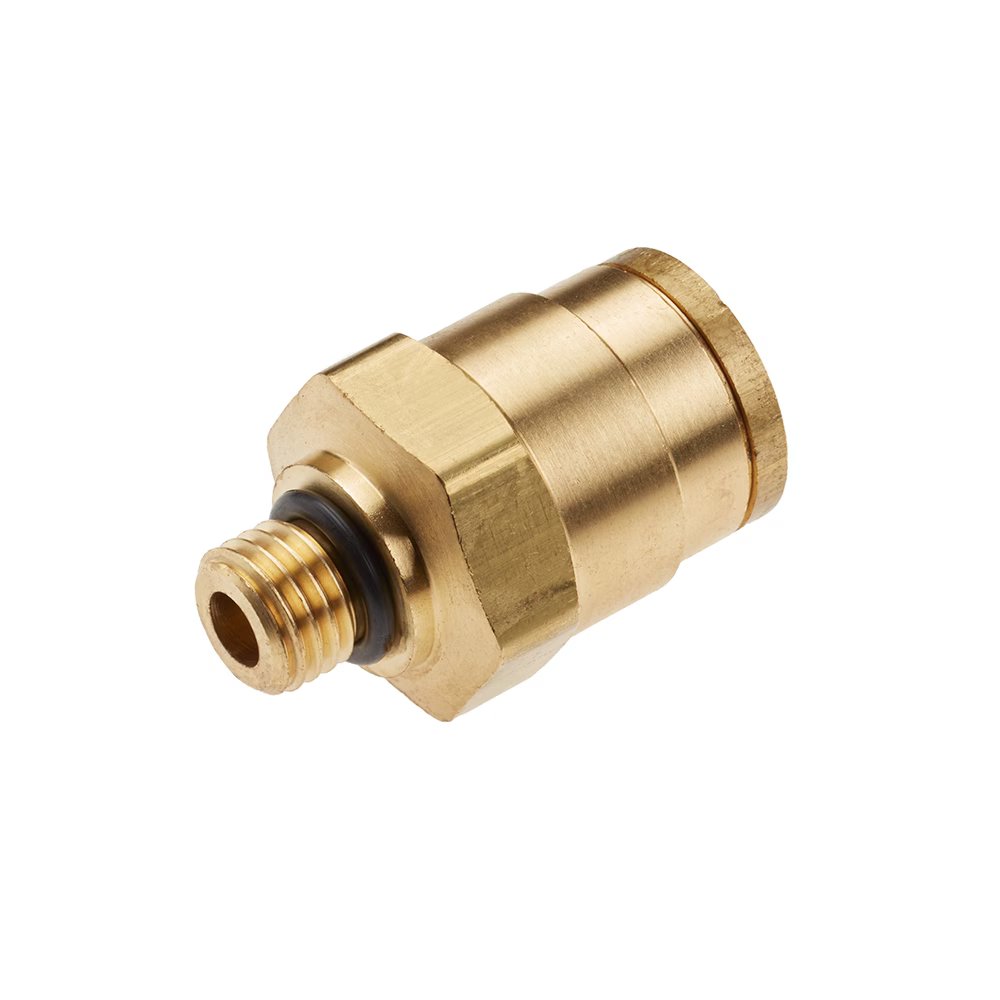

68PTC-6-MA16 by Parker | Threaded Fitting | 3/8" Push-to-Connect Connector x M16X1.5 Male M16 Thread | 7/8" Hex | 1.23" Length | Straight | Brass
by Parker Hannifin
PTC Brass Fittings:Male Connector Metric Straight Thread 68PTC
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $21.18 |
| 40–79 | $19.15 |
| 80+ | $16.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size | Thread* | Hex (B) | L |
| 68PTC-4-MA12 | 1/4" | MA12 | 11/16" | 1.14" |
| 68PTC-4-MA16 | 1/4" | MA16 | 7/8" | 1.21" |
| 68PTC-4-MA22 | 1/4" | MA22 | 1-1/16" | 1.21" |
| 68PTC-6-MA12 | 3/8" | MA12 | 3/4" | 1.31" |
| 68PTC-6-MA16 | 3/8" | MA16 | 7/8" | 1.23" |
| 68PTC-6-MA22 | 3/8" | MA22 | 1-1/16" | 0.74" |
| 68PTC-8-MA12 | 1/2" | MA12 | 7/8" | 1.37" |
| 68PTC-8-MA16 | 1/2" | MA16 | 7/8" | 1.39" |
| 68PTC-8-MA22 | 1/2" | MA22 | 1-1/16" | .91" |
| 68PTC-10-MA12 | 5/8" | MA12 | 1" | 1.67" |
| 68PTC-10-MA16 | 5/8" | MA16 | 1" | 1.61" |
| 68PTC-10-MA22 | 5/8" | MA22 | 1-1/16" | 1.37" |
*Per ISO 4039
