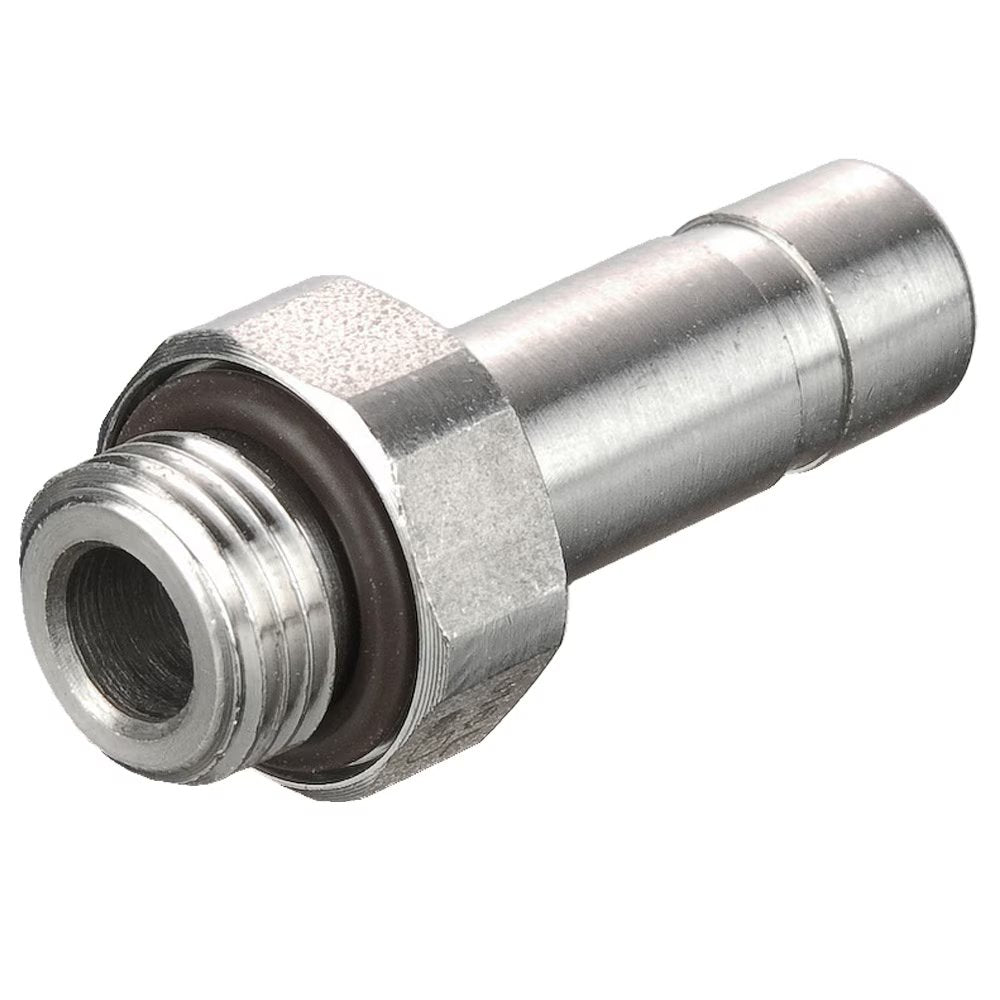

68PLSSP-6M-4G by Parker | Prestolok PLS Push-to-Connect Fittings | 6 mm Standpipe x 1/4" Male BSPP Threads | 17 mm Height | 17 mm Width | Straight | Stainless Steel | Pack of 2
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLSSP Male Standpipe - Metric Tube to BSPP, M5
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $113.33 |
| 30–59 | $102.48 |
| 60+ | $90.42 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size | BSPP | F | H |
| 68PLSSP-4M-M5 | 4 mm | M5X0.8 | 7 mm | 23.50 mm |
| 68PLSSP-4M-2G | 4 mm | 1/8" | 13 mm | 22.00 mm |
| 68PLSSP-6M-2G | 6 mm | 1/8" | 13 mm | 24.00 mm |
| 68PLSSP-6M-4G | 6 mm | 1/4" | 17 mm | 24.00 mm |
| 68PLSSP-8M-2G | 8 mm | 1/8" | 13 mm | 25.00 mm |
| 68PLSSP-8M-4G | 8 mm | 1/4" | 17 mm | 27.00 mm |
| 68PLSSP-10M-4G | 10 mm | 1/4" | 17 mm | 32.00 mm |
| 68PLSSP-10M-6G | 10 mm | 3/8" | 21 mm | 27.00 mm |
| 68PLSSP-12M-4G | 12 mm | 1/4" | 17 mm | 33.00 mm |
| 68PLSSP-12M-6G | 12 mm | 3/8" | 21 mm | 33.00 mm |
