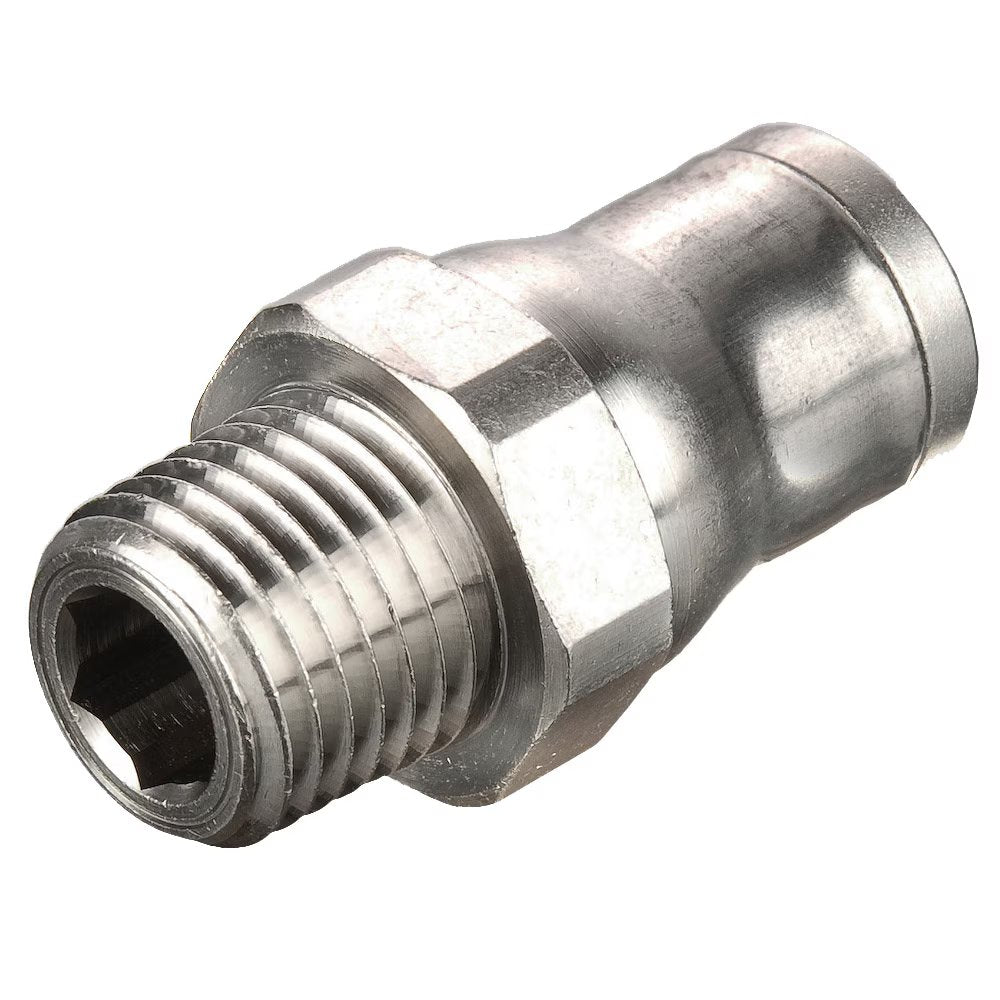

68PLM-4M-4 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 5/32" Connector x 1/4" Male NPT Thread | .59" Height | Straight | Electroless Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:68PLM Male Connector Inch Tube to NPT/UNF
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $74.92 |
| 20–59 | $67.75 |
| 60+ | $59.78 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | NPT / UNF | F1 | F2 | H | K |
| 68PLM-4M-0 | 5/32" | 10-32" | 10 mm | 2.5 mm | .61" | .43" |
| 68PLM-4M-2 | 5/32" | 1/8" | 11 mm | 3.0 mm | .59" | .43" |
| 68PLM-4M-4 | 5/32" | 1/4" | 14 mm | 3.0 mm | .59" | .47" |
| 68PLM-4-0 | 1/4" | 10-32" | 13 mm | 2.5 mm | .75" | .55" |
| 68PLM-4-2 | 1/4" | 1/8" | 13 mm | 4.0 mm | .67" | .55" |
| 68PLM-4-4 | 1/4" | 1/4" | 14 mm | 4.0 mm | .67" | .59" |
| 68PLM-4-6 | 1/4" | 3/8" | 18 mm | 5.0 mm | .67" | .77" |
| 68PLM-6-2 | 3/8" | 1/8" | 18 mm | 4.0 mm | .97" | .77" |
| 68PLM-6-4 | 3/8" | 1/4" | 18 mm | 7.0 mm | .95" | .77" |
| 68PLM-6-6 | 3/8" | 3/8" | 18 mm | 8.0 mm | .91" | .77" |
| 68PLM-6-8 | 3/8" | 1/2" | 22 mm | 8.0 mm | .95" | .94" |
| 68PLM-8-6 | 1/2" | 3/8" | 22 mm | 9.0 mm | .95" | .94" |
| 68PLM-8-8 | 1/2" | 1/2" | 22 mm | 10.0 mm | .95" | .94" |
