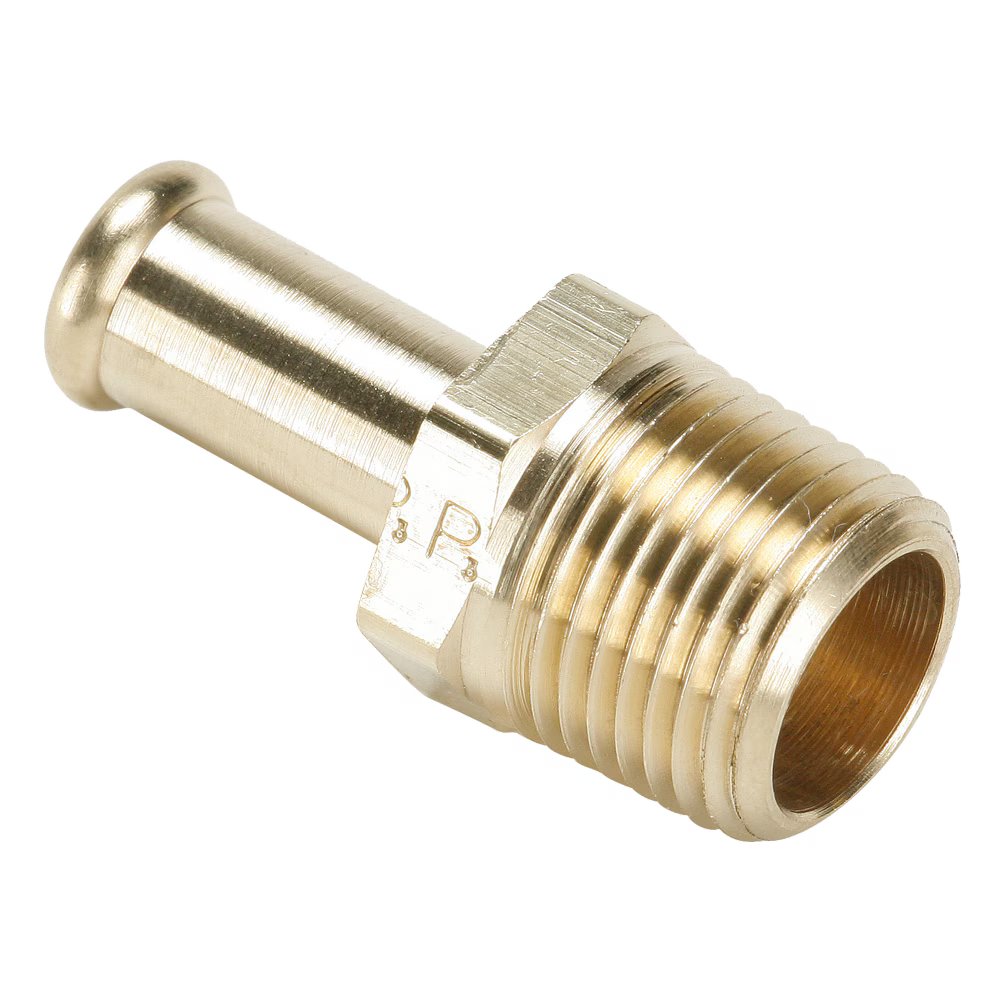

68HB-12-8 by Parker | Hose Barb Fittings | 3/4" Beaded Hose Barb x 1/2" Male Pipe Thread | 7/8" Hex | 1.98" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Hose Barb Fittings:Beaded Hose Barb to Male Pipe 68HB
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $122.48 |
| 20–59 | $110.76 |
| 60+ | $97.73 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Temperature Range: | -40° to +160° F (-40° to +71.1° C) |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ID Hose Size | Pipe Thread | Hex (C) | L | M | Flow Diameter (D) |
| 68HB-6-6 | 3/8" | 3/8" | 11/16" | 1.53" | .78" | .281" |
| 68HB-8-4 | 1/2" | 1/4" | 5/8" | 1.56" | .78" | .375" |
| 68HB-8-6 | 1/2" | 3/8" | 11/16" | 1.53" | .78" | .406" |
| 68HB-8-8 | 1/2" | 1/2" | 7/8" | 1.84" | .78" | .406" |
| 68HB-10-6 | 5/8" | 3/8" | 3/4" | 1.62" | .88" | .501" |
| 68HB-10-8 | 5/8" | 1/2" | 7/8" | 1.92" | .88" | .501" |
| 68HB-12-8 | 3/4" | 1/2" | 7/8" | 1.98" | .88" | .564" |
| 68HB-12-12 | 3/4" | 3/4" | 1-1/16" | 2.04" | .97" | .625" |
| 68HB-16-12 | 1" | 3/4" | 1-1/8" | 2.12" | 1.00" | .750" |
| 68HB-16-16 | 1" | 1" | 1-3/8/" | 2.31" | 1.00" | .812" |
