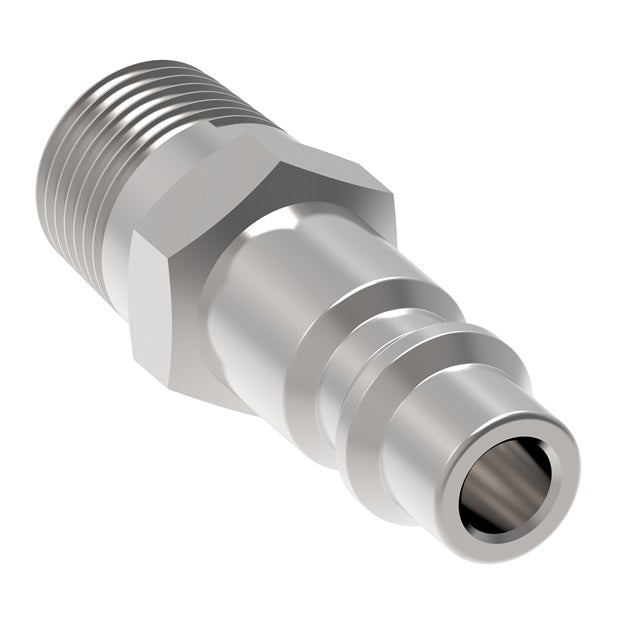

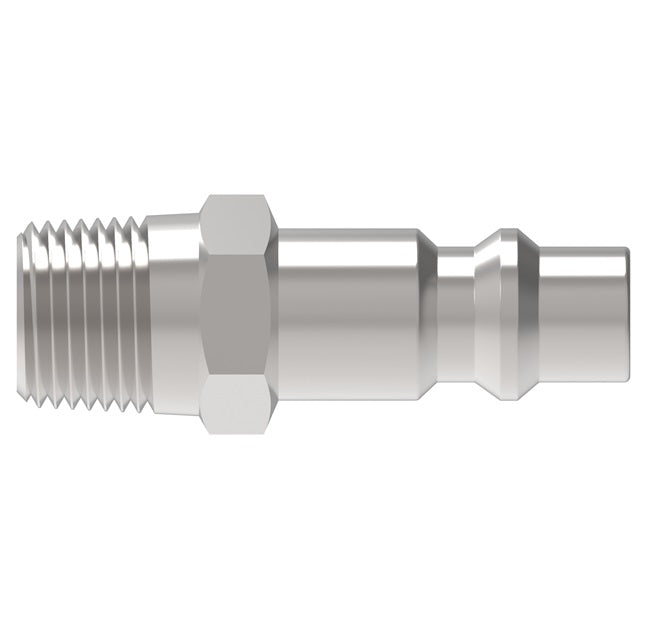

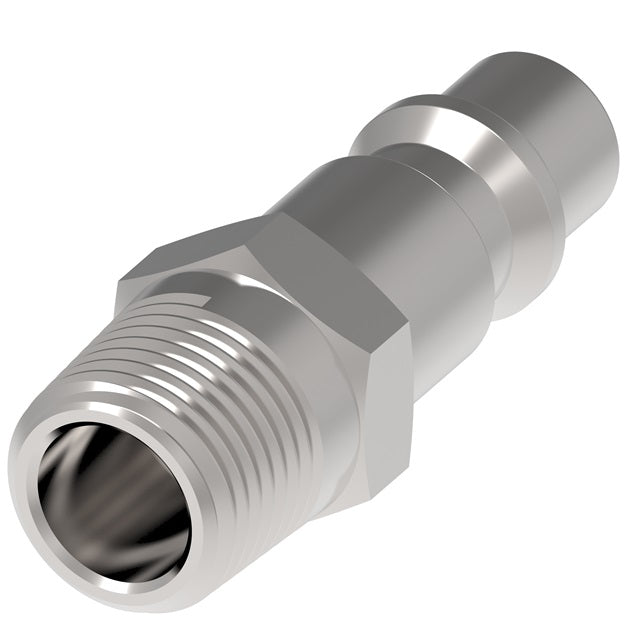

68A Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | 1" Male NPTF x 3/4" Body Size | Plug | Steel
68A Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | 1" Male NPTF x 3/4" Body Size | Plug | Steel
68A Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | 1" Male NPTF x 3/4" Body Size | Plug | Steel

68A Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | 1" Male NPTF x 3/4" Body Size | Plug | Steel

Sale price$48.62

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 6000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.
Buy More, Save More!
Quantity Price Each
10–39 $45.70
40–79 $41.33
80+ $36.47
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 6000 Series
Shape:

Straight
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
6000 3/4" 15 bar 220 psi 60 bar 880 psi 3,540 lpm 125 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
6000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
6300 Socket/Female 3/4" 1/2" 1/2-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6500 Socket/Female 3/4" 3/4" 3/4-14 Male NPTF Brass 1 2.94"
(74.68mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6700E Socket/Female 3/4" 1" 1-11-1/2 Male NPTF Brass 1 3.13"
(79.50mm)		 1.90"
(48.26mm)		 1.31"
(33.27mm)
6000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
64A Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Steel 2 2.31"
(58.67mm)		 1.15"
(29.21mm)		 1.00"
(25.40mm)
64GA** Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Steel 2 3.26"
(82.80mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)
66AE Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Steel 2 2.38"
(60.45mm)		 1.23"
(31.24mm)		 1.06"
(26.92mm)
66GA** Plug/Male 3/4" 3/4" 3/4-14 Male NPTF Steel 2 3.26"
(82.80mm)		 1.19"
(30.23mm)		 1.06"
(26.92mm)
68A Plug/Male 3/4" 1" 1-11-1/2 Male NPTF Steel 2 2.56"
(65.02mm)		 1.51"
(38.35mm)		 1.31"
(33.27mm)
B64A Plug/Male 3/4" 1/2" 1/2-14 Male NPTF Brass 2 2.31"
(58.67mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)

** With Bleeder Ball Check - Reduces Hose Whip

>
