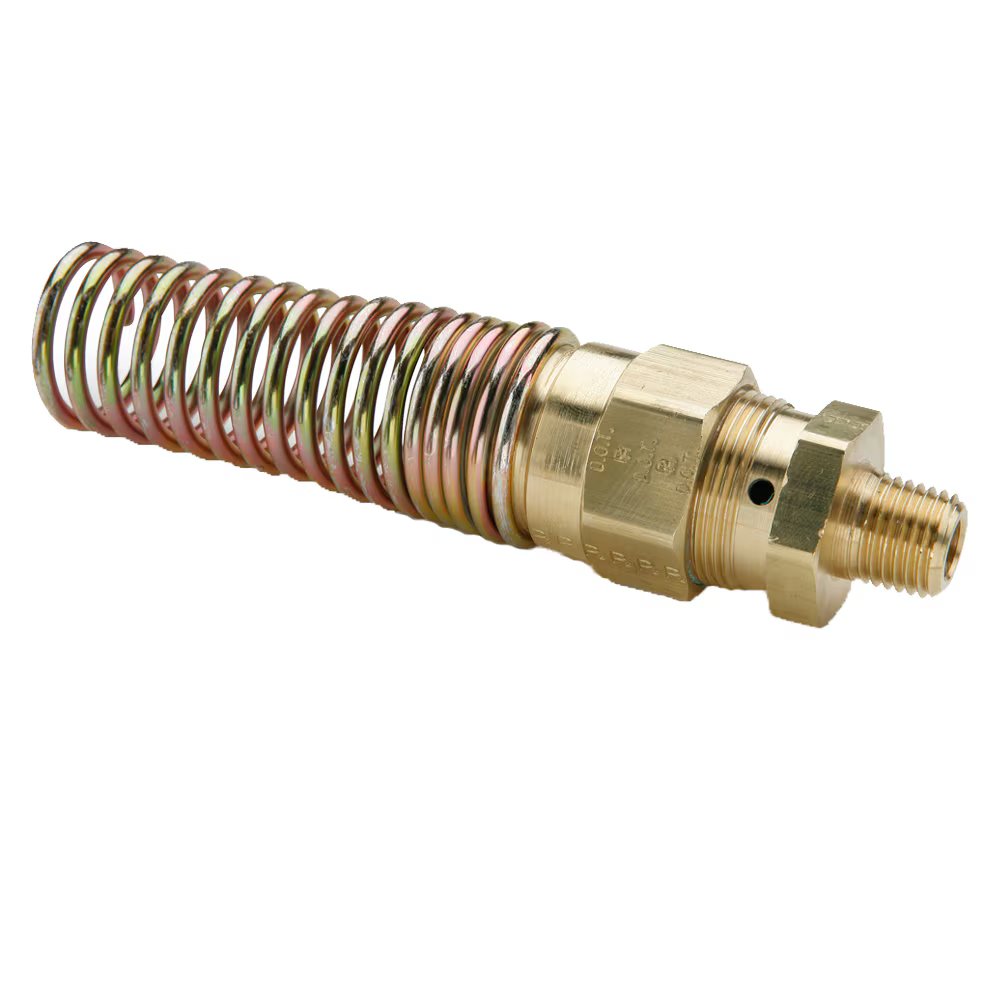

68RBSG-8-6 by Parker | Air Brake Hose Ends Fittings | 1/2" Hose Size Connector x 3/8" Male Pipe Thread w/ Spring Guard | 1-1/8" Hex | 5.0" Length | Straight | Brass | Pack of 4
by Parker Hannifin
Air Brake Hose Ends Fittings:Male Connector with Spring Guard 68RBSG
Package Quantity: 4 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $110.19 |
| 30–59 | $99.64 |
| 60+ | $87.92 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 400 PSI (27.5 bar) |
| Temperature Range: | -65° to +250° F (-53.8° to +121.1° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose Size | Pipe Thread | Hex | L | M | D |
| 68RBSG-6-4 | 3/8" | 1/4" | 31/32" | 4.8" | 1.91" | .281" |
| 68RBSG-6-6 | 3/8" | 3/8" | 31/32" | 4.8" | 1.91" | .281" |
| 68RBSG-6-8 | 3/8" | 1/2" | 31/32" | 4.9" | 2.06" | .281" |
| 68RBSG-8-6 | 1/2" | 3/8" | 1-1/8" | 5.0" | 1.91" | .390" |
| 68RBSG-8-8 | 1/2" | 1/2" | 1-1/8" | 5.2" | 2.07" | .390" |
