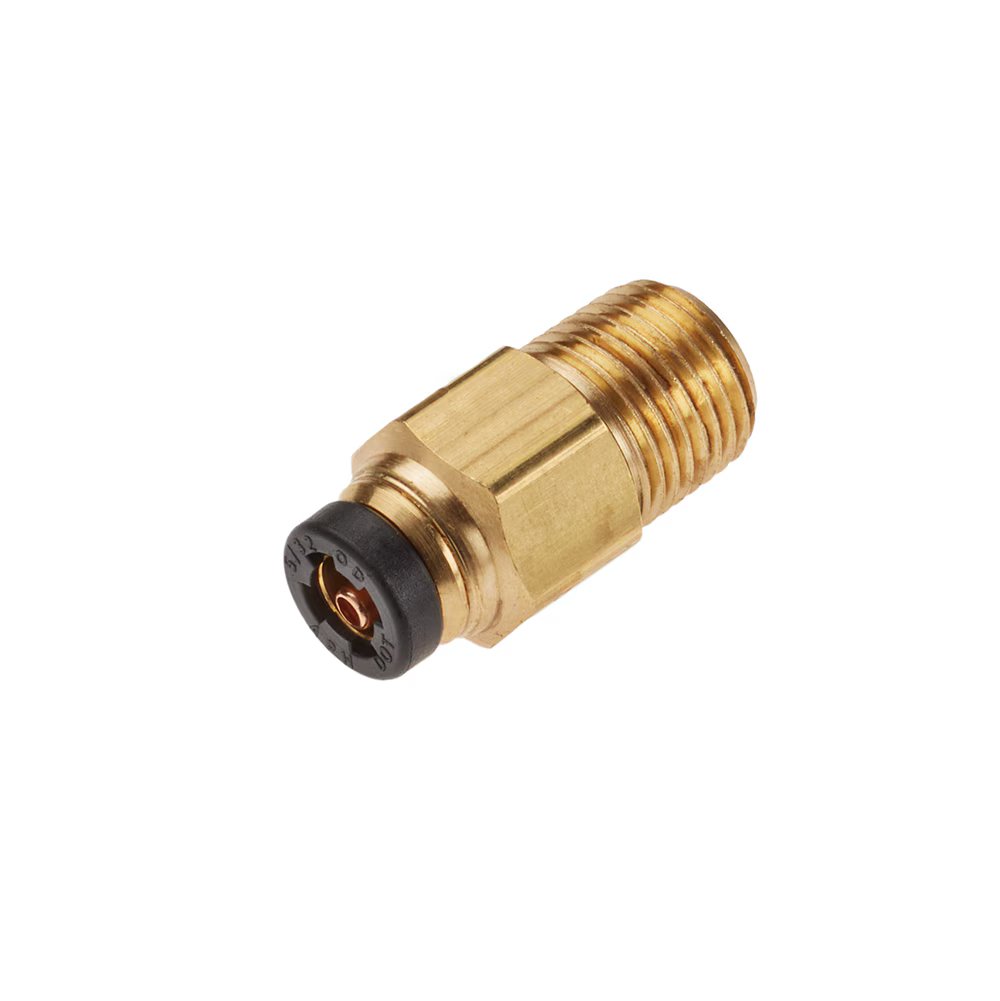

68PTC-3-1 by Parker | Threaded Fitting | 3/16" Push-to-Connect Connector x 1/16" Male NPT Pipe Thread | 7/16" Hex | .93" Length | Straight | Brass | Pack of 10
by Parker Hannifin
PTC Brass Fittings:Male Connector 68PTC
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $186.62 |
| 30–59 | $168.75 |
| 60+ | $148.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | Hex | L |
| 68PTC-5/32-1* | 5/32" | 1/16" | 7/16" | .84" |
| 68PTC-5/32-2* | 5/32" | 1/8" | 7/16" | .92" |
| 68PTC-5/32-4* | 5/32" | 1/4" | 9/16" | 1.02" |
| 68PTC-3-1* | 3/16" | 1/16" | 7/16" | .93" |
| 68PTC-3-2* | 3/16" | 1/8" | 7/16" | .85" |
| 68PTC-3-4* | 3/16" | 1/4" | 9/16" | 1.02" |
| 68PTC-4-2 | 1/4" | 1/8" | 1/2" | .98" |
| 68PTC-4-4 | 1/4" | 1/4" | 9/16" | 1.02" |
| 68PTC-4-6 | 1/4" | 3/8" | 11/16" | .93" |
| 68PTC-4-8 | 1/4" | 1/2" | 7/8" | 1.12" |
| 68PTC-6-2 | 3/8" | 1/8" | 11/16" | 1.29" |
| 68PTC-6-4 | 3/8" | 1/4" | 11/16" | 1.44" |
| 68PTC-6-6 | 3/8" | 3/8" | 11/16" | 1.44" |
| 68PTC-6-8 | 3/8" | 1/2" | 7/8" | 1.63" |
| 68PTC-8-4 | 1/2" | 1/4" | 7/8" | 1.51" |
| 68PTC-8-6 | 1/2" | 3/8" | 7/8" | 1.63" |
| 68PTC-8-8 | 1/2" | 1/2" | 7/8" | 1.46" |
| 68PTC-10-6 | 5/8" | 3/8" | 1" | 1.74" |
| 68PTC-10-8 | 5/8" | 1/2" | 1" | 1.81" |
| 68PTC-12-8 | 3/4" | 1/2" | 1-1/8" | 1.89" |
| 68PTC-12-12 | 3/4" | 3/4" | 1/4" | 1.89" |
*5/32 and 3/16 with black button
