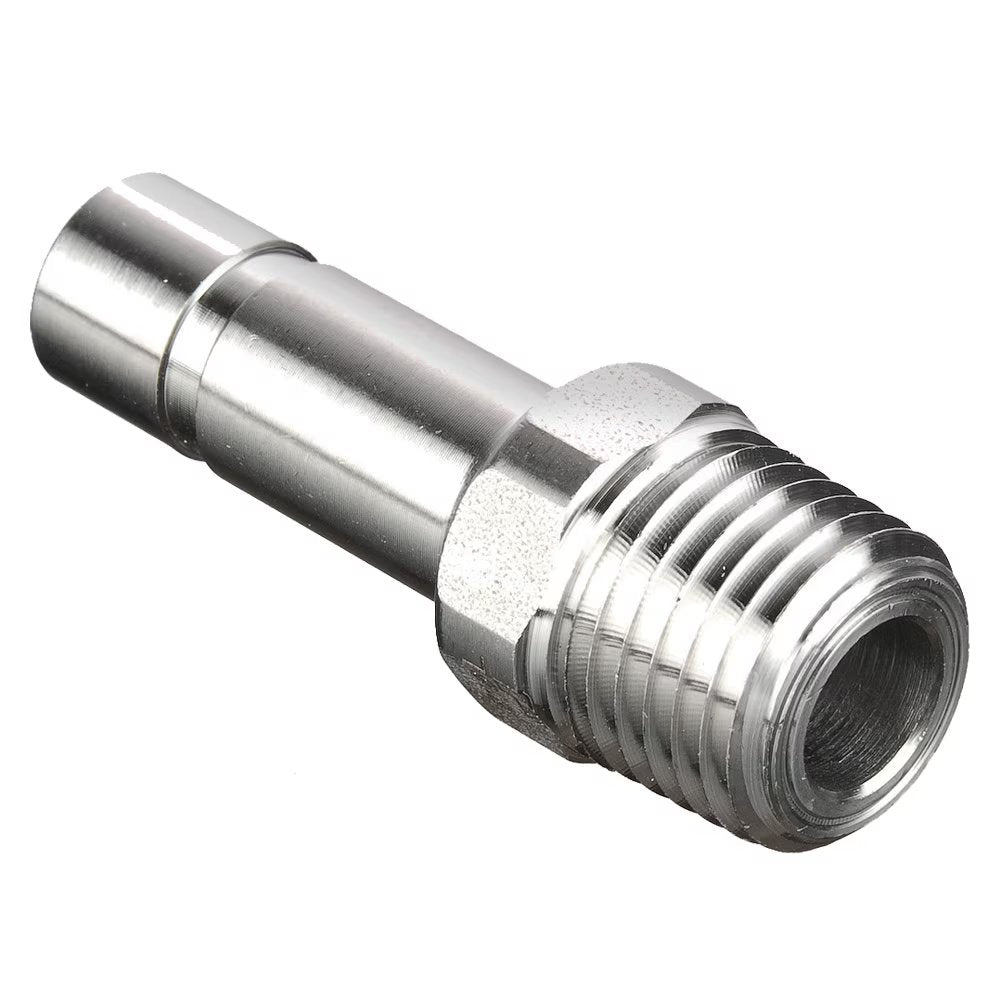

68PLSSP-8-4 by Parker | Prestolok PLS Push-to-Connect Fittings | 1/2" Standpipe x 1/4" Male NPT Threads | .75" Height | .75" Width | Straight | Stainless Steel | Pack of 2
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLSSP Male Standpipe - Inch Tube to NPT
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $118.61 |
| 30–59 | $107.25 |
| 60+ | $94.64 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size | NPT | F | H |
| 68PLSSP-4-2 | 1/4" | 1/8" | .39" | 1.02" |
| 68PLSSP-4-4 | 1/4" | 1/4" | .55" | 1.06" |
| 68PLSSP-6-4 | 3/8" | 1/4" | .75" | 1.26" |
| 68PLSSP-6-6 | 3/8" | 3/8" | .75" | 1.26" |
| 68PLSSP-8-4 | 1/2" | 1/4" | .75" | 1.42" |
| 68PLSSP-8-6 | 1/2" | 3/8" | .75" | 1.46" |
| 68PLSSP-8-8 | 1/2" | 1/2" | .87" | 1.46" |
