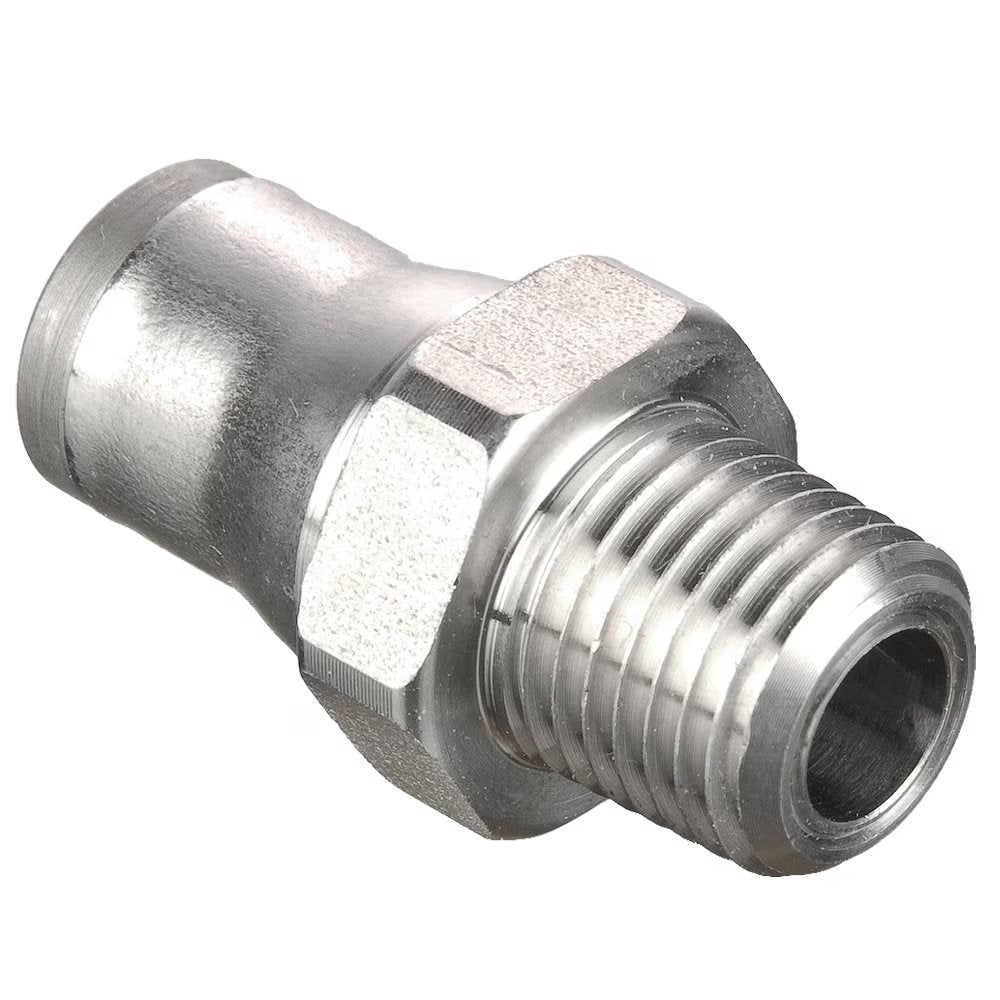

68PLS-8M-2 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 8mm Connector x 1/8" Male NPT Threads | 15mm Height | 15mm Width | Straight | Stainless Steel | Pack of 5
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLS Male Connector - Metric Tube to NPT
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $313.41 |
| 15–29 | $283.41 |
| 30+ | $250.07 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | NPT | F | F1 | H | K |
| 68PLS-4M-2 | 4 mm | 1/8" | 11 mm | 3 mm | 14.50 mm | 12.00 mm |
| 68PLS-6M-2 | 6 mm | 1/8" | 13 mm | 4 mm | 18.00 mm | 14.00 mm |
| 68PLS-6M-4 | 6 mm | 1/4" | 14 mm | 4 mm | 16.50 mm | 15.00 mm |
| 68PLS-8M-2 | 8 mm | 1/8" | 15 mm | 5 mm | 19.00 mm | 16.50 mm |
| 68PLS-8M-4 | 8 mm | 1/4" | 15 mm | 6 mm | 18.00 mm | 16.50 mm |
| 68PLS-10M-4 | 10 mm | 1/4" | 19 mm | 6 mm | 24.00 mm | 21.00 mm |
| 68PLS-10M-6 | 10 mm | 3/8" | 19 mm | 7 mm | 22.50 mm | 21.00 mm |
| 68PLS-12M-4 | 12 mm | 1/4" | 22 mm | 7 mm | 25.00 mm | 24.00 mm |
| 68PLS-12M-6 | 12 mm | 3/8" | 22 mm | 8 mm | 24.00 mm | 24.00 mm |
| 68PLS-12M-8 | 12 mm | 1/2" | 22 mm | 10 mm | 23.00 mm | 24.00 mm |
