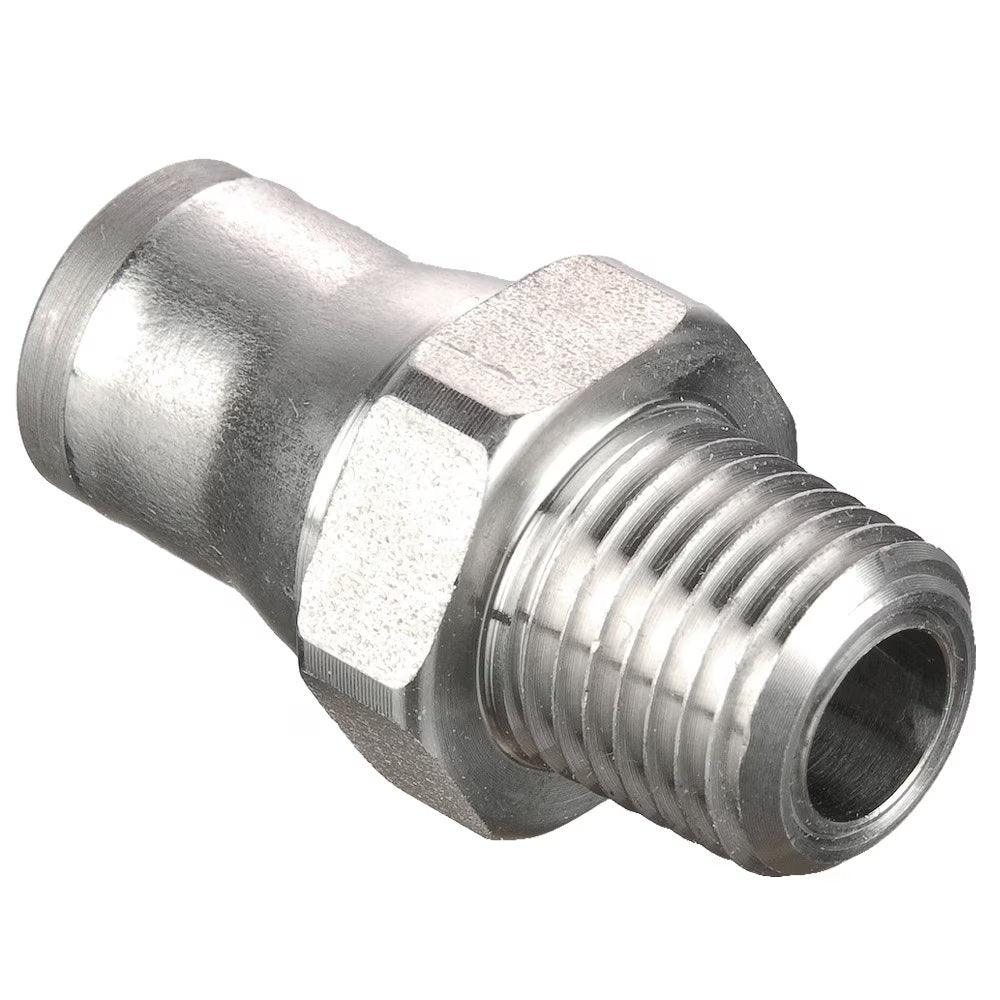

68PLS-6-4 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 3/8" Connector x 1/4" Male NPT Threads | 19mm Height | 19mm Width | Straight | Stainless Steel | Pack of 5
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLS Male Connector - Inch Tube to NPT,UNF
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $377.73 |
| 15–29 | $341.56 |
| 30+ | $301.38 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | NPT / UNF | F | F1 | H | K |
| 68PLS-3-2 | 3/16" | 1/8" | 10 mm | 3.0 mm | .61" | .43" |
| 68PLS-4-2 | 1/4" | 1/8" | 13 mm | 4.0 mm | .59" | .43" |
| 68PLS-4-4 | 1/4" | 1/4" | 14 mm | 4.0 mm | .69" | .59" |
| 68PLS-6-4 | 3/8" | 1/4" | 19 mm | 6.0 mm | .98" | .83" |
| 68PLS-6-6 | 3/8" | 3/8" | 19 mm | 7.0 mm | .94" | .83" |
| 68PLS-8-4 | 1/2" | 1/4" | 22 mm | 7.0 mm | 1.02" | .94" |
| 68PLS-8-6 | 1/2" | 3/8" | 22 mm | 8.0 mm | .98" | .94" |
| 68PLS-8-8 | 1/2" | 1/2" | 22 mm | 10.0 mm | .98" | .94" |
