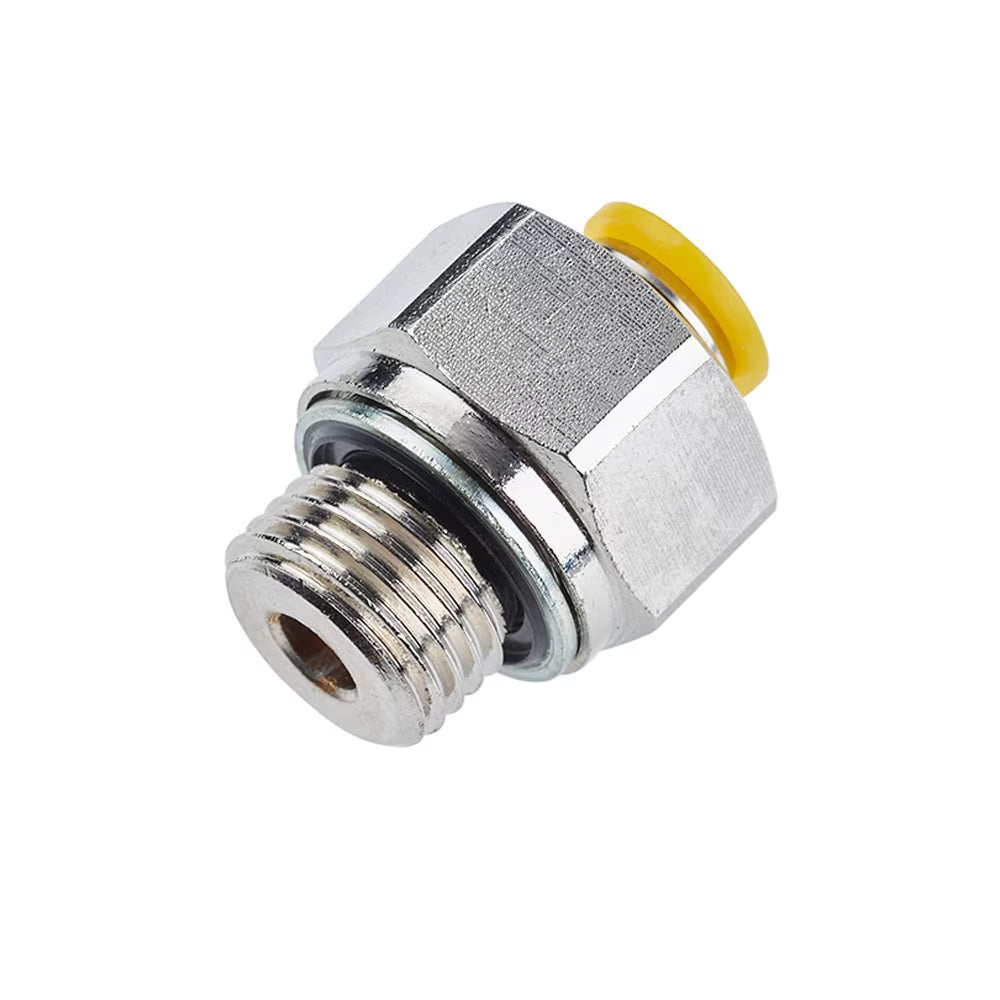

68PLP-10M-6G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 10mm Connector x 3/8" Male BSPP Thread | 7/8" Hex | 26.80mm Length | 7.925mm Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:68PLP Male Connector – BSPP
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $82.69 |
| 20–59 | $74.77 |
| 60+ | $65.98 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPP | Hex (C) | Length (L) | Flow Diameter (D) |
| 68PLP-4M-M5 | 4 mm | M5X0.8 | 3/8" | 21.15 mm | 2.693 mm |
| 68PLP-4M-2G | 4 mm | 1/8" | 9/16" | 23.22 mm | 3.175 mm |
| 68PLP-4M-4G | 4 mm | 1/4" | 3/4" | 29.32 mm | 3.175 mm |
| 68PLP-6M-M5 | 6 mm | M5X0.8 | 1/2" | 23.39 mm | 2.80 mm |
| 68PLP-6M-2G | 6 mm | 1/8" | 9/16" | 22.00 mm | 4.775 mm |
| 68PLP-6M-4G | 6 mm | 1/4" | 3/4" | 28.10 mm | 4.775 mm |
| 68PLP-6M-6G | 6 mm | 3/8" | 7/8" | 31.90 mm | 4.775 mm |
| 68PLP-8M-2G | 8 mm | 1/8" | 9/16" | 29.67 mm | 6.350 mm |
| 68PLP-8M-4G | 8 mm | 1/4" | 3/4" | 30.05 mm | 6.350 mm |
| 68PLP-8M-6G | 8 mm | 3/8" | 7/8" | 35.14 mm | 6.350 mm |
| 68PLP-10M-4G | 10 mm | 1/4" | 3/4" | 31.88 mm | 7.925 mm |
| 68PLP-10M-6G | 10 mm | 3/8" | 7/8" | 26.80 mm | 7.925 mm |
| 68PLP-10M-8G | 10 mm | 1/2" | 1-1/16" | 31.88 mm | 7.925 mm |
| 68PLP-12M-4G | 12 mm | 1/4" | 13/16" | 35.76 mm | 8.738 mm |
| 68PLP-12M-6G | 12 mm | 3/8" | 7/8" | 33.22 mm | 9.525 mm |
| 68PLP-12M-8G | 12 mm | 1/2" | 1-1/16" | 33.47 mm | 9.525 mm |
