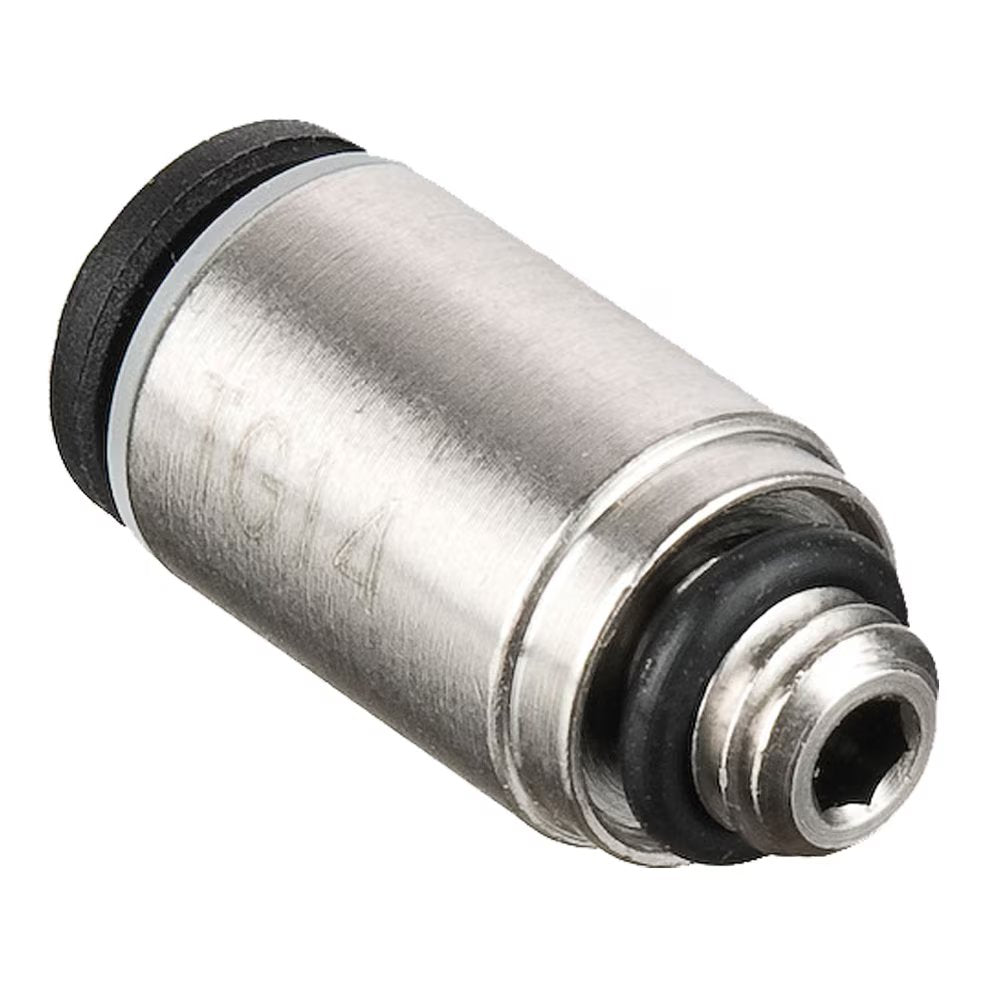

68LFR-6M-M7 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 6mm Connector x M7X1 Male M7 Thread | Straight | Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:68LFR Male Connector Metric Straight Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $90.59 |
| 30–59 | $81.91 |
| 60+ | $72.28 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | UNF (C) | E | F | H | K |
| 68LFR-4M-M7 | 4 mm | M7X1 | 4.6 mm | 3 mm | 14 mm | 9.95 mm |
| 68LFR-4M-M5 | 4 mm | M5X0.8 | 3.5 mm | 2.5 mm | 14.5 mm | 8.50 mm |
| 68LFR-6M-M7 | 6 mm | M7X1 | 4.6 mm | 3 mm | 16 mm | 9.90 mm |
