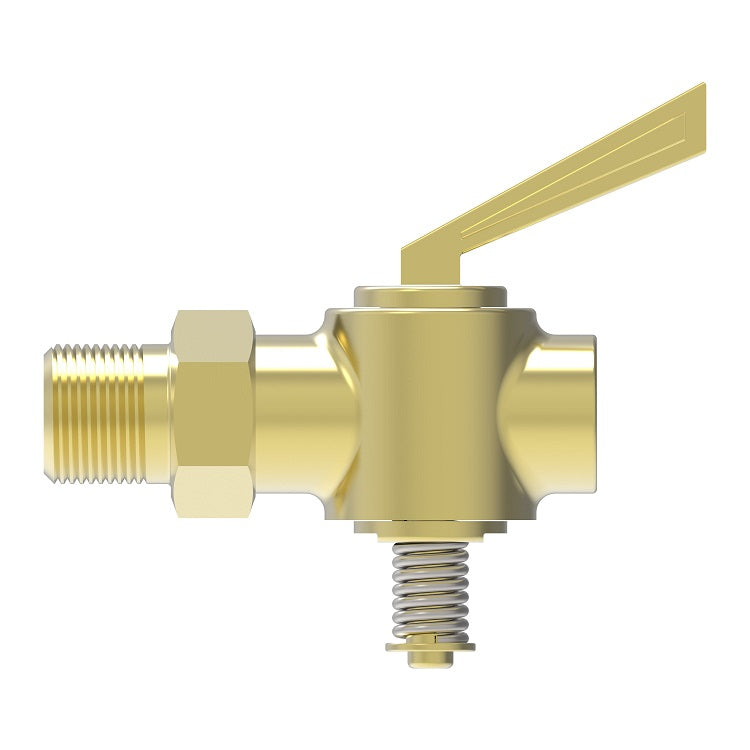

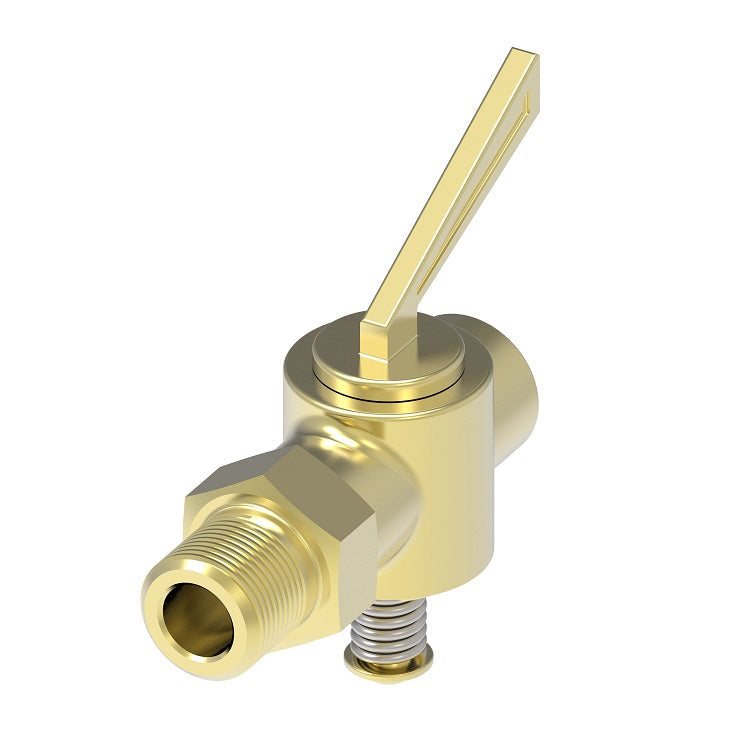

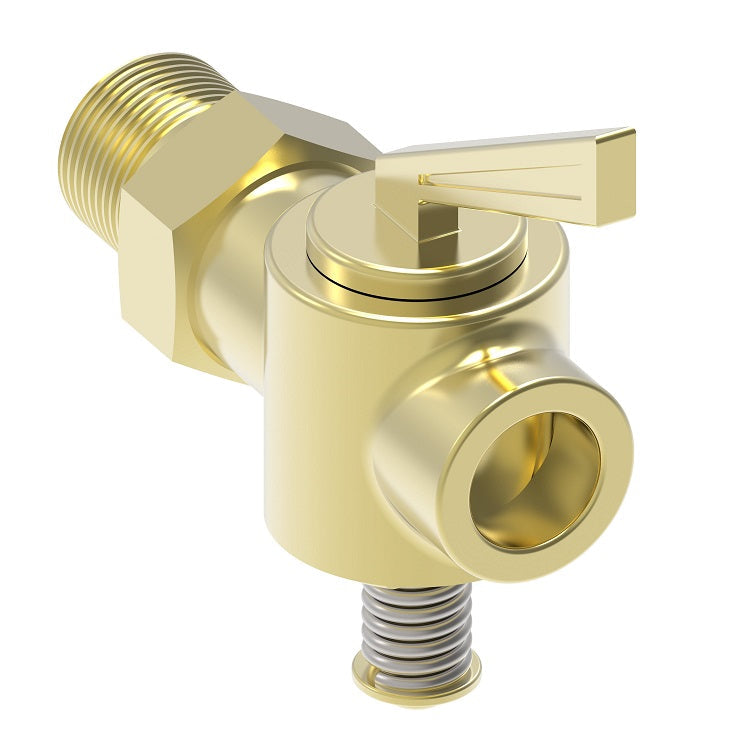

6892 by Danfoss | Ground Plug Drain | 1/4" Male MPT | Brass
6892 by Danfoss | Ground Plug Drain | 1/4" Male MPT | Brass
6892 by Danfoss | Ground Plug Drain | 1/4" Male MPT | Brass

6892 by Danfoss | Ground Plug Drain | 1/4" Male MPT | Brass

Sale price$15.52

Aeroquip® by Danfoss
Ground Plug Drain
Buy More, Save More!
Quantity Price Each
10–39 $14.59
40–79 $13.19
80+ $11.64
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male Male NPT
Material(s):
  • Brass
Applications:
  • Designed for automotive or industrial use.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies and handles.
Pressure:
  • 30 psi working pressure, except where noted.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For use with plastic tubing, refer to the tubing temperature range.
Conformance:
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
  • Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.
Brass
Part Number 		Male Pipe
Thread		 Hex
C		 L N M M1
6891 1/8" 9/16" 1.93" 0.75" 1.63" 0.87"
6892 1/4" 5/8" 1.62" 0.75" 1.75" 1.03"
6893 3/8" 11/16" 1.72" 1.00" 2.31" 1.22"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
