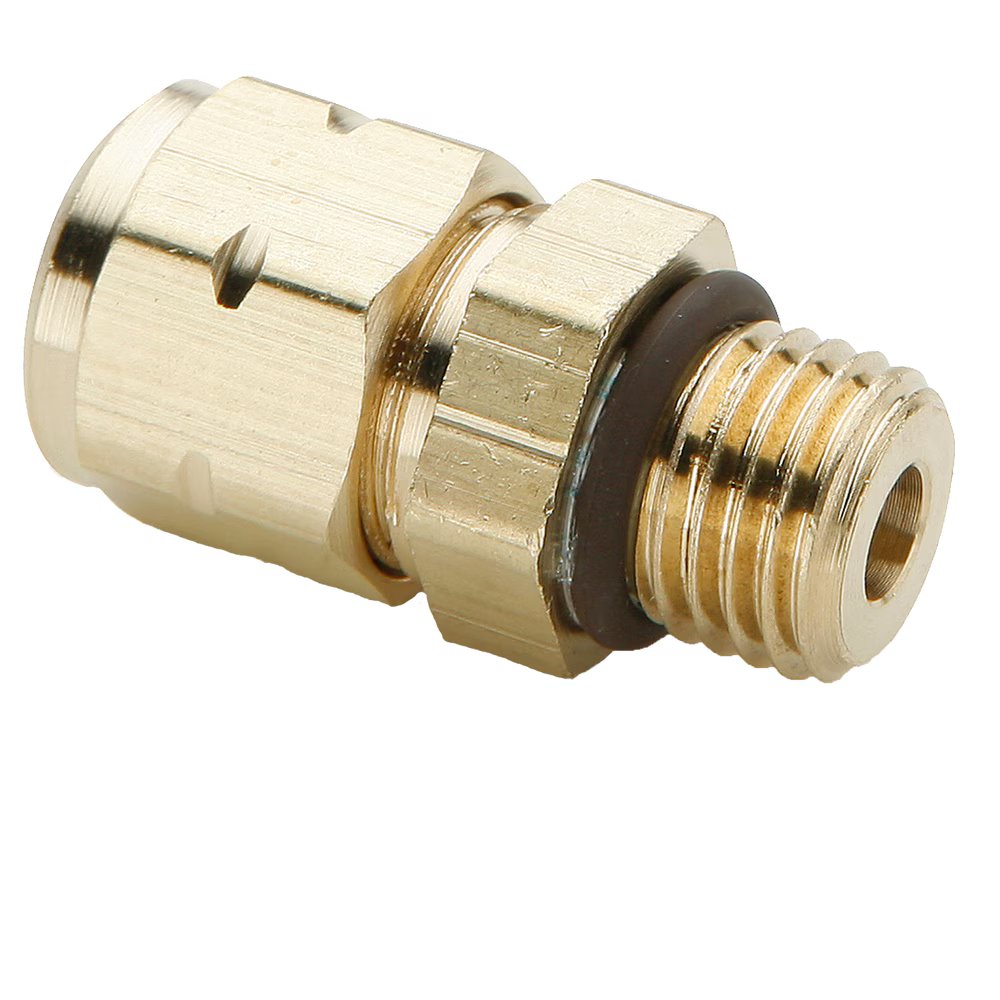

685VLV-5-4 by Parker | Vibra-Lok Fittings | 5/16" Tube Size Connector x 7/16" Male Thread | 5/8" Body Hex | 1.18" Length | Straight | Brass
by Parker Hannifin
Vibra-Lok Fittings:Male Connector 685VLV
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.37 |
| 40–79 | $13.00 |
| 80+ | $11.47 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Dependent on condition and tube size, refer to pressure chart |
 |
|
| Temperature Range: | -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | Straight Thread | Body Hex | L | M | N | D |
| 685VLV-4-4 | 1/4" | 7/16"-20 | 9/16" | 1.14" | .83" | .36" | .18" |
| 685VLV-5-4 | 5/16" | 7/16"-20 | 5/8" | 1.18" | .83" | .36" | .18" |
| 685VLV-6-4 | 3/8" | 7/16"-20 | 11/16" | 1.18" | .83" | .36" | .18" |
| 685VLV-6-6 | 3/8" | 9/16"-18 | 11/16" | 1.25" | .90" | .39" | .30" |
| 685VLV-8-8 | 1/2" | 3/4"-16 | 7/8" | 1.52" | 1.04" | .44" | .39" |
| 685VLV-10-10 | 5/8" | 7/8"-14 | 1-1/16" | 1.84" | 1.20" | .50" | .50" |
Note: Fluorocarbon seal & o-ring standard
