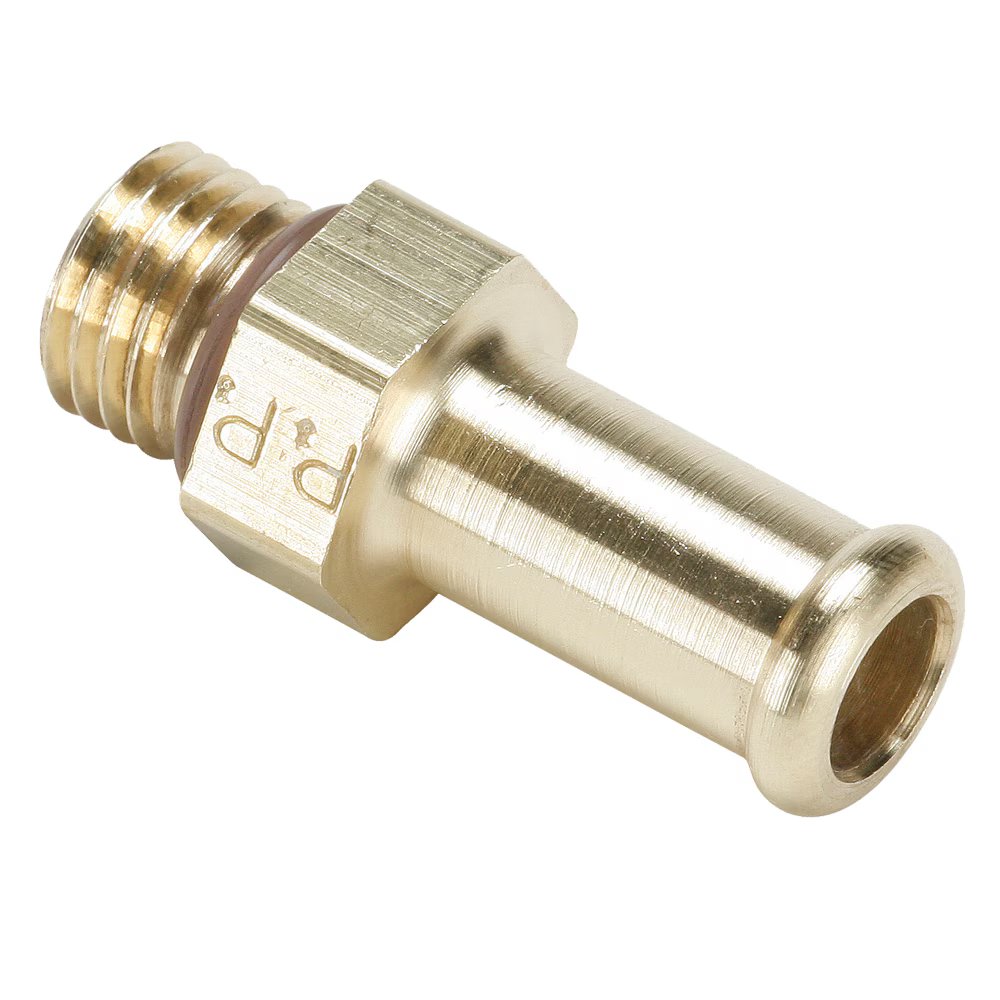

685HB-10-8 by Parker | Hose Barb Fittings | 5/8" Beaded Hose Barb x 3/4" SAE Straight Thread | 7/8" Hex | 1.56" Length | Straight | Brass | Pack of 2
by Parker Hannifin
Hose Barb Fittings:Beaded Hose Barb to SAE Straight Thread 685HB
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $14.79 |
| 40–79 | $13.37 |
| 80+ | $11.80 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Temperature Range: | -40° to +160° F (-40° to +71.1° C) |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ID Hose Size | Straight Thread | Hex (C) | L | M | Flow Diameter (D) |
| 685HB-4-4 | 1/4" | 7/16"-20 | 9/16" | 1.40" | .78" | .18" |
| 685HB-6-4 | 3/8" | 7/16"-20 | 9/16" | 1.39" | .78" | .18" |
| 685HB-8-8 | 1/2" | 3/4"-16 | 7/8" | 1.48" | .78" | .40" |
| 685HB-10-8 | 5/8" | 3/4"-16 | 7/8" | 1.56" | .78" | .40" |
| 685HB-12-8 | 3/4" | 3/4"-16 | 7/8" | 1.75" | .97" | .40" |
| 685HB-12-12 | 3/4" | 1-1/16"-12 | 1-1/4" | 1.82" | .97" | .62" |
| 685HB-16-8 | 1" | 3/4"-16 | 1-1/8" | 1.79" | .97" | .40" |
| 685HB-16-12 | 1" | 1-1/16"-12 | 1-1/4" | 1.99" | .97" | .62" |
Note: Fluorocarbon o-ring is standard
