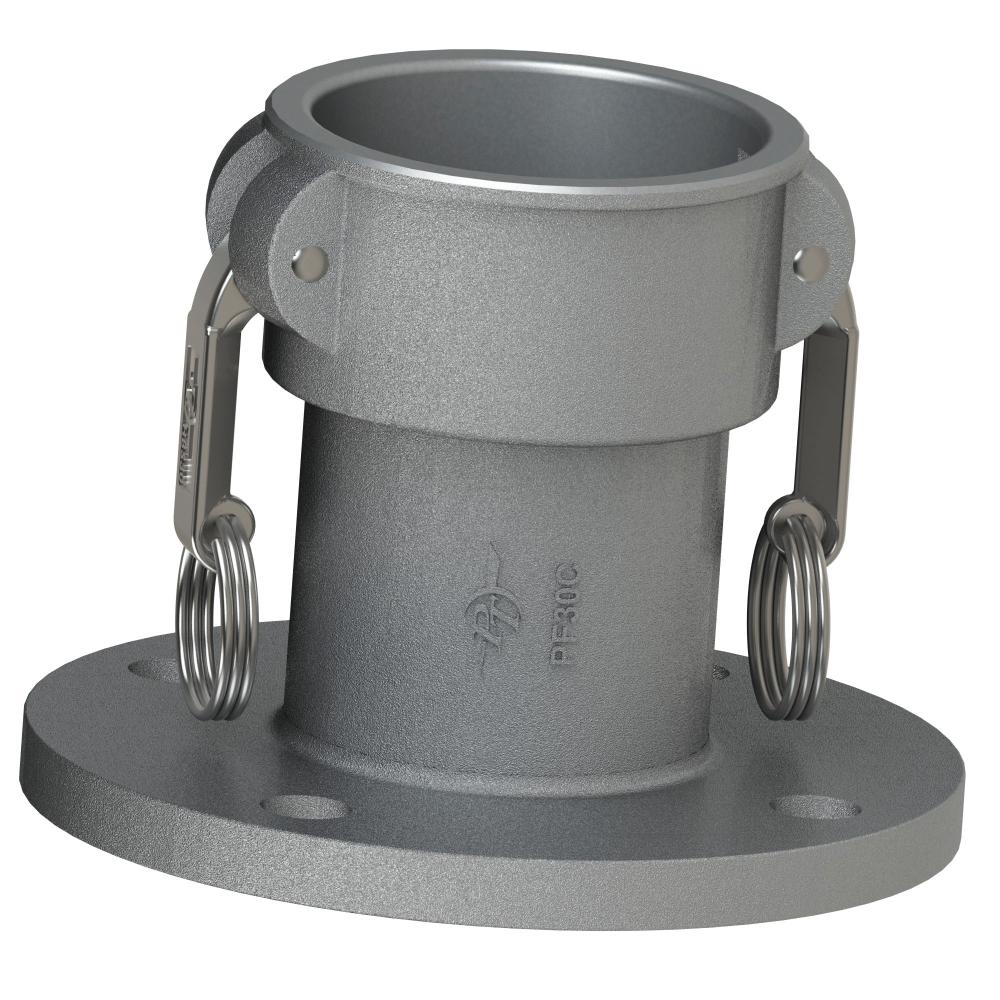

68543000 (PF30C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 3" Coupler x 3" 150# Pipe Flange | Ductile Iron
PT Coupling
Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | Ductile Iron
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $223.15 |
| 20–59 | $201.78 |
| 60+ | $178.04 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Flange Size |
O. D. with Cam Arms Extended (A) |
Overall Length (C) |
Inside Diameter (E) |
Outside Diameter (F) |
Bolt Hole Diameter (J) |
Number of Holes (K) |
Bolt Circle Diameter (L) |
Max. Allowable Working Press. (PSI)* |
| PF30C | 68543000 | 3" | 3" | 9.56" | 5.82" | 2.90" | 7.50" | 0.75" | 4 | 6.00" | 200 PSI |
| PF40C | 68544000 | 4" | 4" | 10.66" | 5.39" | 3.60" | 9.00" | 0.75" | 8 | 7.50" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
