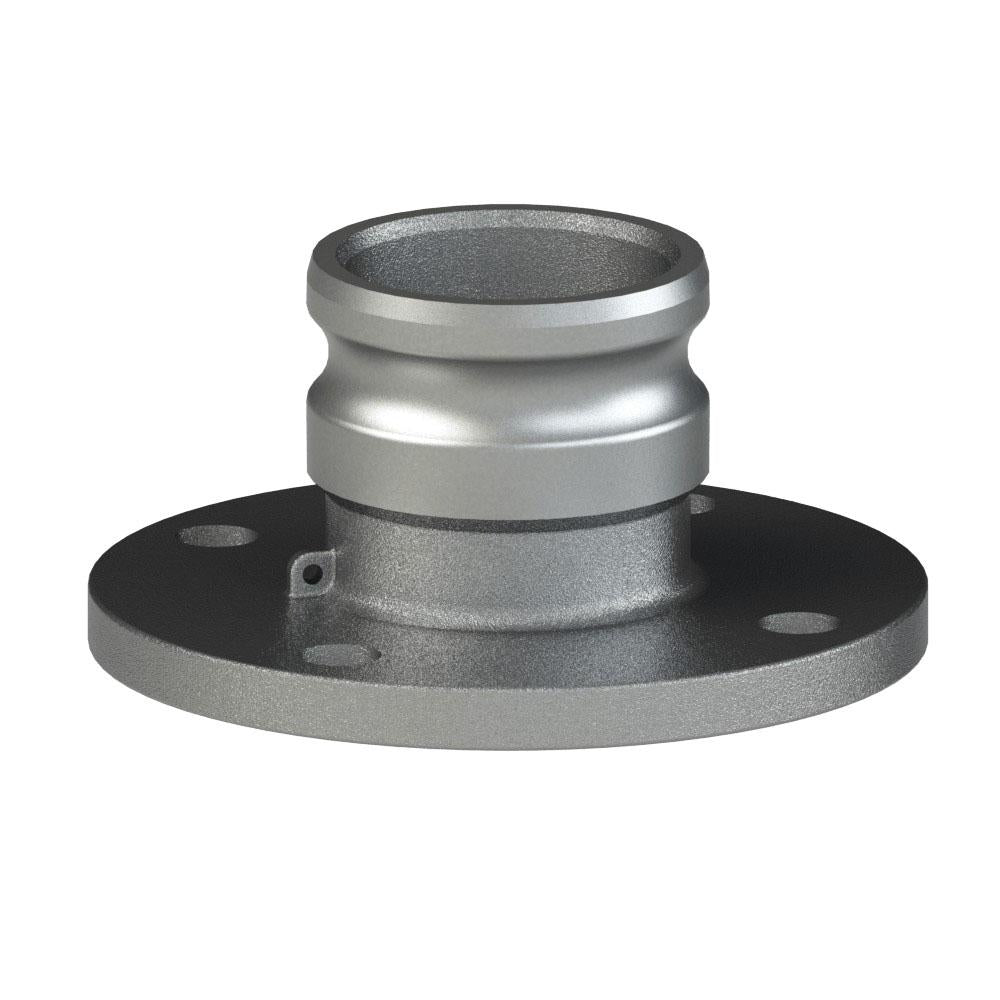

68523040 (PF30X40A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 3" Adapter x 4" 150# Pipe Flange | Ductile Iron
PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Ductile Iron
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $822.90 |
| 15–29 | $744.12 |
| 30+ | $656.57 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Flange Size |
Overall Length (C) |
Inside Diameter (E) |
Outside Diameter (F) |
Bolt Hole Diameter (J) |
Number of Holes (K) |
Bolt Circle Diameter (L) |
Max. Allowable Working Press. (PSI)* |
Weight |
| PF30A | 68523000 | 3" | 3" | 3.69" | 2.78" | 7.50" | 0.75" | 4 | 6.00" | 200 PSI | 8.125 lbs. |
| PF30X40A | 68523040 | 3" | 4" | 3.69" | 2.78" | 9.00" | 0.75" | 4 | 6.00" | 150 PSI | - |
| PF40A | 68524000 | 4" | 4" | 4.00" | 3.78" | 9.00" | 0.75" | 8 | 7.50" | 150 PSI | 12.34 lbs. |
| PF50A | 68525000 | 5" | 5" | 4.44" | 4.79" | 10.00" | 0.88" | 8 | 8.50" | 75 PSI | - |
| PF60A | 68526000 | 6" | 6" | 4.50" | 5.56" | 11.00" | 0.88" | 8 | 9.50 | 75 PSI | 23.34 lbs. |
| PF80A | 68528000 | 8" | 8" | 5.38" | 7.80" | 13.5" | 0.88" | 8 | 11.75" | 50 PSI | 36.645 lbs. |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
