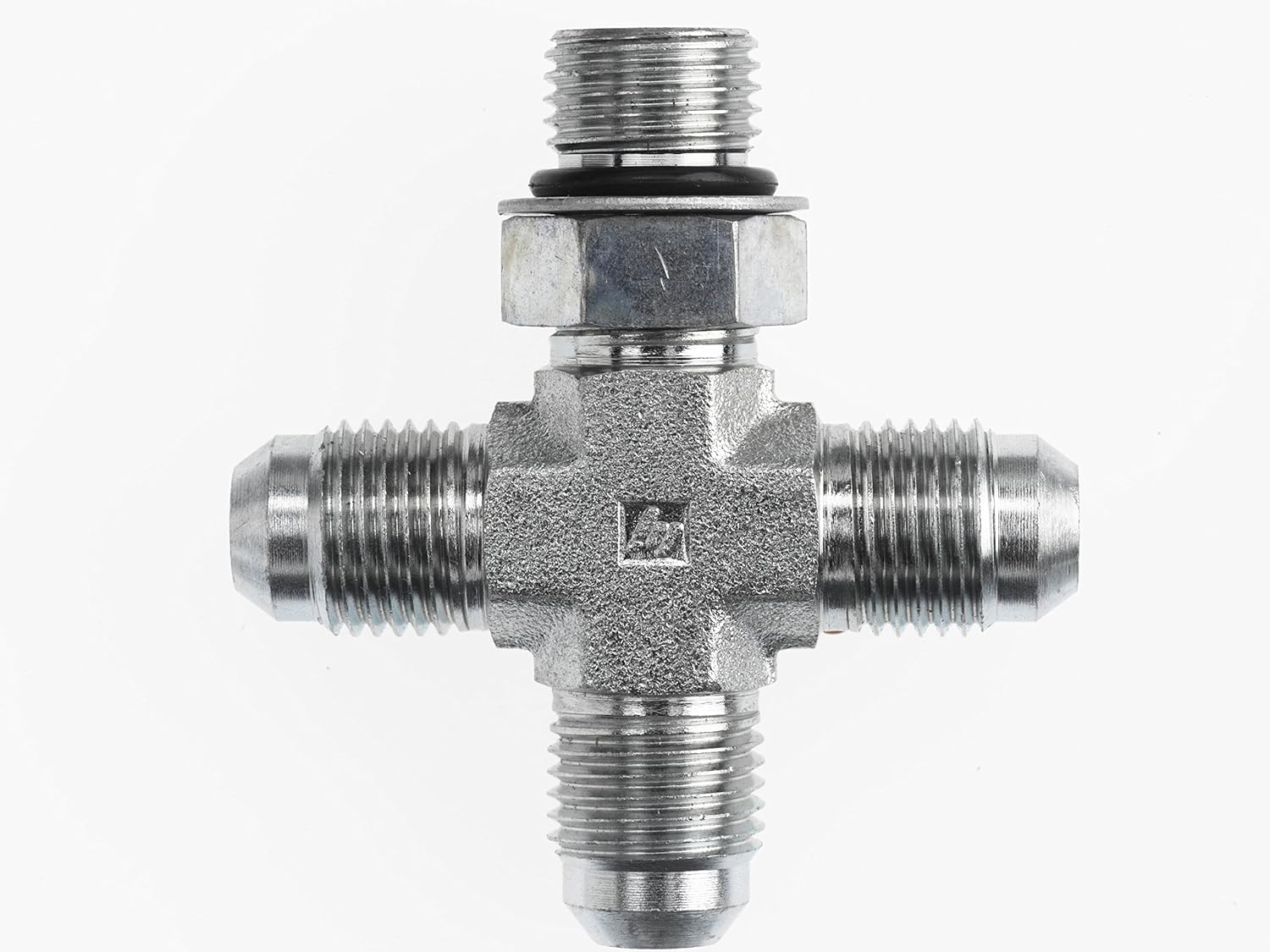

6850-06-06-04-06-NWO-FG by Brennan Inc. | -06 Male JIC x -06 Male JIC x -04 Male O-Ring Boss x -06 Male JIC | Cross | Forged Steel

6850-06-06-04-06-NWO-FG by Brennan Inc. | -06 Male JIC x -06 Male JIC x -04 Male O-Ring Boss x -06 Male JIC | Cross | Forged Steel

Sale price$25.09

Brennan Inc.
Tube Fittings & Adapters: 6850-NWO - Male JIC x Male JIC x Male O-Ring Boss x Male JIC Cross
Buy More, Save More!
Quantity Price Each
10–39 $23.58
40–79 $21.33
80+ $18.82
Discounts applied in cart/checkout.

Product Data:

Shape:

Cross

Ends Configuration:
  • 3/8in Male JIC
  • 3/8in Male JIC
  • 1/4in Male O-Ring Boss
  • 3/8in Male JIC
  • Some Ends Match
Material(s):
  • Steel
Part Number Material Tube O.D. B1 SAE37° B2 SAE37° B3 SAE ORB B4 SAE37Deg B1 Drill B2 Drill B3 Drill B4 Drill M7 Length M Length C Hex Y Flats
6850-06-06-04-06-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 7/16-20" 9/16-18" 0.297" 0.297" 0.172" 0.297" 1.190" 1.060" 0.562" 0.562"
6850-06-06-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 9/16-18" 0.297" 0.297" 0.297" 0.297" 1.250" 1.060" 0.688" 0.562"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
