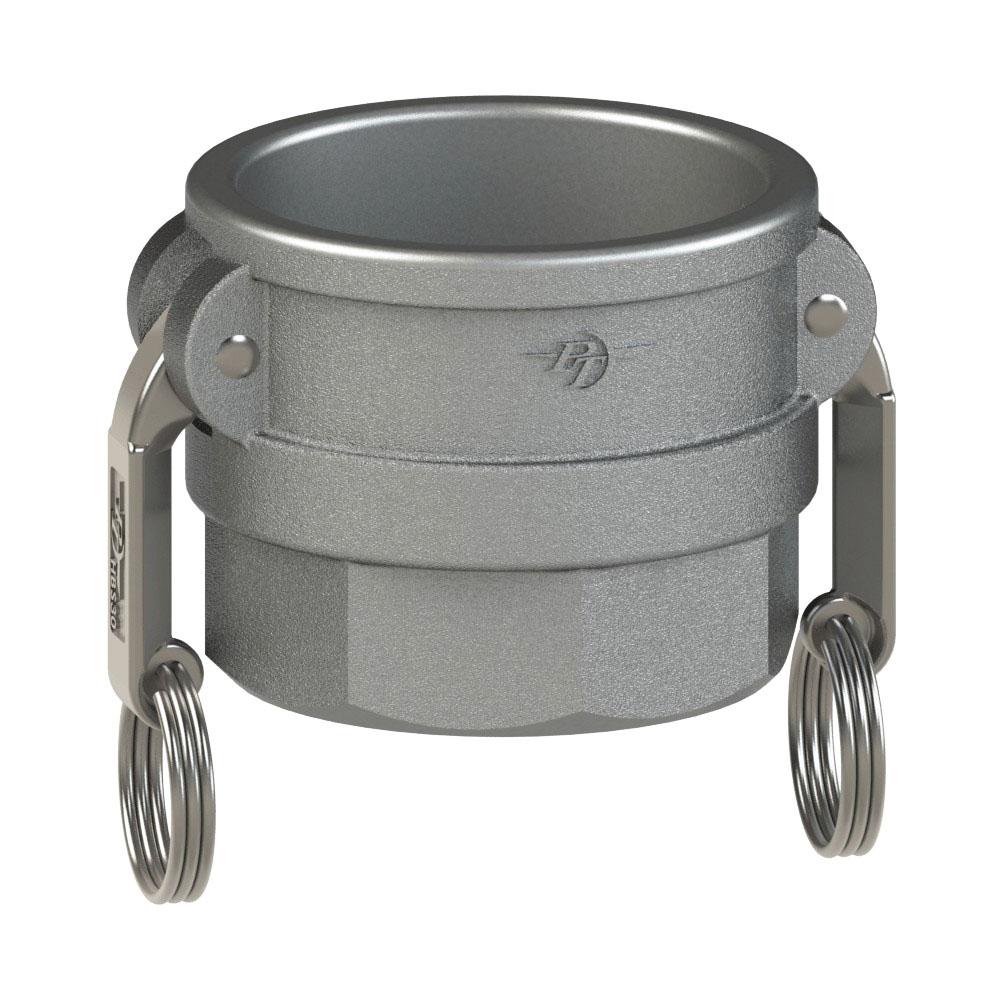

68366000 (60DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 6" Coupler x 6" Female NPSH | Ductile Iron | Buna Fuel Resistant & Buna-N Seals
PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | Ductile Iron | Buna Fuel Resistant & Buna-N Seals
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $177.97 |
| 20–59 | $160.93 |
| 60+ | $142.00 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Female NPSH Thread |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 40DS | 68364000 | 4" | 4" | 10.66" | 6.56" | 3.90" | 3.60" | 150 PSI |
| 60DS | 68366000 | 6" | 6" | 16.26" | 10.16" | 4.40" | 5.50" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
