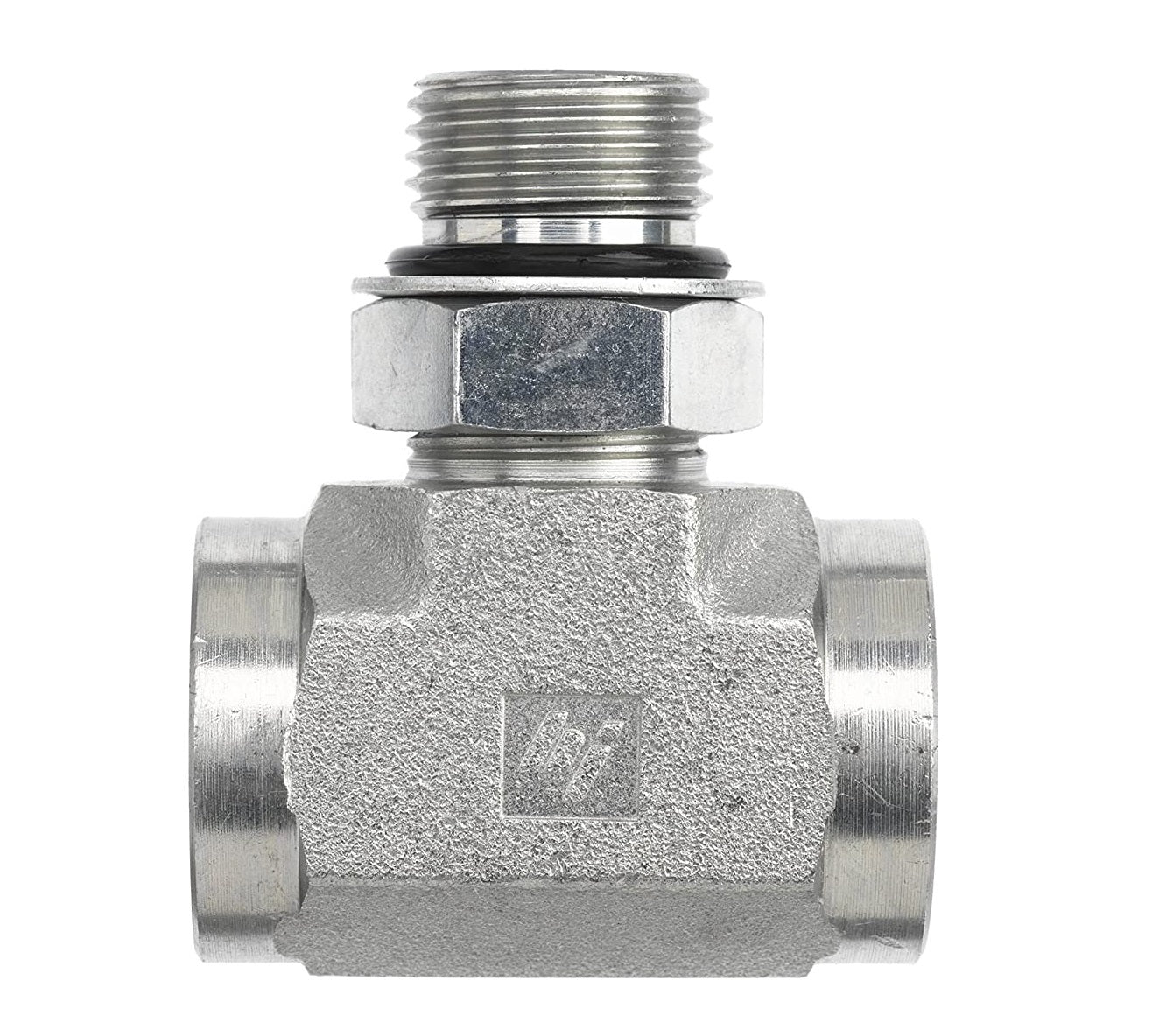

6832-04-04-04-NWO-FG by Brennan Inc. | -04 Female O-Ring Boss x -04 Female O-Ring Boss x -04 Male Adjustable O-Ring Boss | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6832-NWO - Female O-Ring Boss x Female O-Ring Boss x Male Adjustable O-Ring Boss Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.03 |
| 40–79 | $13.59 |
| 80+ | $11.99 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE ORB |
B2 SAE ORB |
B3 SAE ORB |
B3 Drill |
M1 Length |
N2 Length |
M7 Length |
C Hex |
Y Flats |
| 6832-04-04-04-NWO-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.630" | 0.630" | 1.230" | 0.563" | 0.750" |
| 6832-06-06-06-NWO-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.297" | 0.750" | 0.750" | 1.380" | 0.688" | 0.875" |
| 6832-08-06-08-NWO-FG | Forged Steel | - | - | - | - | - | - | - | - | - | - |
| 6832-08-08-08-NWO-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.391" | 0.880" | 0.880" | 1.590" | 0.875" | 1.062" |
| 6832-10-10-10-NWO-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 7/8-14" | 0.484" | 1.020" | 1.020" | 1.810" | 1.000" | 1.062" |
| 6832-12-12-12-NWO-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.609" | 1.210" | 1.210" | 2.000" | 1.250" | 1.312" |
| 6832-16-16-16-NWO-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.844" | 1.330" | 1.330" | 2.250" | 1.500" | 1.625" |
