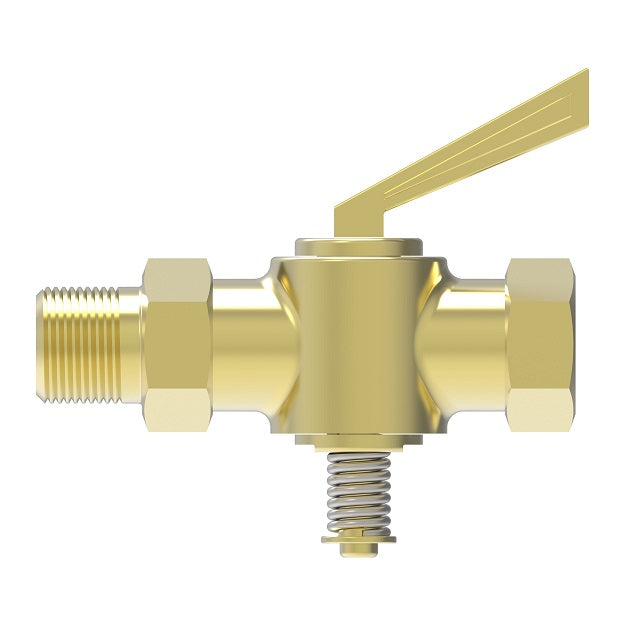

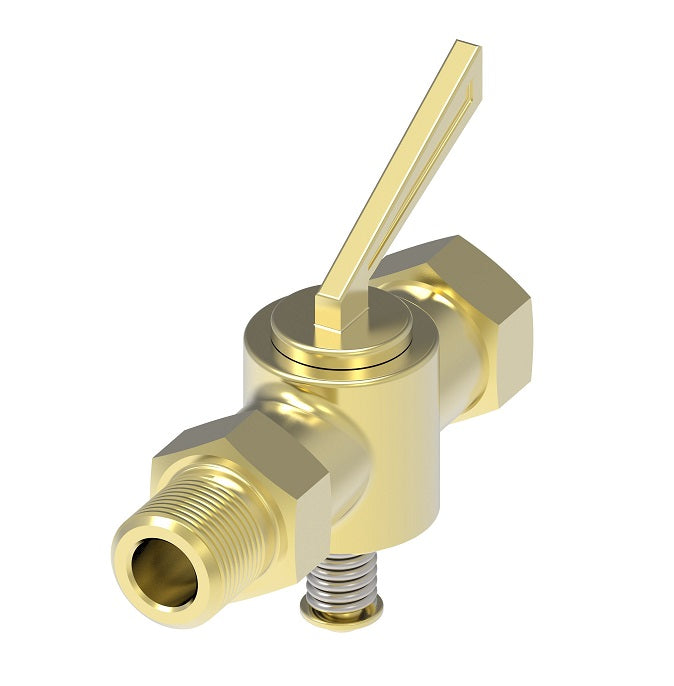

6829 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/4" Male NPTF x 1/4" Female NPTF | Brass
6829 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/4" Male NPTF x 1/4" Female NPTF | Brass
6829 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/4" Male NPTF x 1/4" Female NPTF | Brass

6829 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/4" Male NPTF x 1/4" Female NPTF | Brass

Sale price$17.44
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Designed for automotive or industrial use.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies and handles.
Pressure:
  • 30 psi working pressure, except where noted.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For use with plastic tubing, refer to the tubing temperature range.
Conformance:
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
  • Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.
Brass
Part Number 		Male Pipe Thread Female Pipe Thread L M
6824 1/8" 1/8" 2.00" 1.88"
6829 1/4" 1/4" 2.12" 1.88"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 1/4in Female NPTF
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
