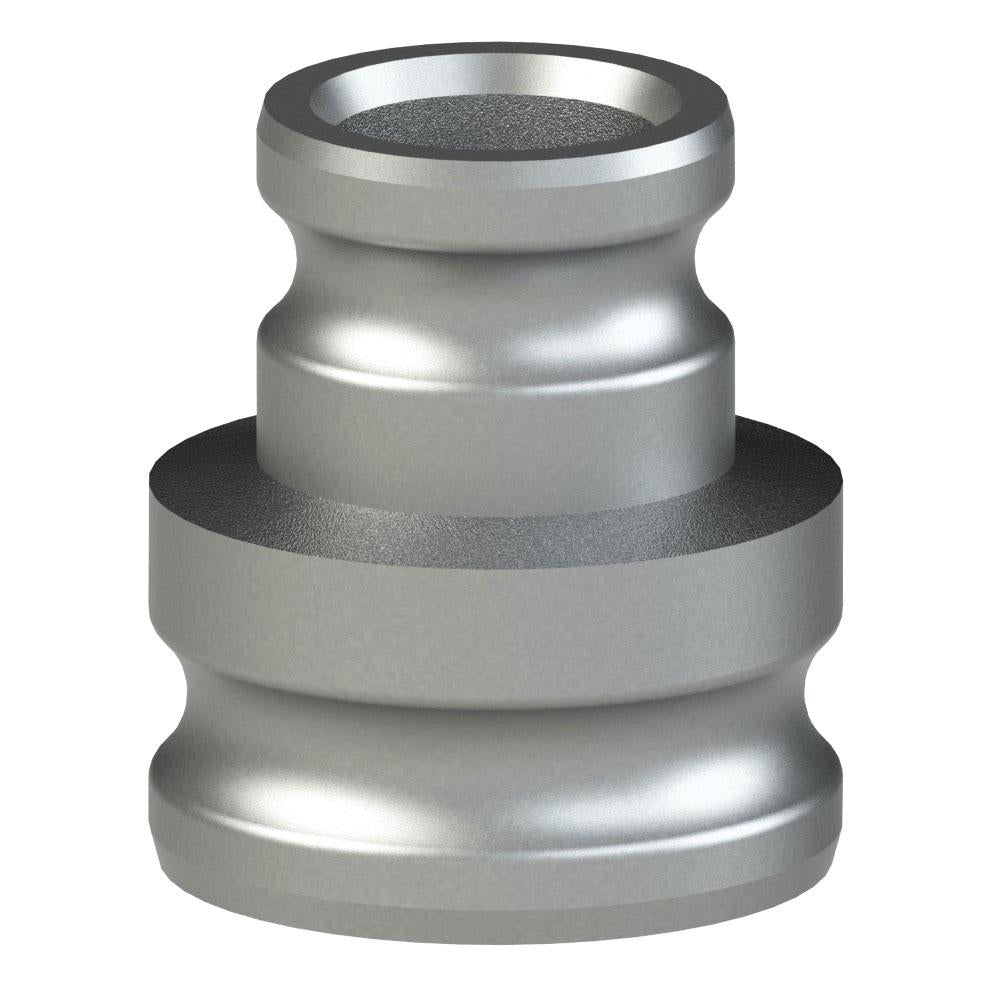

68282030 (SA20X30) by PT-Coupling | Reducing Cam & Groove Adapter | Spool Adapter | Type SA | 2" Adapter x 3" Adapter | Ductile Iron
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Ductile Iron
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $81.18 |
| 20–59 | $73.41 |
| 60+ | $64.77 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| SA20X20 | 68282020 | 2" | 2" | 250 PSI |
| SA20X30 | 68282030 | 2" | 3" | 200 PSI |
| SA30X30 | 68283030 | 3" | 3" | 200 PSI |
| SA40X40 | 68284040 | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
