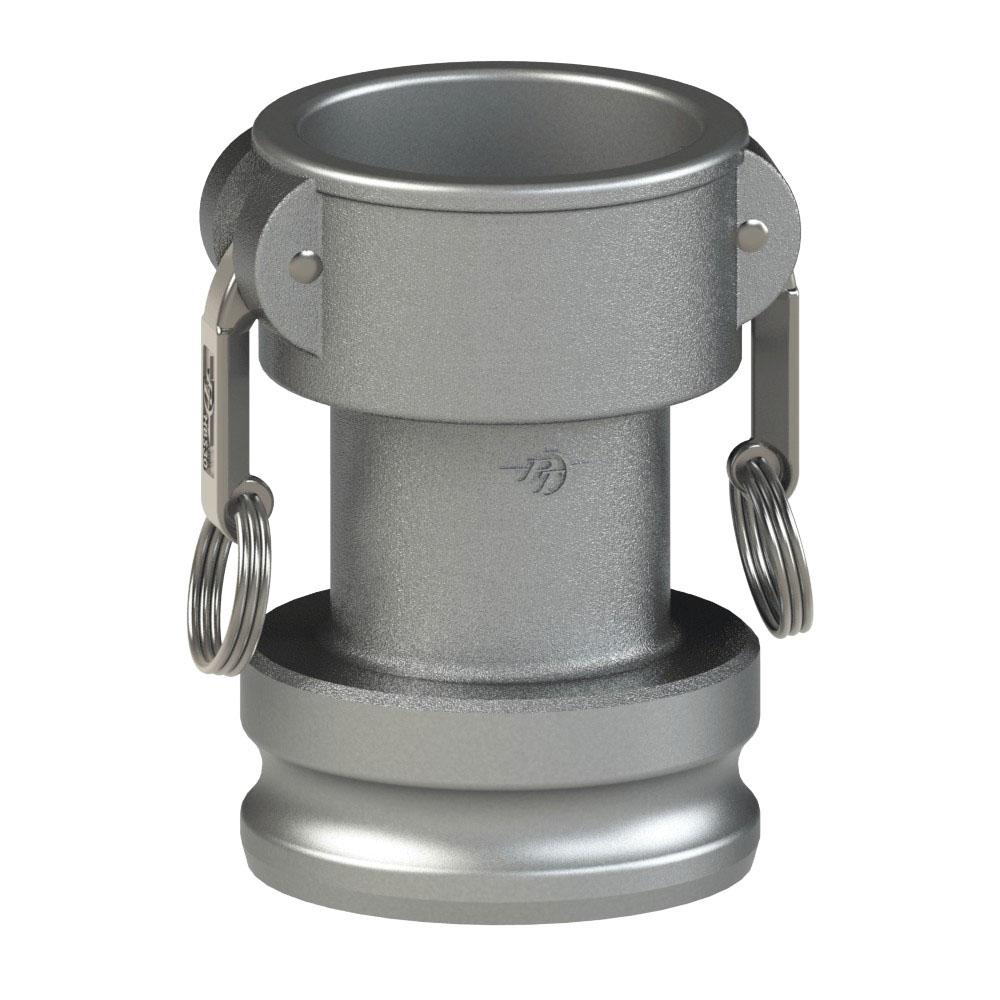

68263020 (30CX20A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 3" Coupler x 2" Adapter | Ductile Iron | Buna-N Seal
PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Ductile Iron | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $92.93 |
| 20–59 | $84.03 |
| 60+ | $74.15 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 20CX30A LONG | 68262030 | 2" | 3" | 200 PSI |
| 30CX20A LONG | 68263020 | 3" | 2" | 200 PSI |
| 30CX40A LONG | 68263040 | 3" | 4" | 150 PSI |
| 40CX30A LONG | 68264030 | 4" | 3" | 150 PSI |
| 50CX40A LONG | 68265040 | 5" | 4" | 75 PSI |
| 60CX40A LONG | 68266040 | 6" | 4" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
