| Applications: |
- Instrumentation, hydraulic and pneumatic systems.
|
| Advantages: |
- Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
|
| Used With: |
- Copper, aluminum, steel and plastic tubing where applicable.
|
| Material: |
- Brass bodies, steel handles except where noted.
- Polyline valves have brass bodies and brass handles.
|
| Pressure: |
- 150 psi maximum. (Does not include plastic tubing.)
|
| Temperature Range: |
- -65°F to +250°F (-53°C to +121°C) with metal tubing.
- For valves using compatible tubing, refer to the tubing temperature range.
|
| Conformance: |
- Designed for automotive and industrial use.
- Not intended for natural gas, LPG, nuclear or aircraft applications.
|
| Assembly Instructions: |
- Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.
|
|

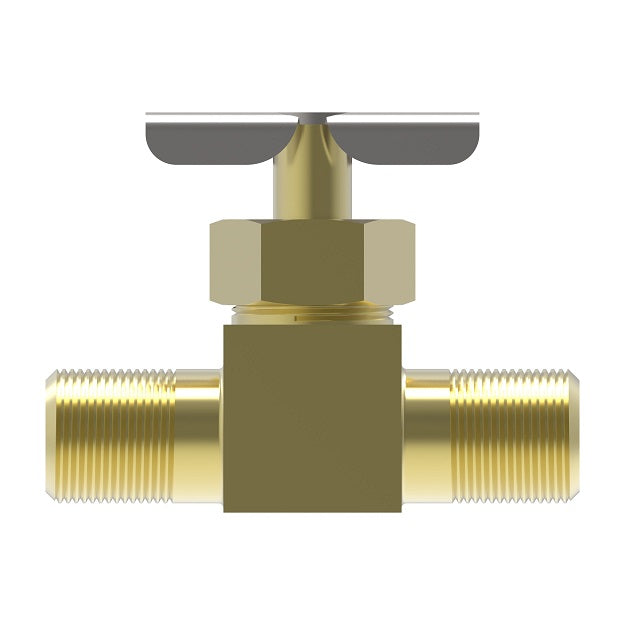

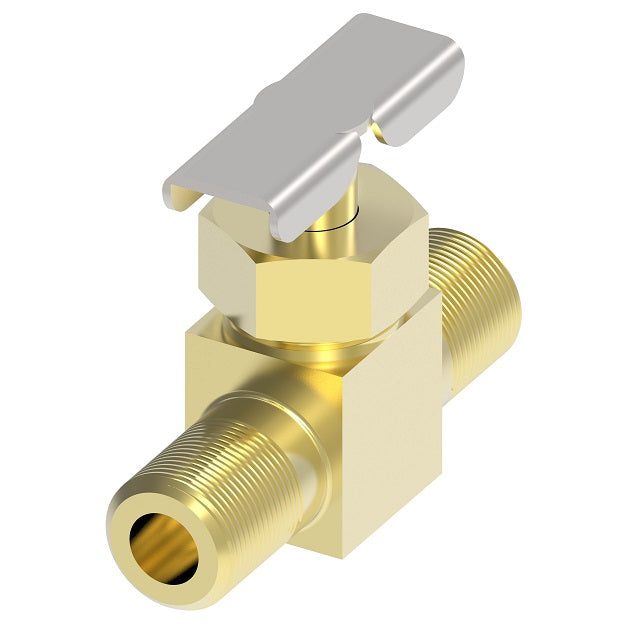

Brass
Part Number |
Male Pipe
Thread |
L |
M |
M1 |
| 6810 |
1/8" |
1.38" |
0.66" |
0.80" |
| 6815 |
1/4" |
1.71" |
1.08" |
1.23" |
"S" suffix designates Selfalign with nuts and sleeves.
