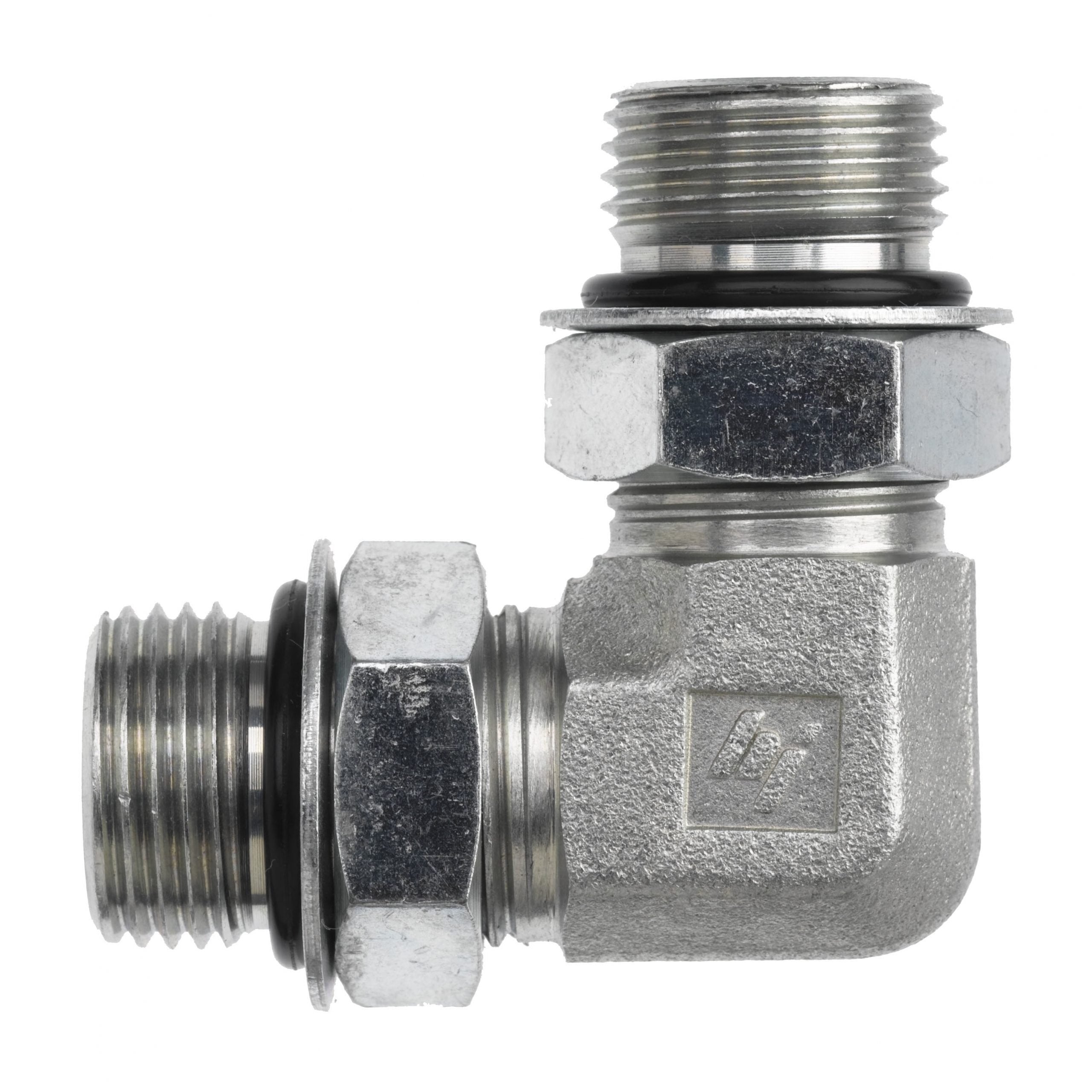

6807-12-12-NWO-SS by Brennan Inc. | -12 Male Adjustable O-Ring Boss x -12 Male Adjustable O-Ring Boss | 90° Elbow | Stainless Steel

Sale price$225.75

Brennan Inc.
Tube Fittings & Adapters: 6807-NWO - Male Adjustable O-Ring Boss x Male Adjustable O-Ring Boss 90° Elbow


Buy More, Save More!
Quantity Price Each
5–19 $212.21
20–59 $191.89
60+ $169.31
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Male O-Ring Boss
  • 3/4in Male O-Ring Boss
  • Some Ends Match
Material(s):
  • Stainless Steel
Part Number Material Tube O.D. B1 SAE ORB B2 SAE ORB B1 Drill B2 Drill M1 Length M2 Length C Hex C2 Hex Y Flats
6807-04-04-NWO-FG Forged Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 1.030" 1.030" 0.563" 0.563" 0.438"
6807-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.250" 1.250" 0.688" 0.688" 0.562"
6807-08-06-NWO-FG Forged Steel 1/2" 3/4-16" 9/16-18" 0.391" 0.297" 1.450" 1.340" 0.875" 0.688" 0.750"
6807-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.450" 1.450" 0.875" 0.875" 0.750"
6807-10-08-NWO-FG Forged Steel 5/8" 7/8-14" 3/4-16" 0.484" 0.391" 1.700" 1.540" 1.000" 0.875" 0.875"
6807-10-10-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 0.484" 0.484" 1.700" 1.700" 1.000" 1.000" 0.875"
6807-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.940" 1.940" 1.250" 1.250" 1.062"
6807-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 2.050" 2.050" 1.500" 1.500" 1.312"
6807-20-20-NWO-FG Forged Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 2.250" 2.250" 1.875" 1.875" 1.625"
6807-24-24-NWO-FG Forged Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 2.390" 2.390" 2.125" 2.125" 1.875"
6807-08-08-NWO-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.450" 1.450" 0.875" 0.875" 0.750"
6807-12-12-NWO-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.940" 1.940" 1.250" 1.250" 1.062"
