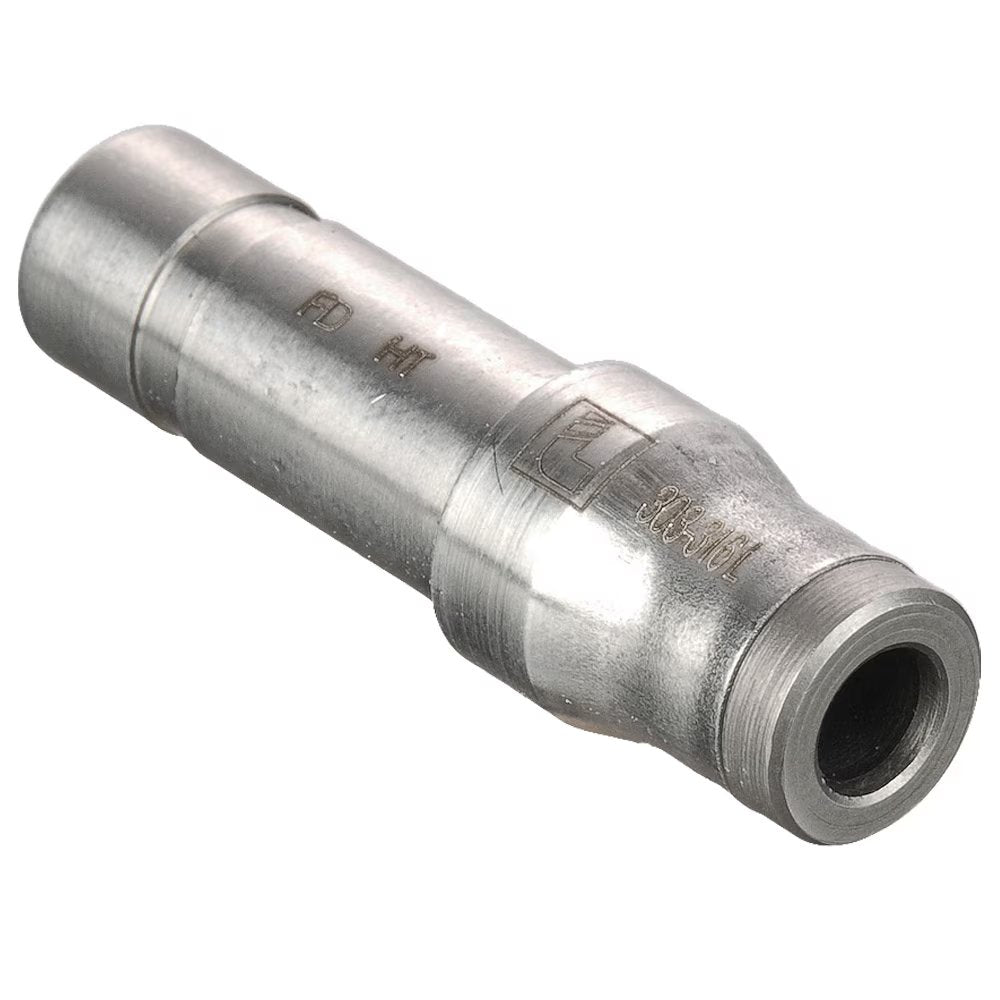

67PLS-6M-8M by Parker | Prestolok PLS Push-to-Connect Fittings | Plug-In Fitting | 6 mm to 8 mm Tube Reducer | 42 mm Length | 12 mm Width | Straight | Stainless Steel | Pack of 2
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:67PLS Tube Reducer - Metric
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $112.70 |
| 30–59 | $101.91 |
| 60+ | $89.92 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | G | L | L1 | L2 | L3 |
| 67PLS-4M-6M | 4 mm | 6 mm | 10 mm | 35 mm | 19.0 mm | 19 mm | 16 mm |
| 67PLS-4M-8M | 4 mm | 8 mm | 10 mm | 34 mm | 17.0 mm | 20 mm | 14 mm |
| 67PLS-6M-8M | 6 mm | 8 mm | 12 mm | 42 mm | 24.0 mm | 23 mm | 19 mm |
| 67PLS-6M-10M | 6 mm | 10 mm | 12 mm | 42 mm | 19.0 mm | 25 mm | 17 mm |
| 67PLS-8M-10M | 8 mm | 10 mm | 15 mm | 45 mm | 22.5 mm | 25 mm | 19 mm |
| 67PLS-8M-12M | 8 mm | 12 mm | 15 mm | 43 mm | 20.0 mm | 26 mm | 17 mm |
| 67PLS-10M-12M | 10 mm | 12 mm | 17 mm | 51 mm | 23.0 mm | 26 mm | 25 mm |
