BS067A - #67a Beltservice 2 Ply 150 Tan Wedgegrip Diamond top x Bare Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Packaged Goods Bagged Goods 3 ply No. 67b is used for sanding applications.
Features:

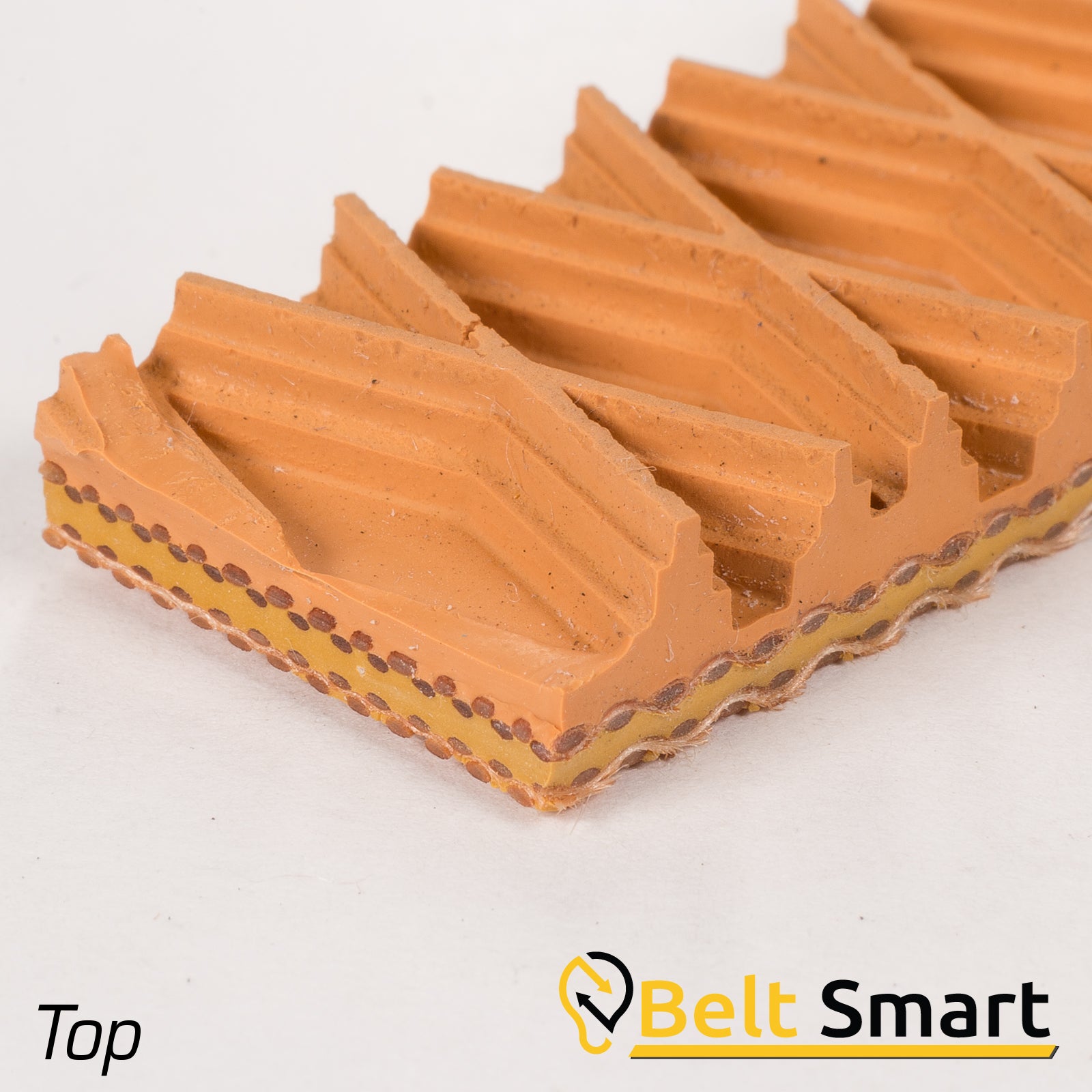

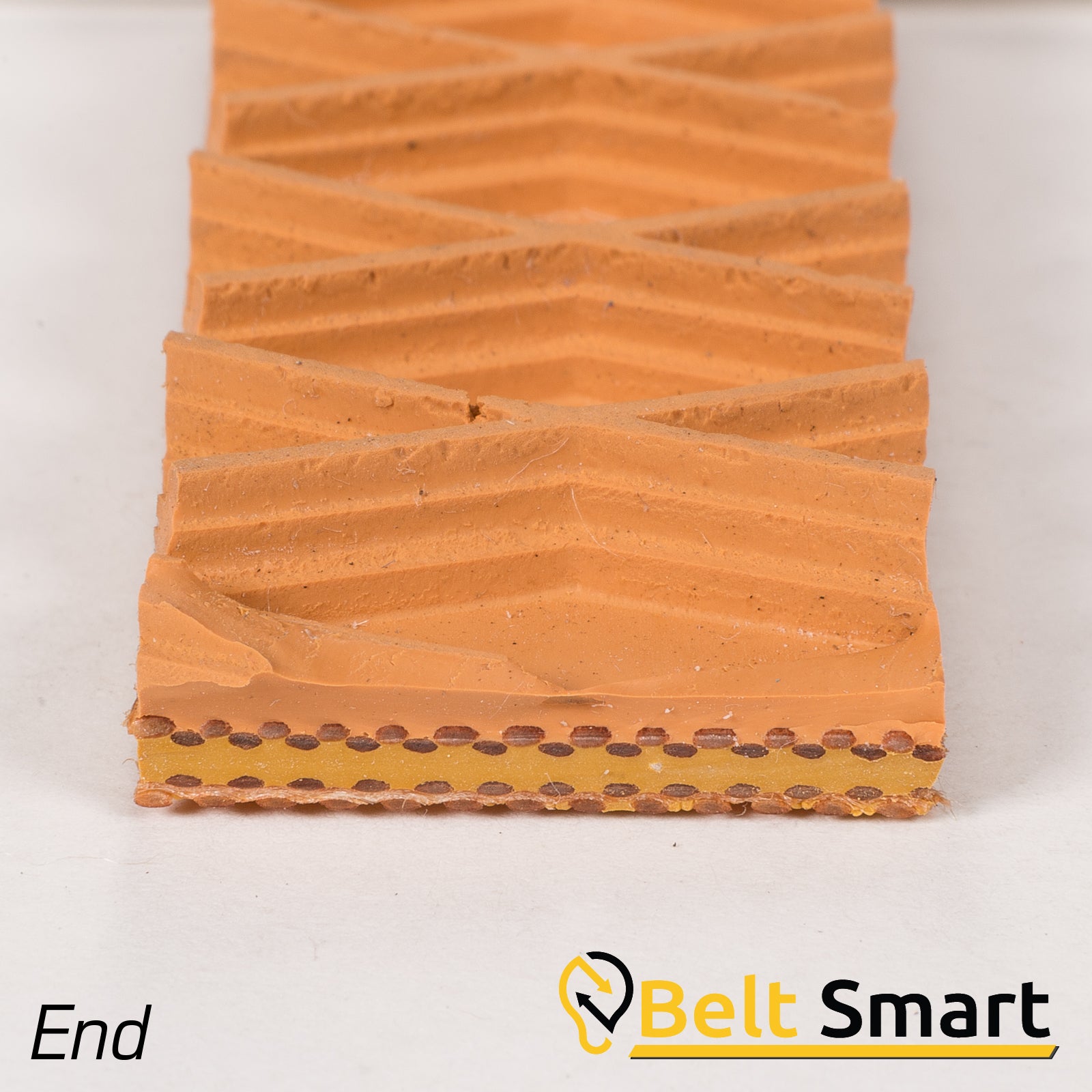

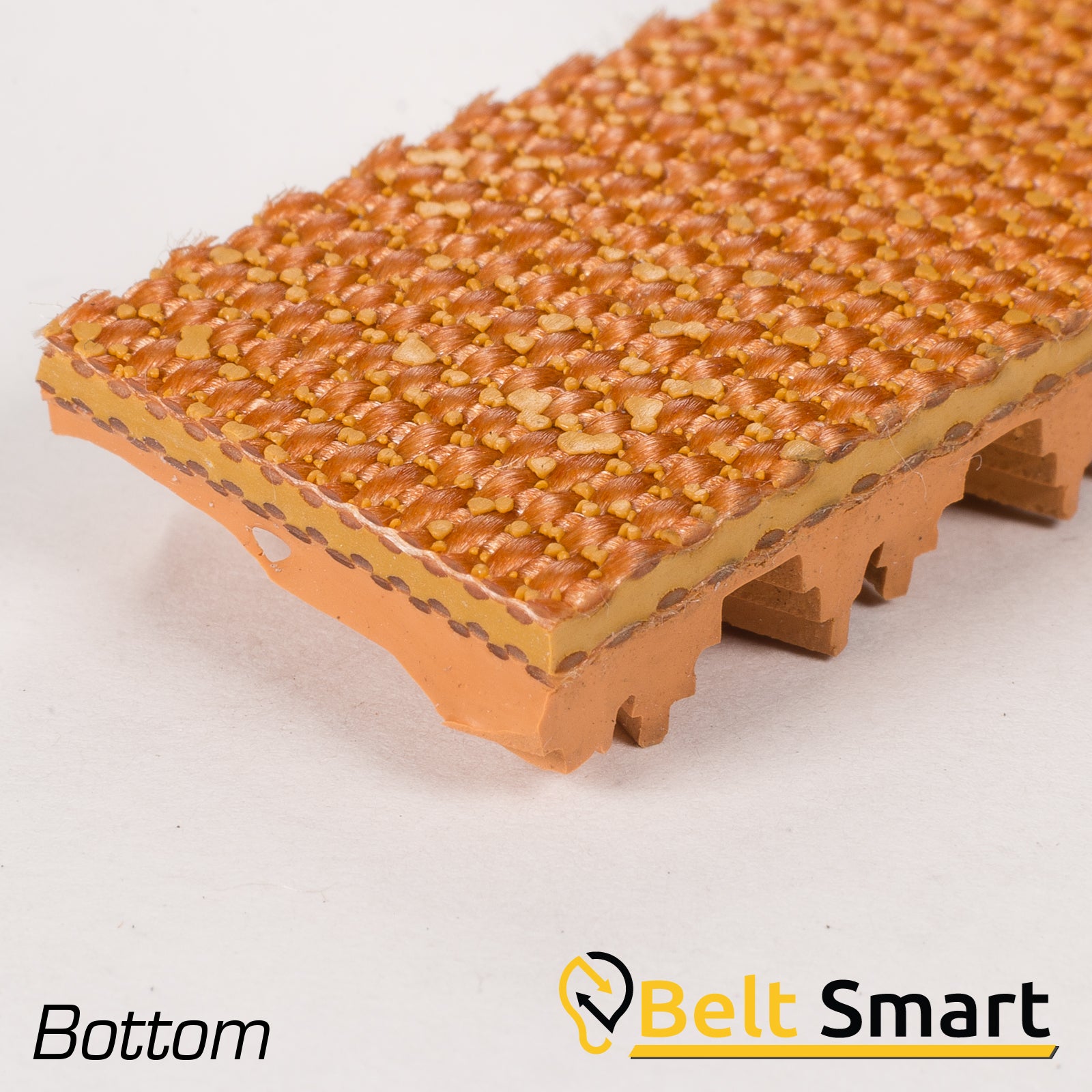

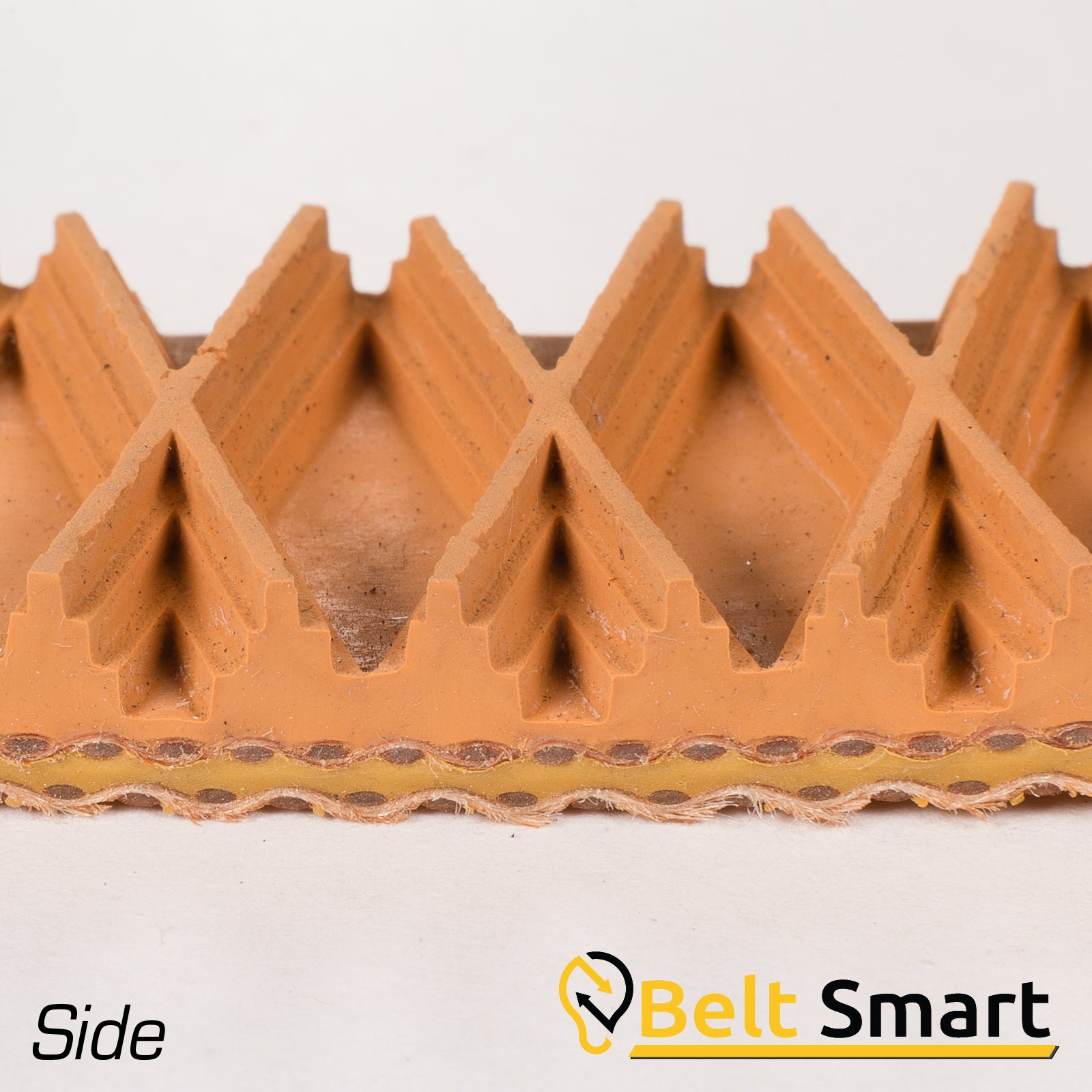

Belts are constructed of plies of high-strength flexible synthetic carcass and feature a diamond-top surface molded in a diagonal rib design with an unusually high coefficient of friction; for conveying packaged and bagged goods up the very steepest of inclines. Tan Wedgegrip is non-marking.

	2 Ply 150 Black Wedgegrip x Bare Pt No.: 67	2 Ply 150 Tan Wedgegrip x Bare Pt No.: 67a	3 Ply 225 Tan Wedgegrip x Bare Pt No.: 67b
Thickness	9/32"	9/32"	5/16"
Covers	Diamond Stepped Walls x Bare
Carcass	50 lbs./Ply Polyester
Working Tension per Inch Width	100 lbs.	100 lbs.	150 lbs.
Approx. Weight Lbs. Per Inch Width	.100 lbs.	.100 lbs.	.111 lbs.
Min. Pulley Diameter	3"	3"	4"
Temperature Range	-40 deg. F / 250 deg. F
Clipper Lace	#1	#1	#1
Alligator Lace	#1	#1	#7
Flexco Hinged	#125	#125	#125
