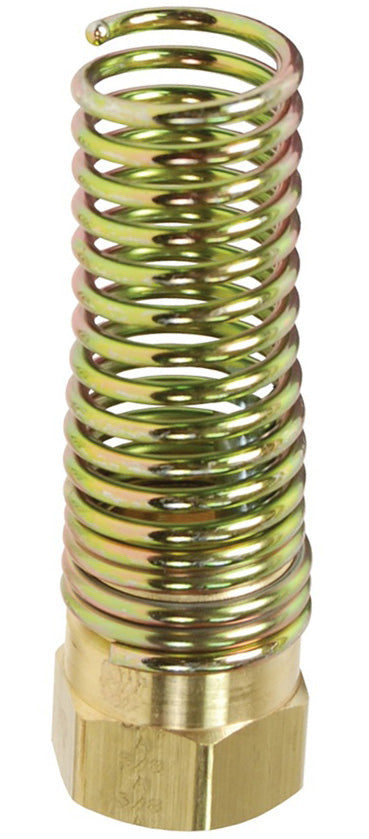

67RBSG-08 by Dixon Valve | Air Brake Fitting for Rubber Hose | Hose Nut with Attached Spring | 1/2" Hose Size | 3.50" Length | Brass Alloy 360

67RBSG-08 by Dixon Valve | Air Brake Fitting for Rubber Hose | Hose Nut with Attached Spring | 1/2" Hose Size | 3.50" Length | Brass Alloy 360

Sale price$12.87

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Hose Nut with Attached Springs

For use with SAEJ1402 air brake hose in making hose assemblies
Buy More, Save More!
Quantity Price Each
10–39 $12.10
40–79 $10.94
80+ $10.30
Discounts applied in cart/checkout.
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Length
67RBSG-06 3/8" 3.55"
67RBSG-08 1/2" 3.50"

Product Data:

Shape:

No Orientation

Material(s):
  • Brass
