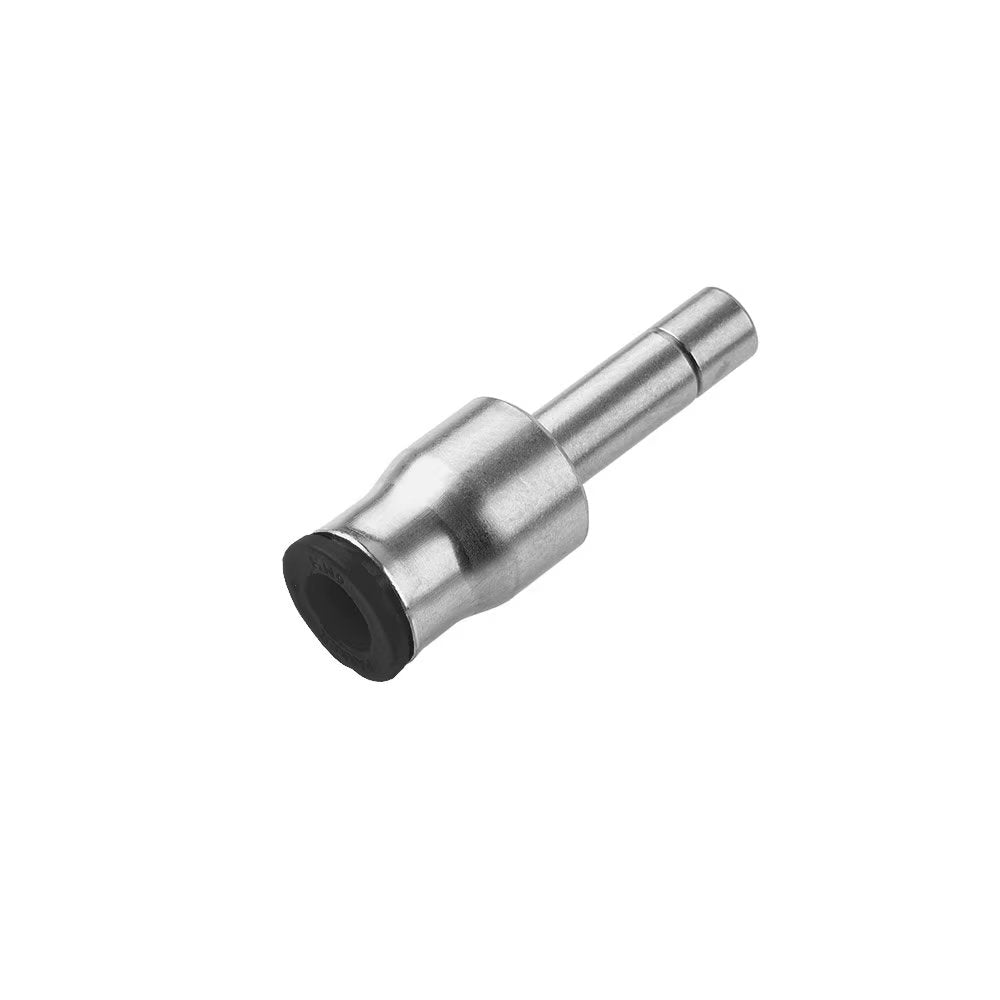

67PLP-5/32-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube Reducer | 5/32" Tube Size x 1/4" Tube Size | 1.46" Length | .81" Length 1 | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:67PLP – Tube Reducer – Inch
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $88.51 |
| 20–59 | $80.04 |
| 60+ | $70.62 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | Length (L) | Length (L1) |
| 67PLP-5/32-4 | 5/32" | 1/4" | 1.46" | .81" |
| 67PLP-5/32-6 | 5/32" | 3/8" | 1.67" | 1.02" |
| 67PLP-5-6 | 5/16" | 3/8" | 1.83" | 1.06" |
| 67PLP-5-8 | 5/16" | 1/2" | 1.97" | 1.20" |
| 67PLP-4-6 | 1/4" | 3/8" | 1.75" | 1.07" |
| 67PLP-4-8 | 1/4" | 1/2" | 1.85" | 1.17" |
| 67PLP-6-8 | 3/8" | 1/2" | 1.97" | 1.20" |
