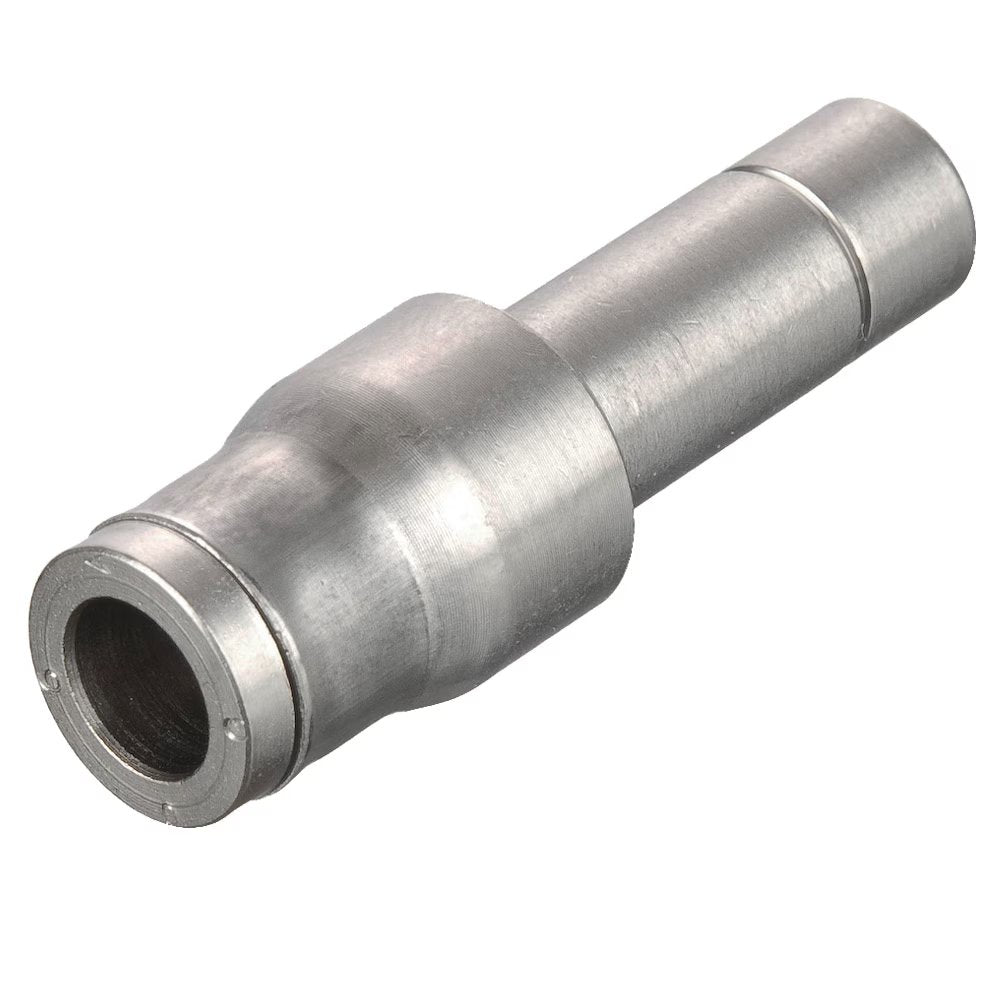

67PLM-6M-10M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube Reducer | 10 mm to 6 mm Tube Size | 43.50 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:67PLM Plug-In Reducer Metric
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | L | L1 | L2 |
| 67PLM-4M-6M | 4 mm | 6 mm | 34.50 mm | 19.00 mm | 17.50 mm |
| 67PLM-4M-8M | 4 mm | 8 mm | 35.50 mm | 20.00 mm | 18.00 mm |
| 67PLM-6M-8M | 6 mm | 8 mm | 37.00 mm | 20.00 mm | 19.50 mm |
| 67PLM-6M-10M | 6 mm | 10 mm | 43.50 mm | 25.00 mm | 21.00 mm |
| 67PLM-8M-10M | 8 mm | 10 mm | 44.00 mm | 25.00 mm | 21.50 mm |
| 67PLM-8M-12M | 8 mm | 12 mm | 45.00 mm | 26.00 mm | 21.50 mm |
| 67PLM-10M-12M | 10 mm | 12 mm | 50.00 mm | 26.00 mm | 26.50 mm |
| 67PLM-12M-14M | 12 mm | 14 mm | 53.00 mm | 28.00 mm | 28.50 mm |
