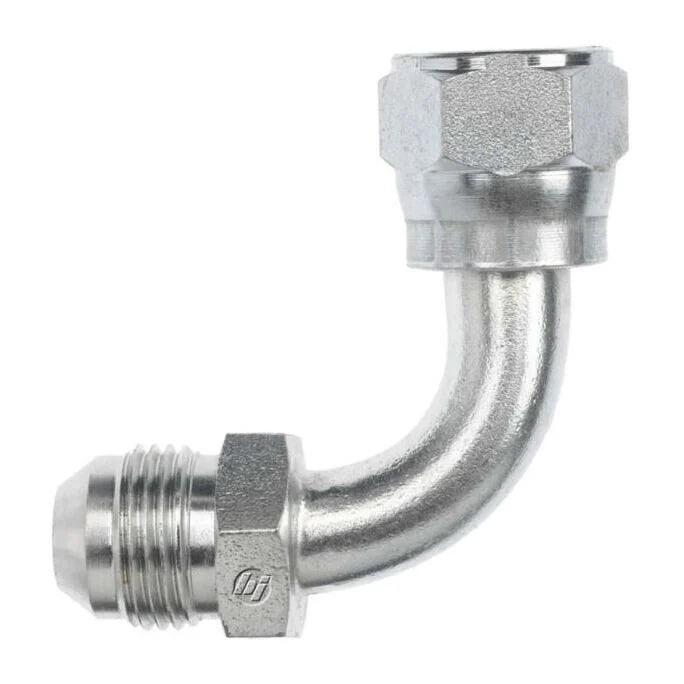

6701-32-32 by Brennan Inc. | -32 Male JIC x -32 Female JIC Swivel | Swept 90° Elbow | Steel

6701-32-32 by Brennan Inc. | -32 Male JIC x -32 Female JIC Swivel | Swept 90° Elbow | Steel

Sale price$335.11
Buy more, save moreDiscounts applied in cart/checkout.
Part Number Material Tube O.D. B1 SAE37° B2 SAE37° M Length L Length C1 Hex C2 Hex
6701-16-16 Steel 1" 1-5/16-12" 1-5/16-12" 3.100" 3.150" 1.375" 1.500"
6701-20-20 Steel 1-1/4" 1-5/8-12" 1-5/8-12" 2.750" 3.750" 1.693" 2.000"
6701-24-24 Steel - - - - - - -
6701-32-32 Steel 2" 2-1/2-12" 2-1/2-12" 5.790" 4.840" 2.750" 2.875"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 2in Male JIC
  • 2in Female JIC
  • Some Ends Match
Material(s):
  • Steel

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
