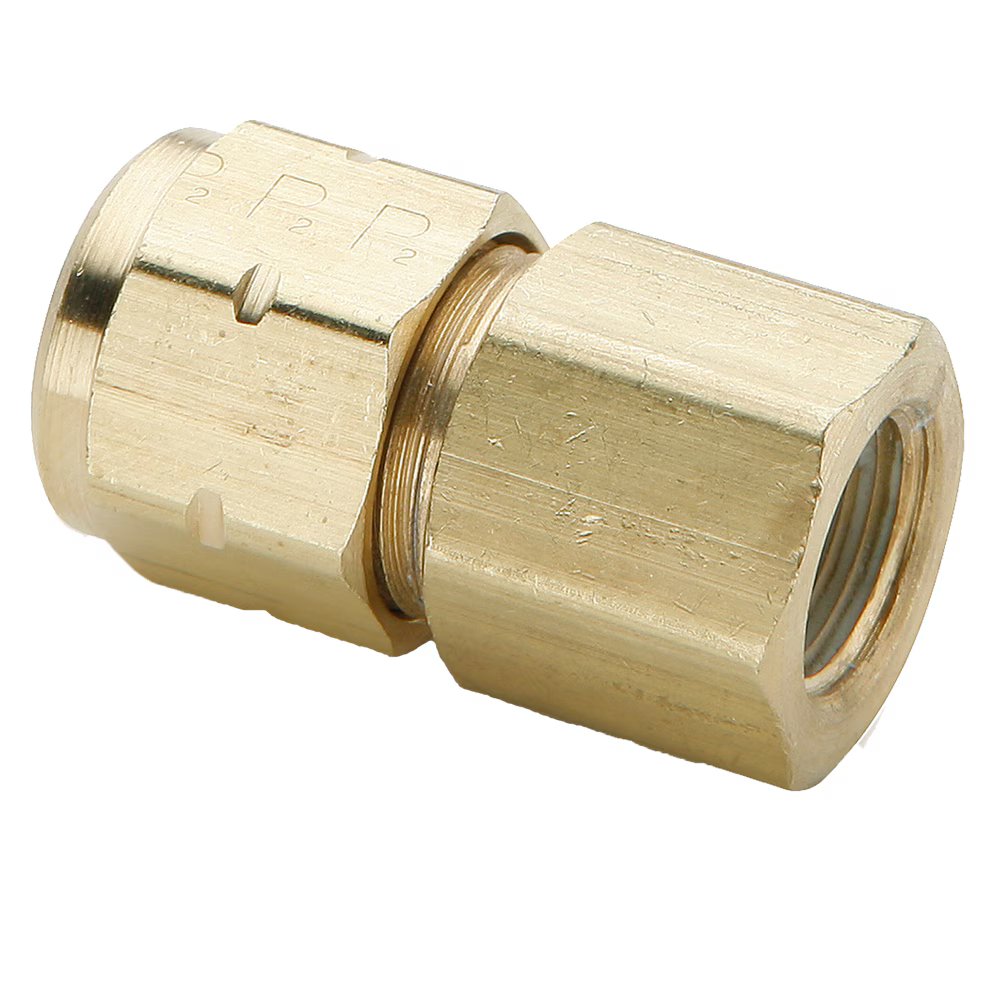

66VL-4-2 by Parker | Vibra-Lok Fittings | 1/4" Tube Size Connector x 1/8" Female Pipe Thread | 9/16" Hex | 1.09" Length | Straight | Brass | Pack of 25

66VL-4-2 by Parker | Vibra-Lok Fittings | 1/4" Tube Size Connector x 1/8" Female Pipe Thread | 9/16" Hex | 1.09" Length | Straight | Brass | Pack of 25

Sale price$320.13

by Parker Hannifin
Vibra-Lok Fittings:Female Connector 66VL

Package Quantity: 25 Units

Buy More, Save More!
Quantity Price Each
5–14 $300.92
15–29 $272.11
30+ $240.10
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Vibra-Lok
Series:
  • 66VL Series
Shape:

Straight
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Pipe Thread Hex (C) L M Flow Diameter (D)
66VL-4-2 1/4" 1/8" 9/16" 1.09" .78" .188"
66VL-5-4 5/16" 1/4" 11/16" 1.32" .97" .250"
