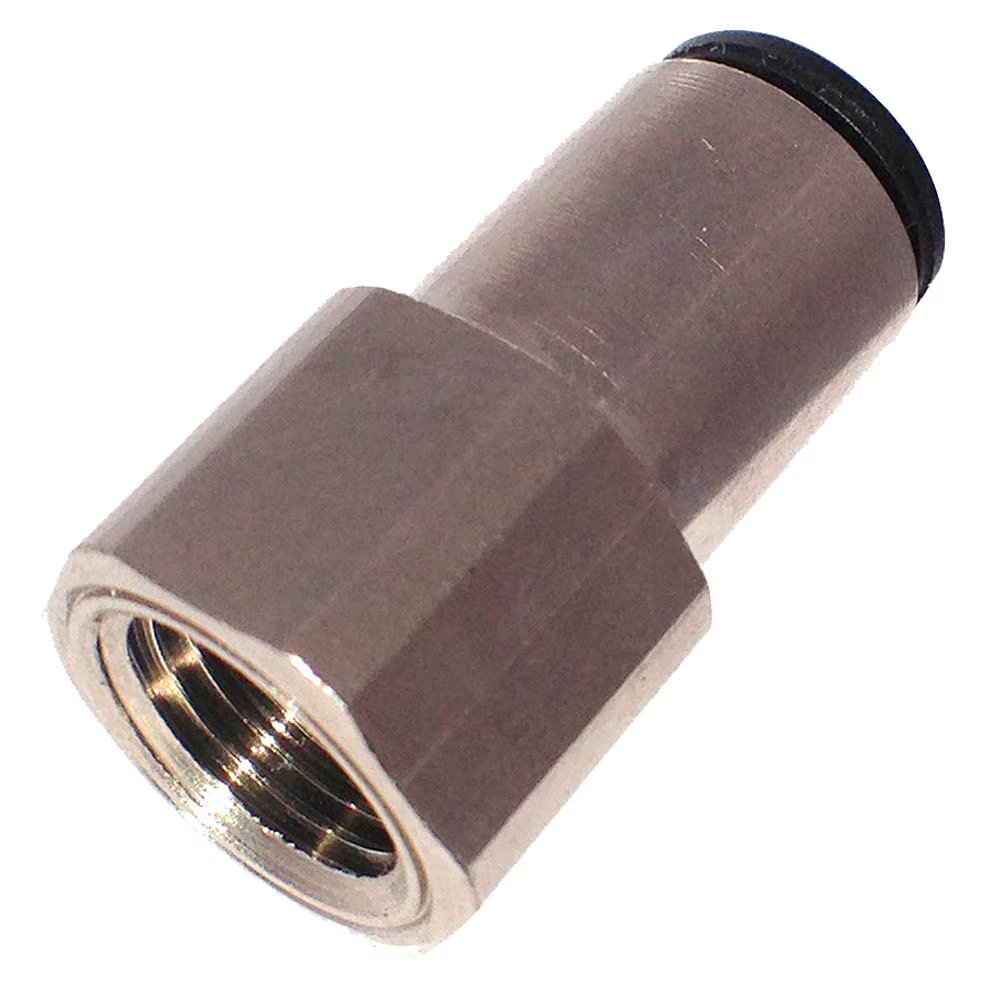

66LF-6-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 3/8" Connector x 1/8" Female NPT Thread | .37" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:66LF Female Connector – NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $95.49 |
| 20–59 | $86.35 |
| 60+ | $76.19 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT | F | G | H | E |
| 66LF-2-2 | 1/8" | 1/8" | 13 mm | .43" | .87" | .37" |
| 66LF-2-4 | 1/8" | 1/4" | 16 mm | .43" | 1.05" | .55" |
| 66LF-4M-2 | 5/32" | 1/8" | 13 mm | .35" | .89" | .37" |
| 66LF-4M-4 | 5/32" | 1/4" | 16 mm | .33" | 1.06" | .55" |
| 66LF-4-2 | 1/4" | 1/8" | 13 mm | .42" | .98" | .37" |
| 66LF-4-4 | 1/4" | 1/4" | 16 mm | .42" | 1.16" | .55" |
| 66LF-8M-2 | 5/16" | 1/8" | 13 mm | .53" | 1.14" | .37" |
| 66LF-8M-4 | 5/16" | 1/4" | 16 mm | .53" | 1.32" | .55" |
| 66LF-6-2 | 3/8" | 1/8" | 16 mm | .61" | 1.22" | .37" |
| 66LF-6-4 | 3/8" | 1/4" | 16 mm | .61" | 1.40" | .55" |
| 66LF-6-6 | 3/8" | 3/8" | 22 mm | .61" | 1.52" | .65" |
| 66LF-8-4 | 1/2" | 1/4" | 20 mm | .84" | 1.73" | .47" |
| 66LF-8-6 | 1/2" | 3/8" | 22 mm | .85" | 1.81" | .65" |
| 66LF-8-8 | 1/2" | 1/2" | 24 mm | .85" | 1.93" | .77" |
